M28R
Exceptional Control.
Ruthless Speed.
Bold. Beautiful.
The DCB M28R is a precision-built, adrenaline-pumping catamaran that delivers serious performance in a compact package. As the most approachable model in the outboard lineup, it brings exotic looks, race-inspired handling, and the signature DCB attention to detail that stands out on any dock and dominates on the water.

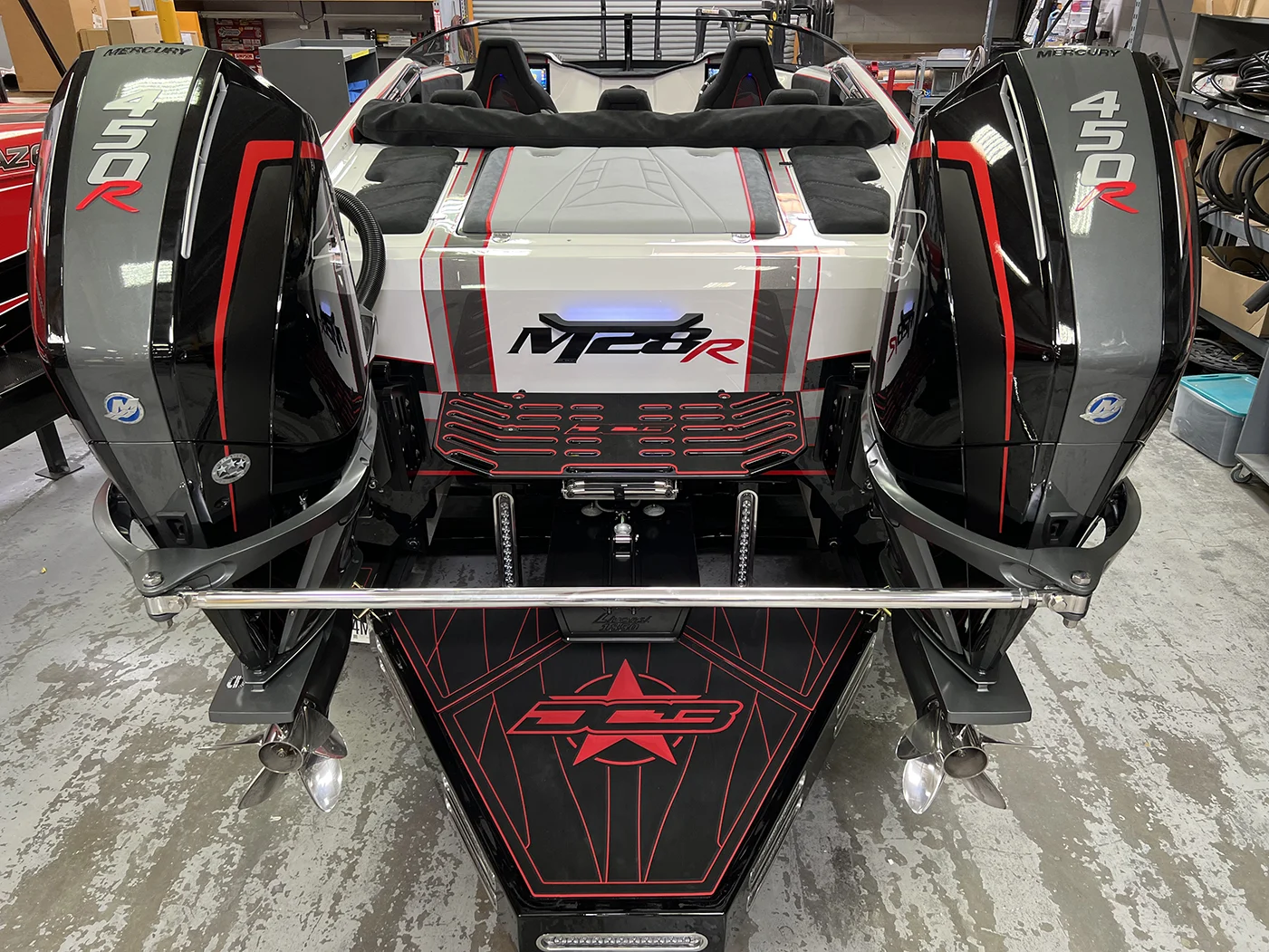

One of its standout features is the integrated rear sun lounge—perfect for relaxing at the dock or during a calm cruise. With extra storage tucked underneath, it keeps your gear organized while maintaining a clean, ready-for-action cockpit. The M28R proves that you don’t need a massive footprint to make a bold impression.
Raw Power

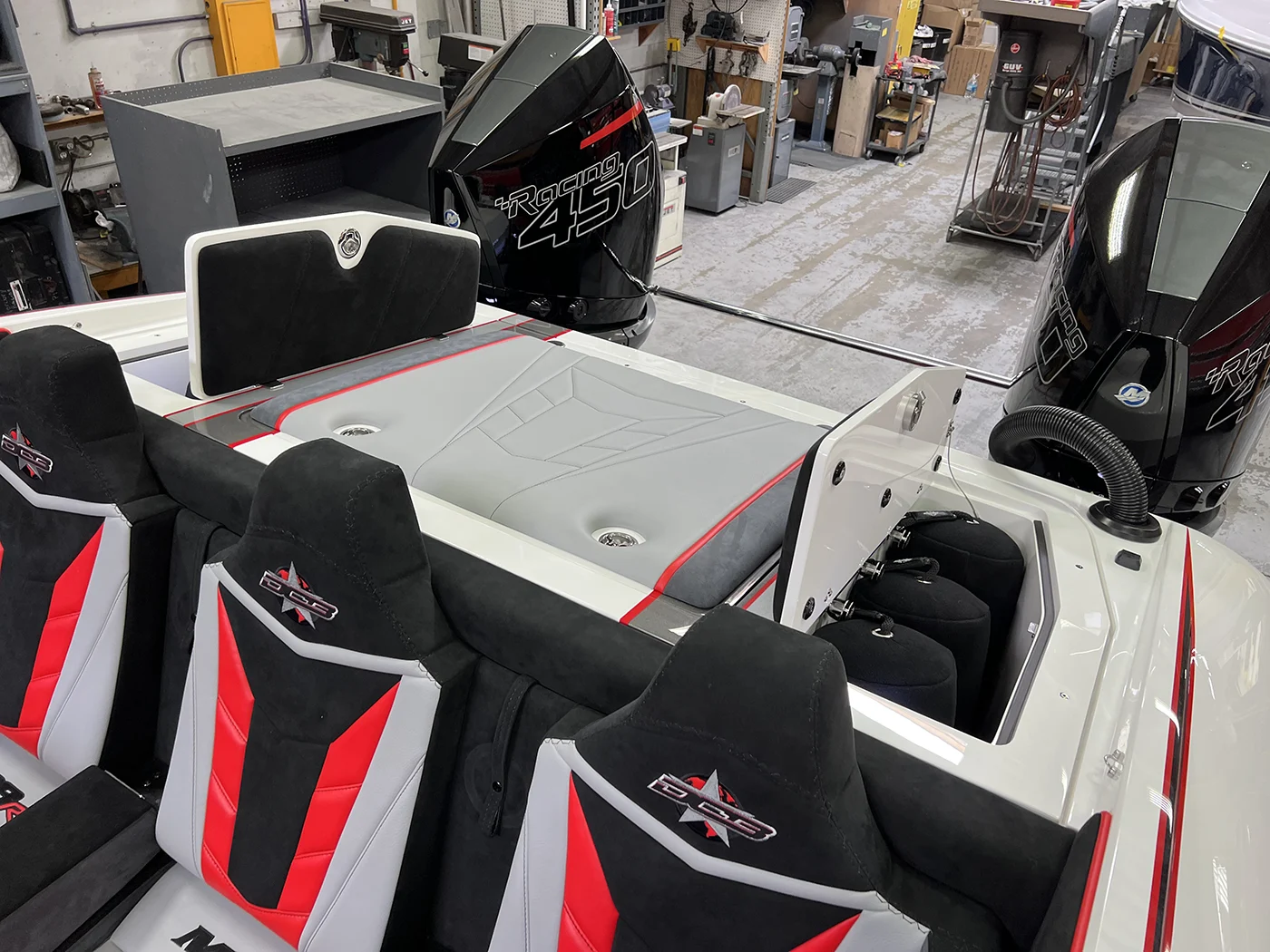

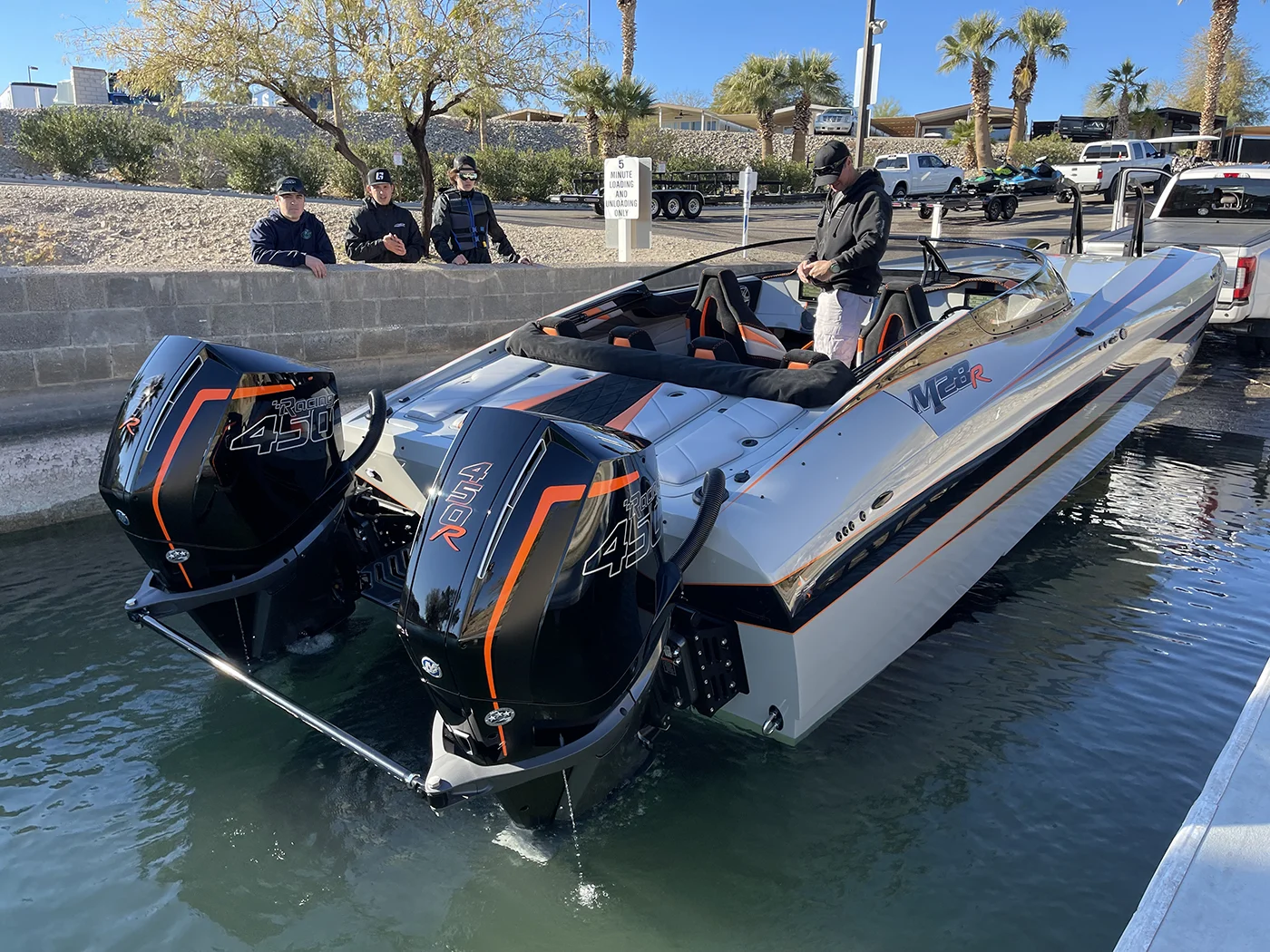

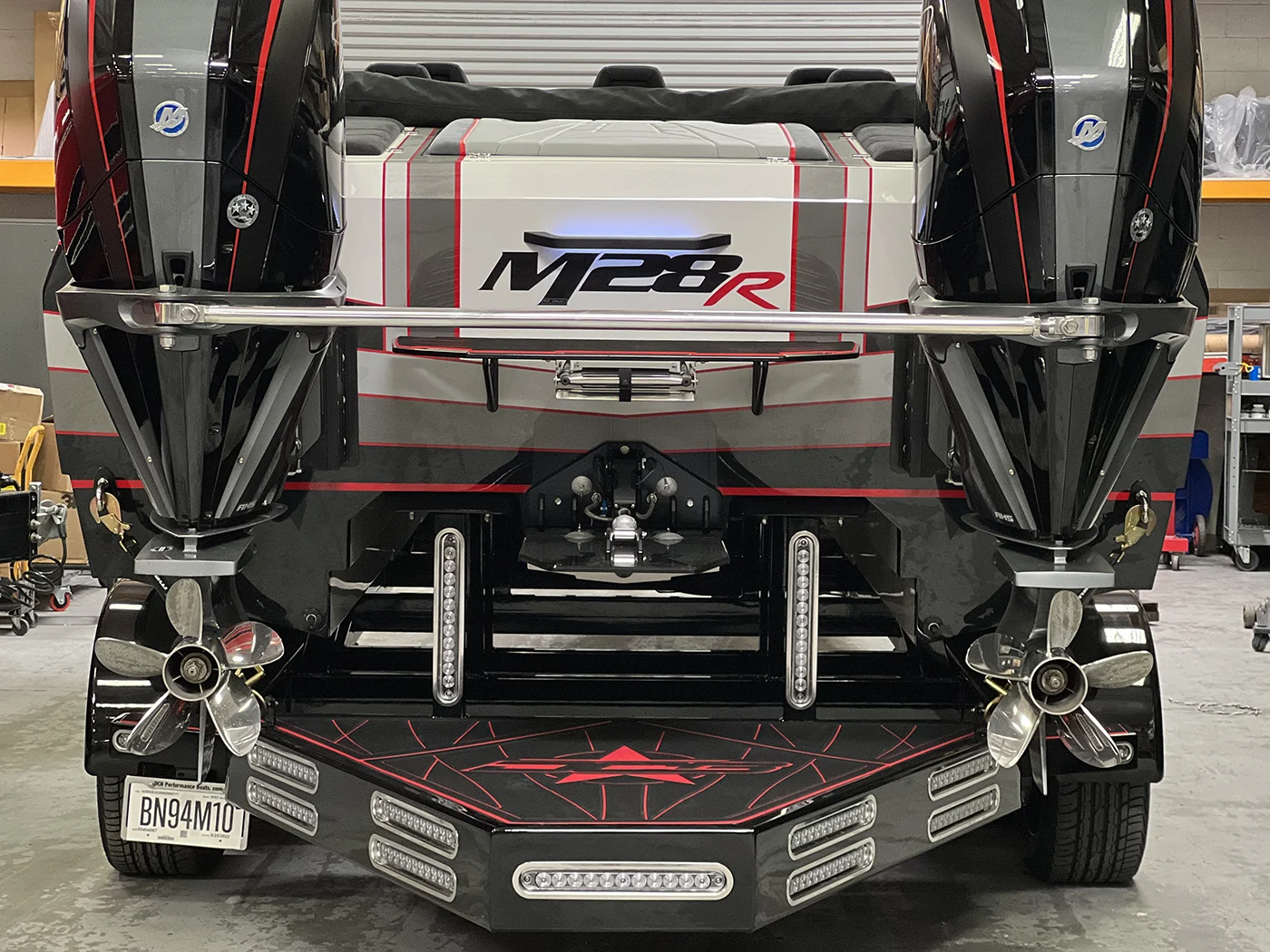

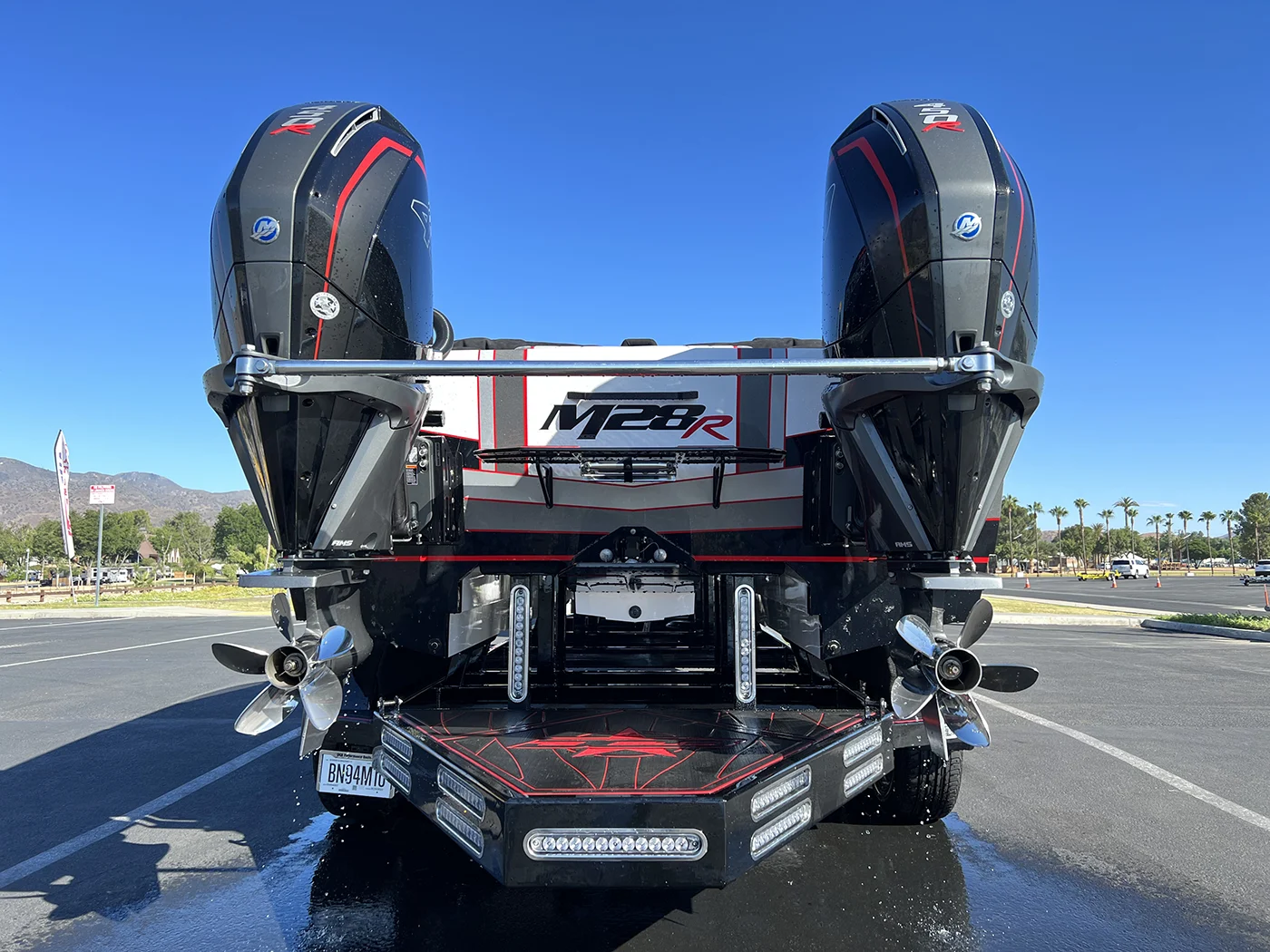

Powered exclusively by Mercury Racing outboards, the M28R can be equipped with your choice of twin 300R, 400R, or the supercharged 500R engines—delivering explosive acceleration, razor-sharp handling, and the kind of top-end speed that defines DCB performance. Whether carving up glassy lakes or running wide open across big water, the M28 delivers a pure, visceral driving experience every time you push the throttles forward.
Expertly

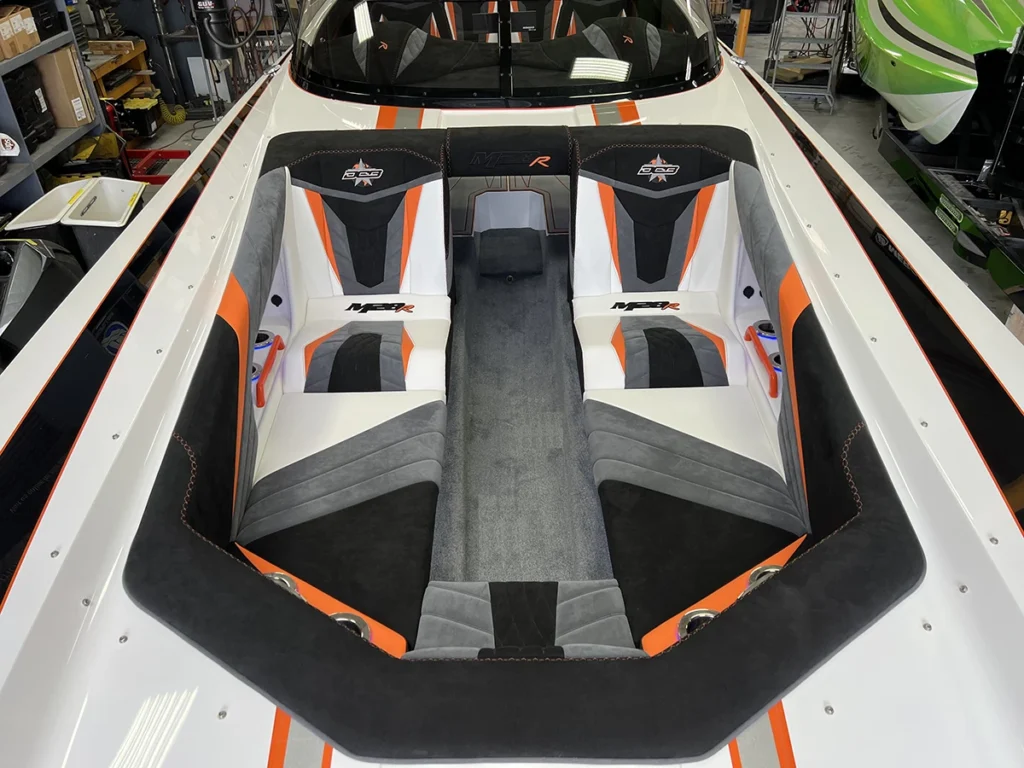

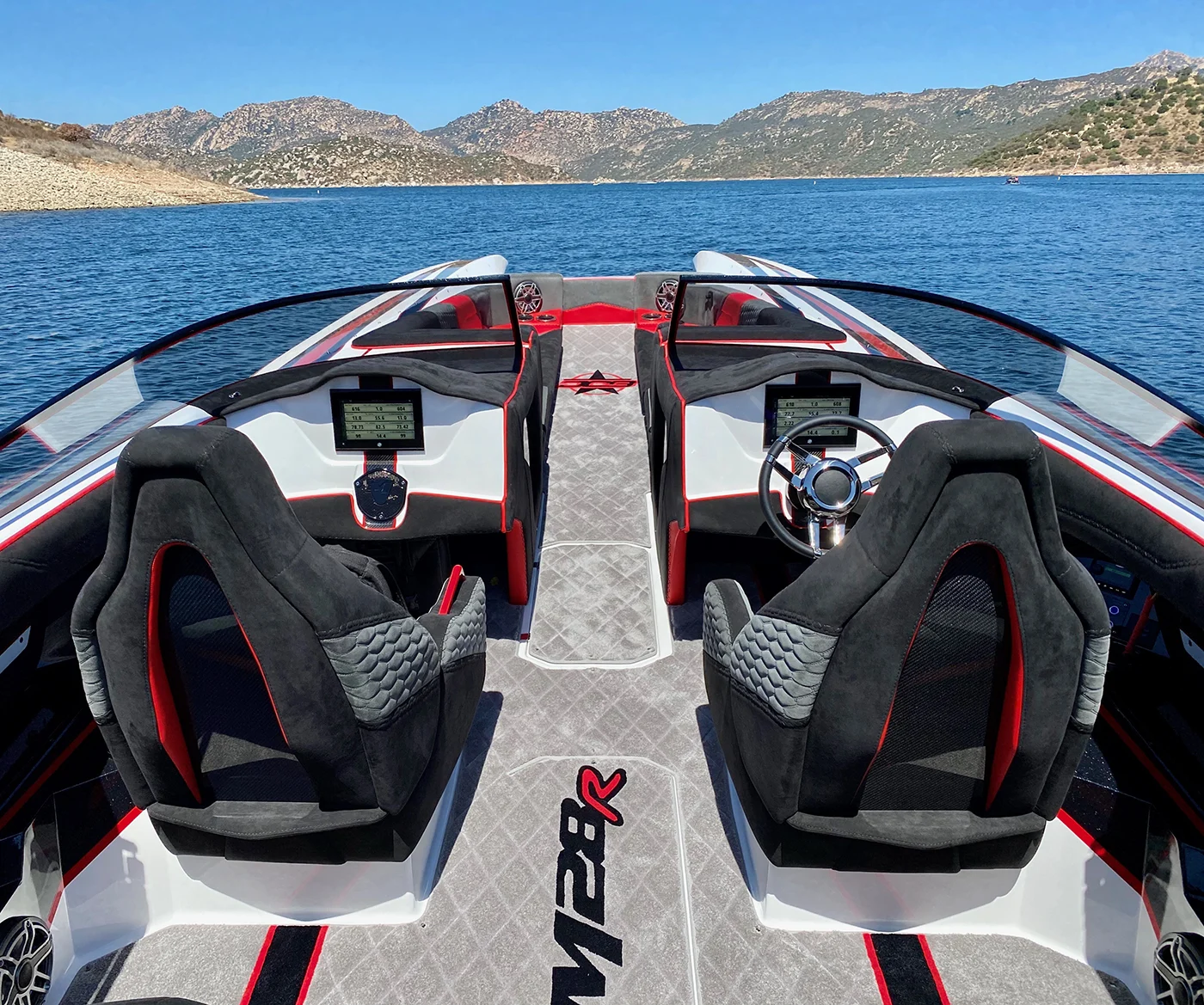

The M28’s sleek wraparound windshield and six-person seating configuration reflect DCB’s obsessive attention to comfort, style, and detail. From its advanced composite lamination to its signature gelcoat and interior finish, the M28R embodies the relentless pursuit of perfection that defines DCB.
Small in footprint, massive in presence—the M28 isn’t just a boat. It’s your ticket to the world of DCB: a family of super cats where performance meets prestige, and every throttle push is a statement.

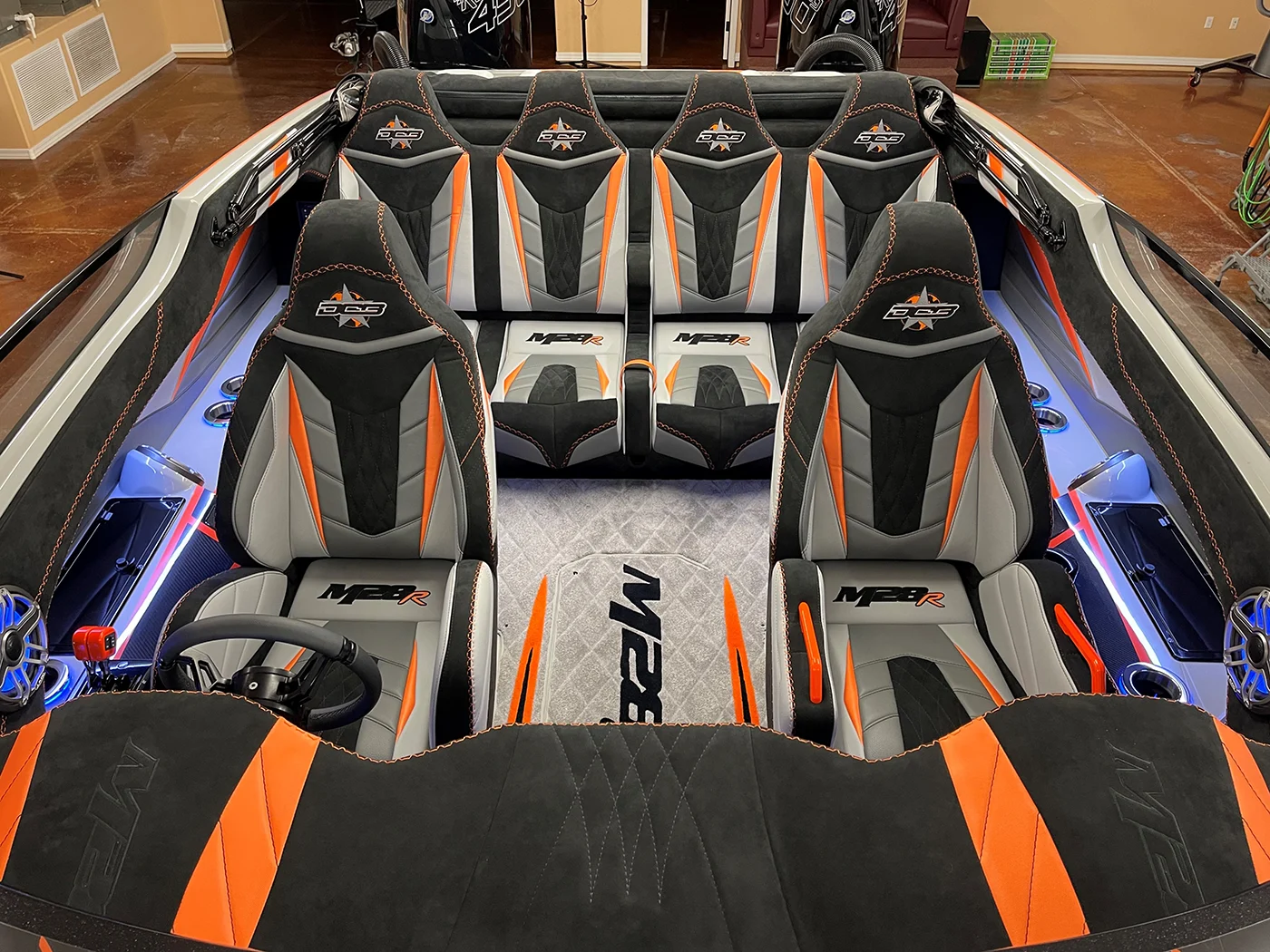

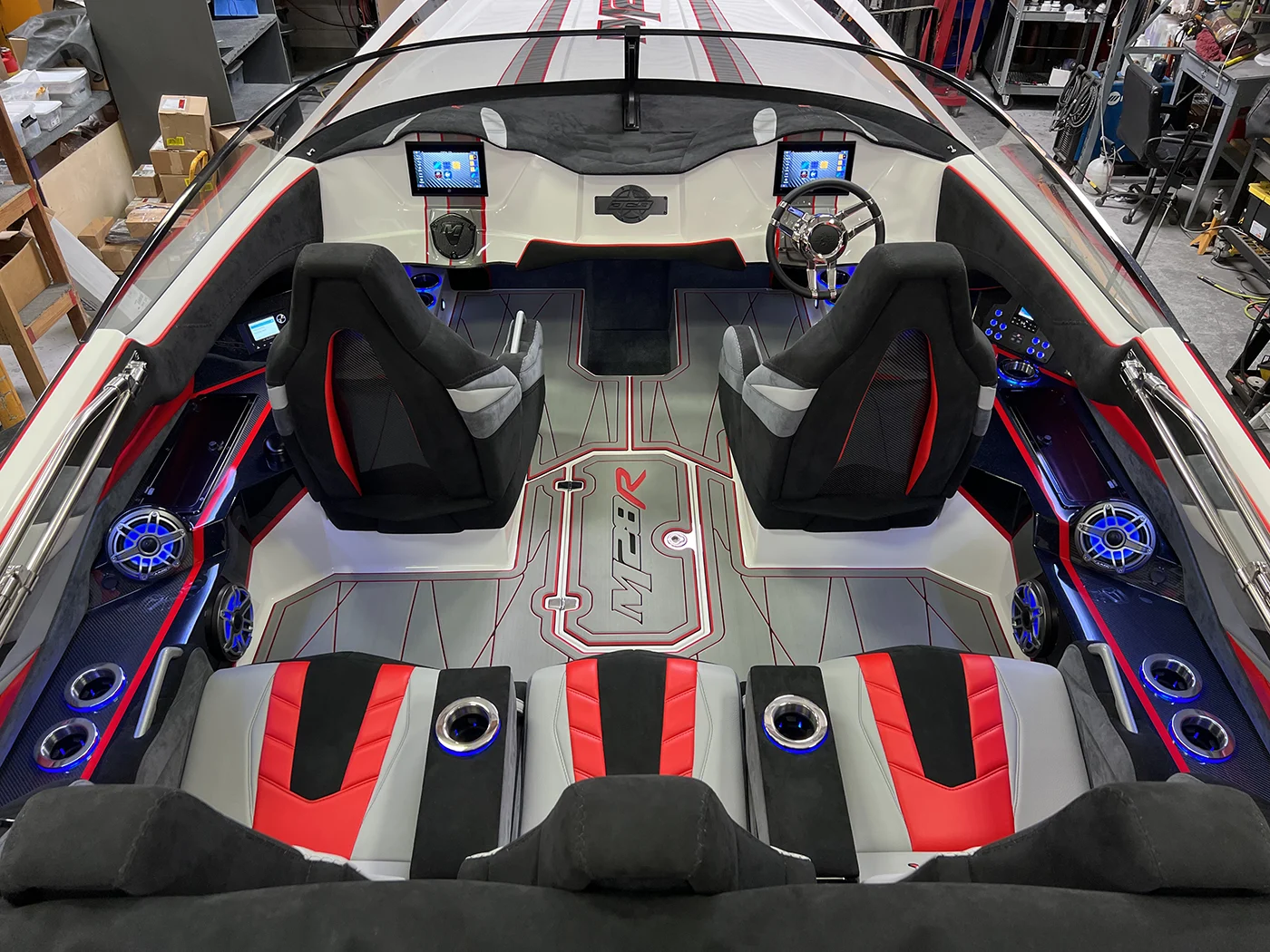

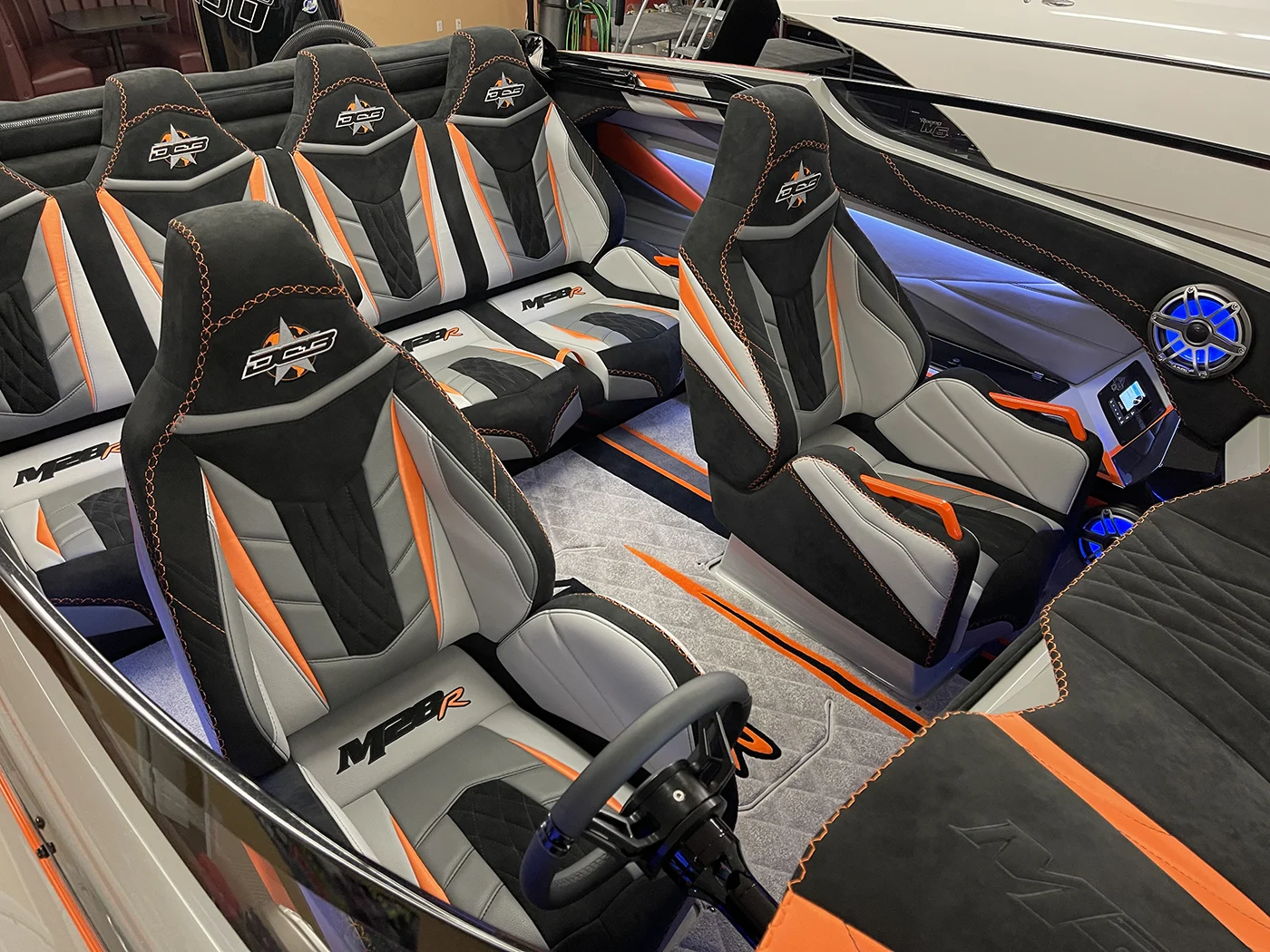

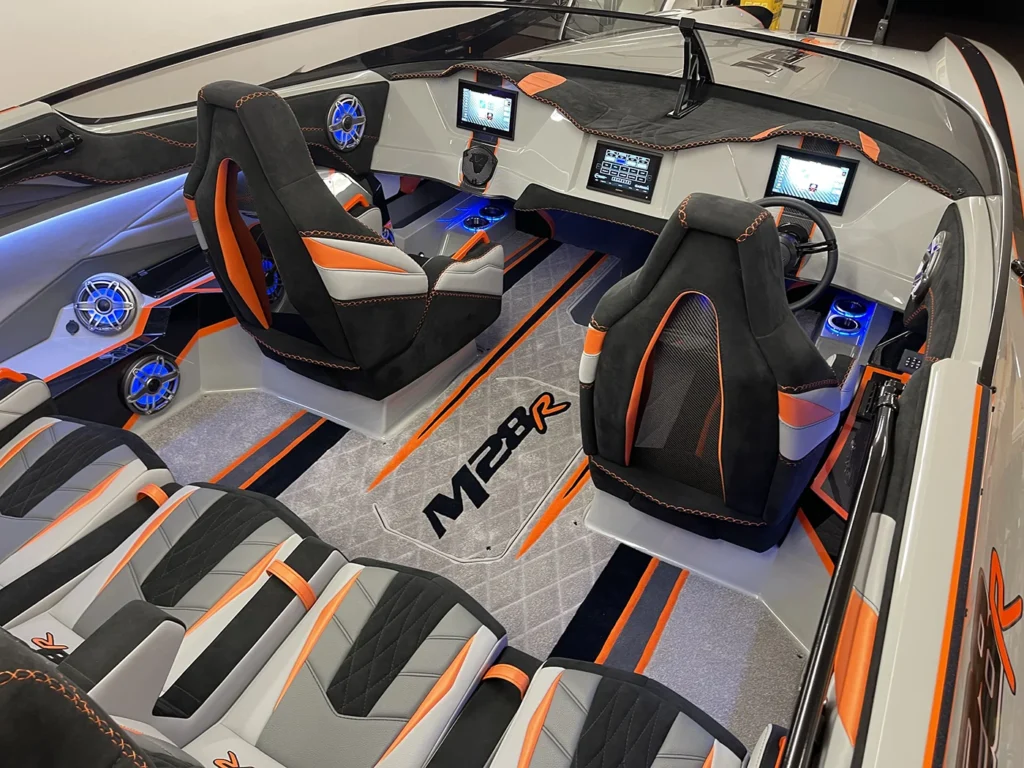

Handcrafted Interior
M28R six-seater blends luxury and performance with power-adjustable bolsters, billet footrests, an Alcantara dash with French stitching, and custom marine flooring options. Every detail is designed for comfort and style

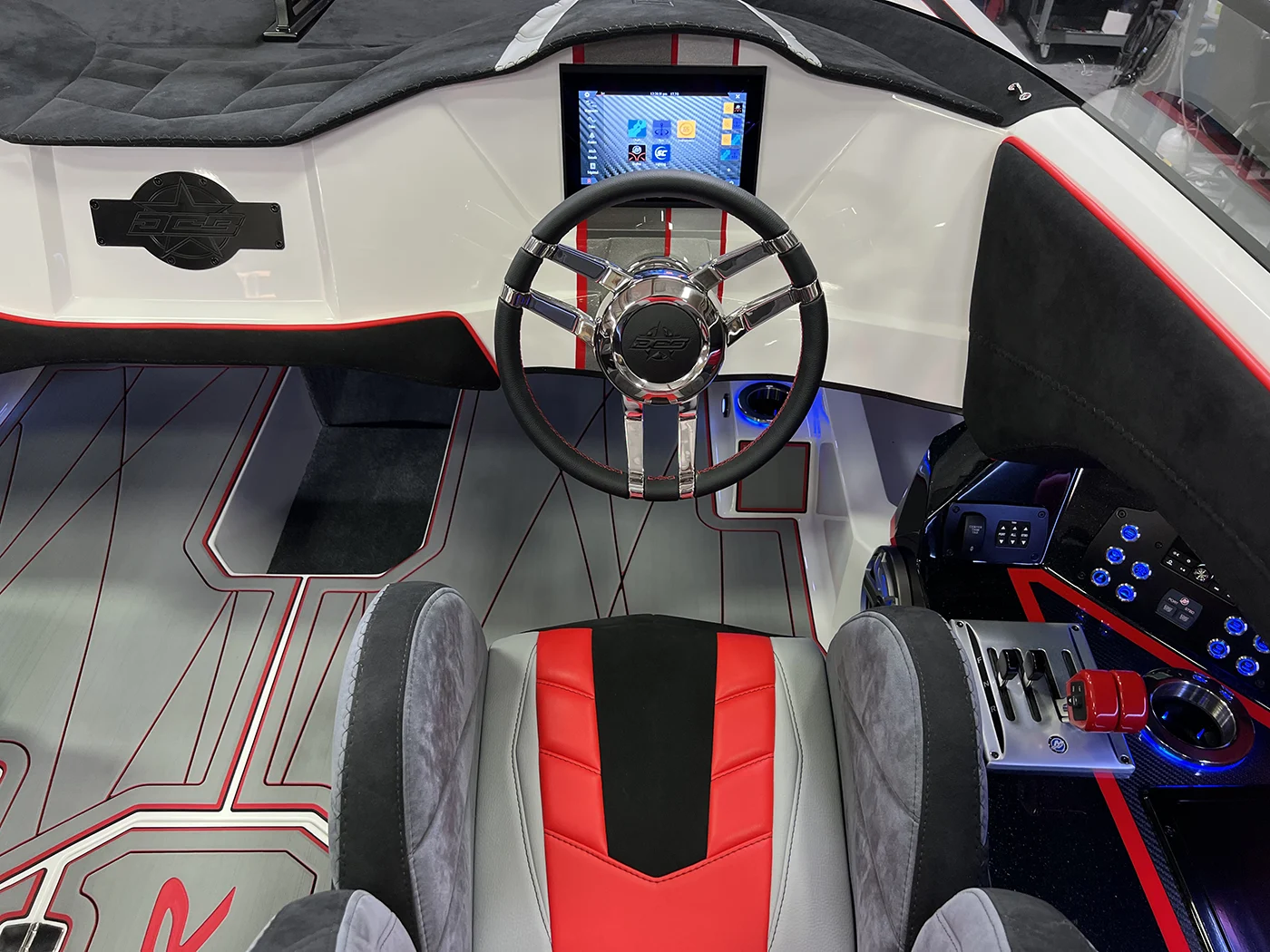

Infotainment
Dual 9″ Garmin 943 side screens display advanced navigation and engine data. Integrated with Mercury SmartCraft Connect, everything works seamlessly for a refined, intuitive boating experience.

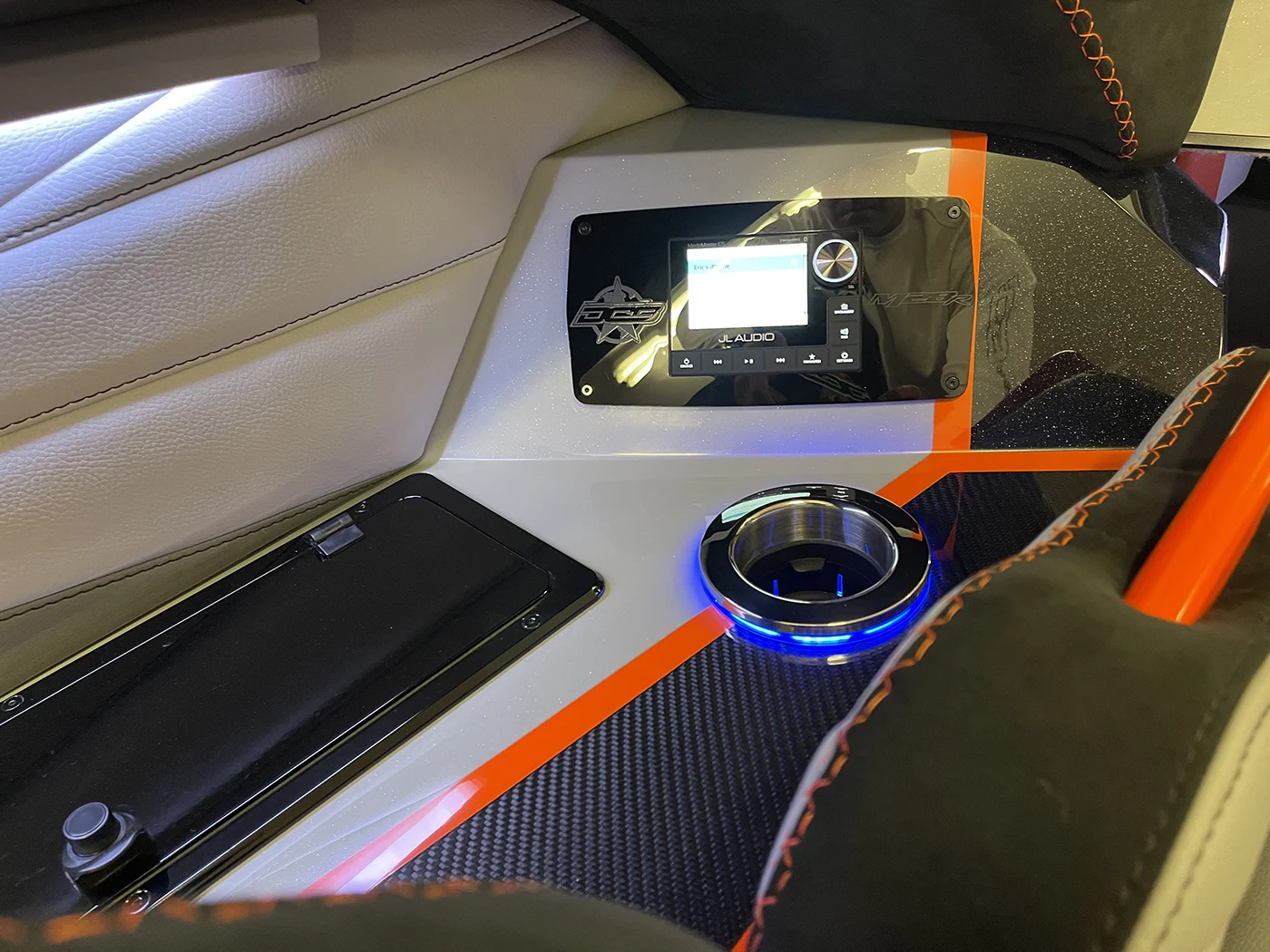

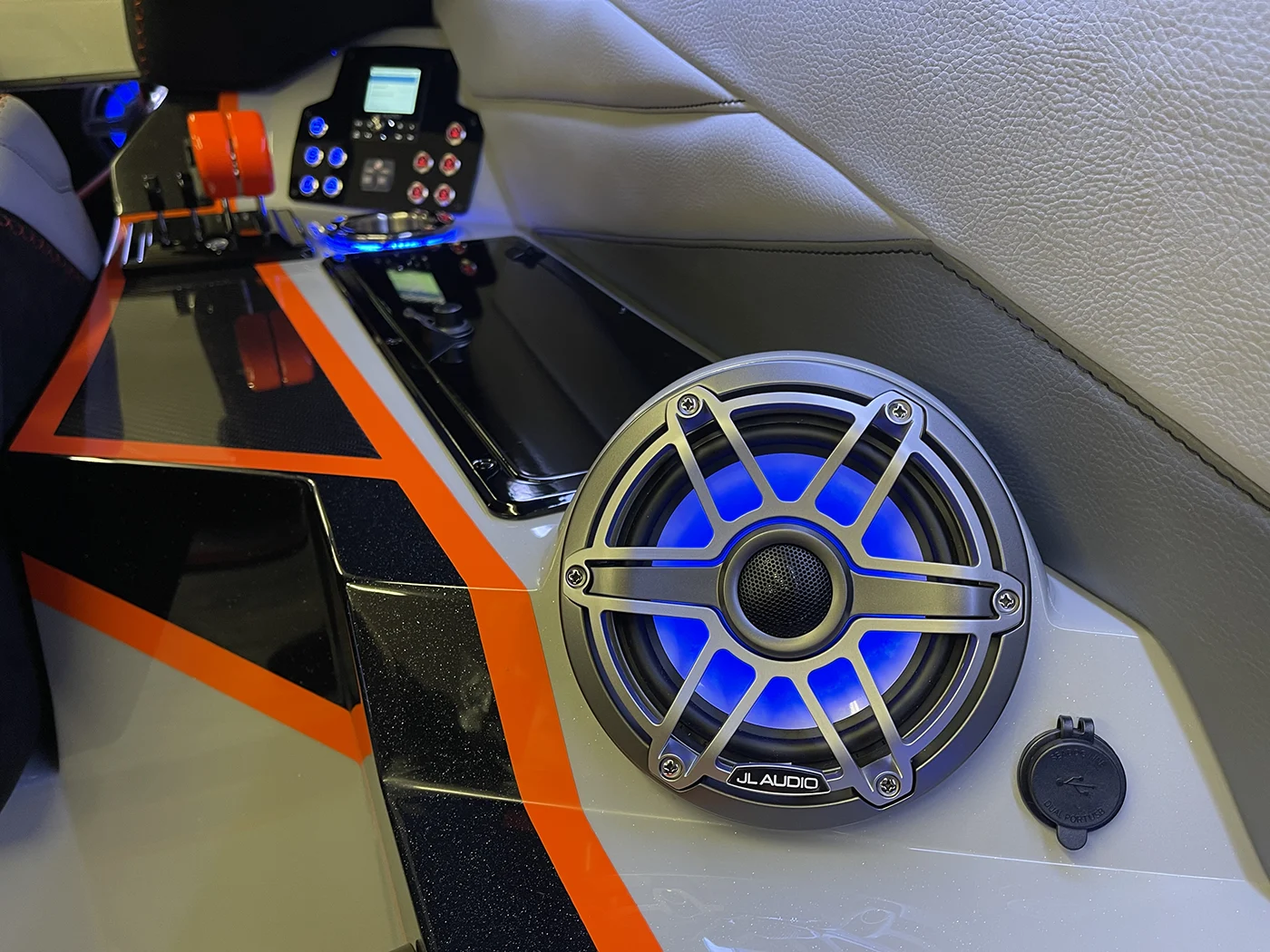

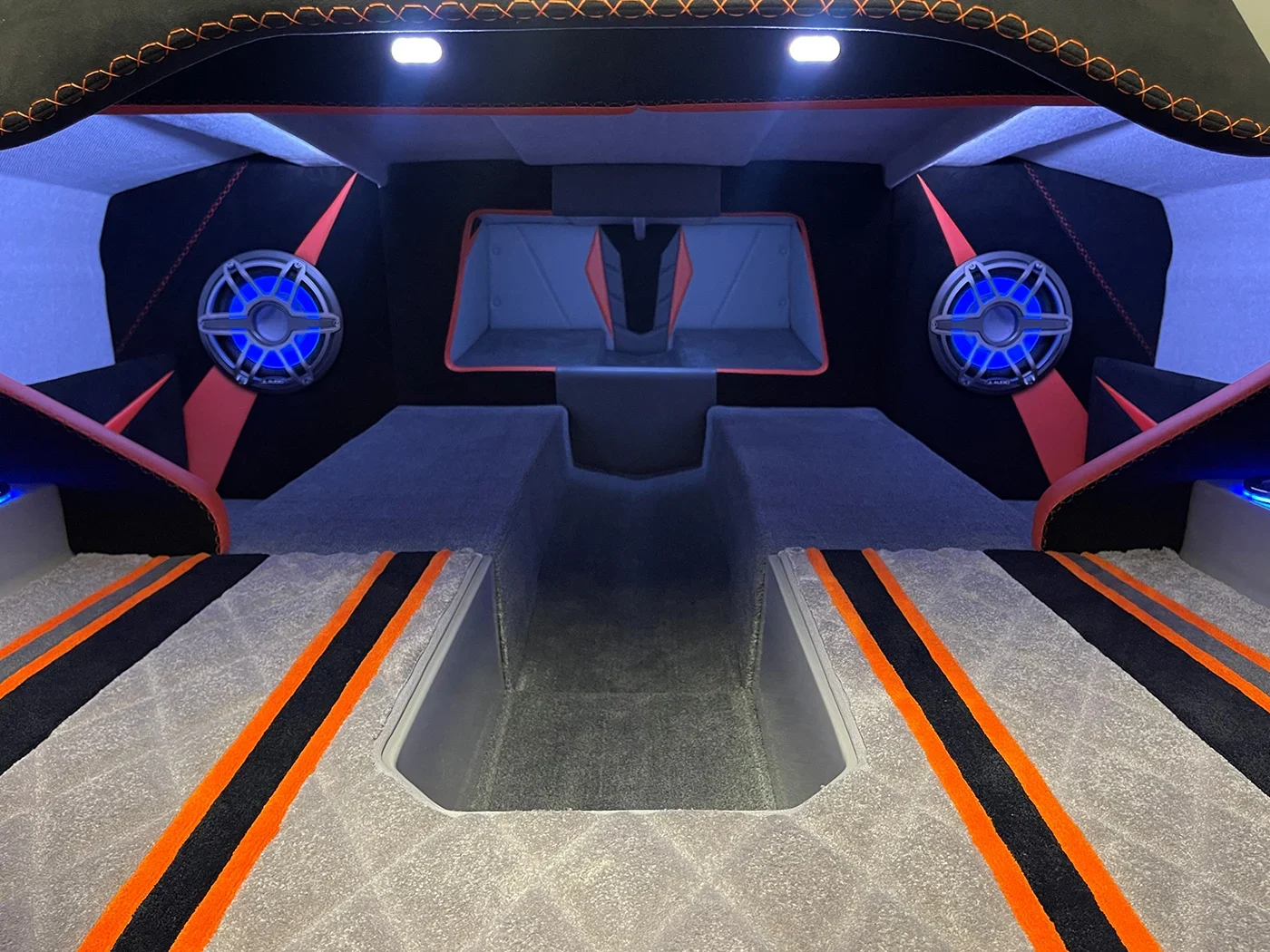

Stereo System
Our Phase 1 stereo system features a Fusion Marine Bluetooth/Wi-Fi head unit and four JL Audio 6.5″ speakers, delivering rich, clear sound to match the boat’s handcrafted luxury and performance.

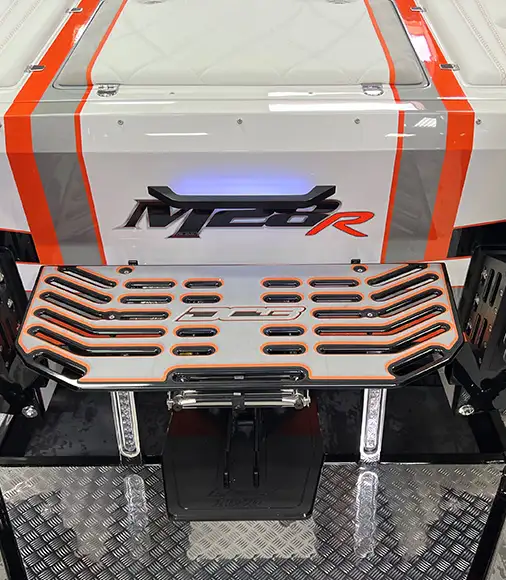

Custom Graphics
We collaborate with Wes Jones Design to deliver custom graphics. Every vessel features a premium gel coat finish with a striking black windshield register, complemented by high-gloss detailing.

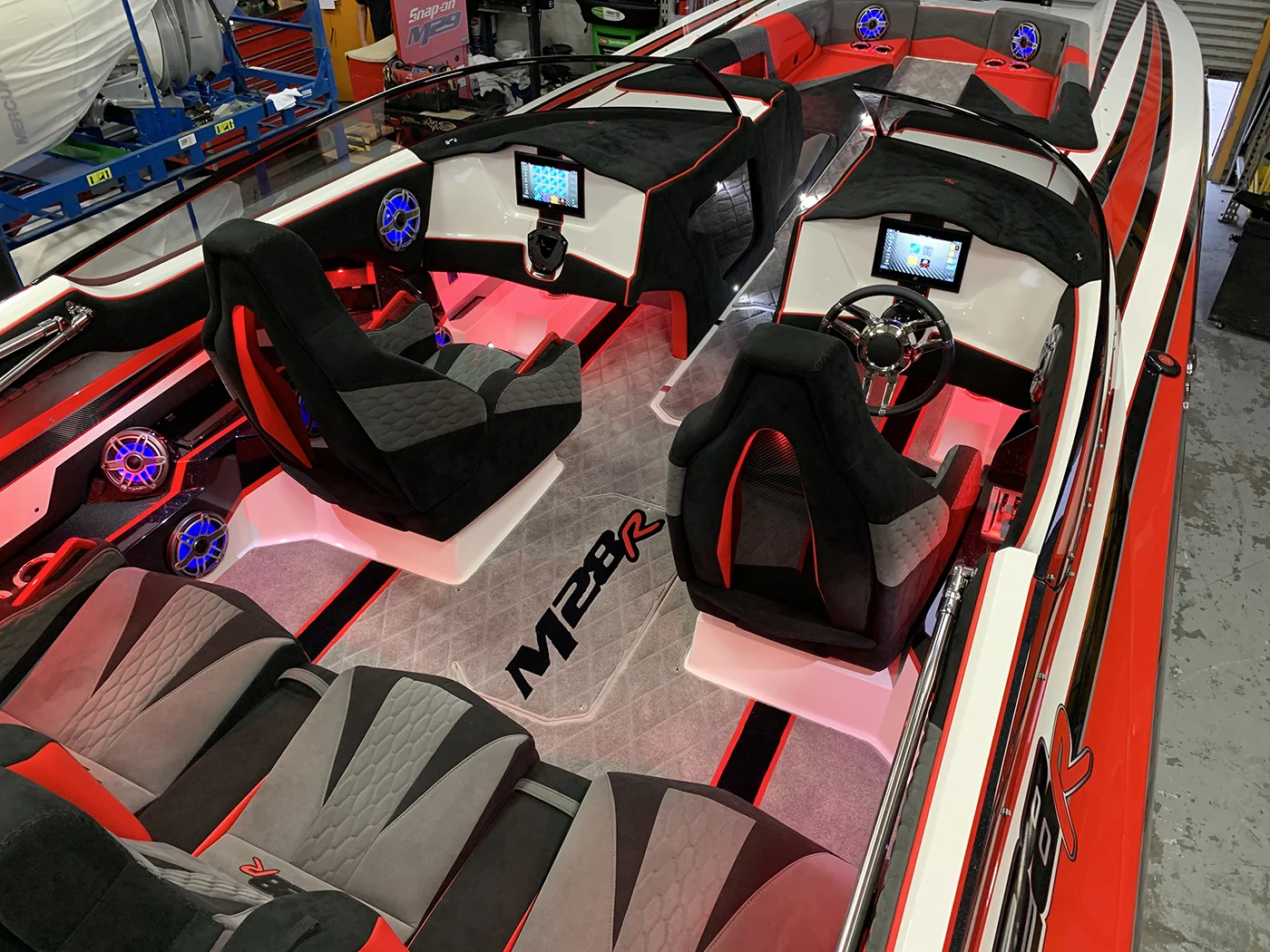

Lighting It Up
Equipped with precision billet LED navigation lights, paired with a sleek nav/anchor light pole for optimal visibility. Full digital RGBW accent lighting under the dash, in cup holders, speakers, and an immersive atmosphere both day and night.
Built For Durability
Featuring exclusive DCB billet parts, 7075 aluminium adjustable engine brackets, dual 900 GPH bilge pumps, reinforced SS hardware, and a 5/8βinch thick acrylic windshield—every detail is engineered for strength and reliability.

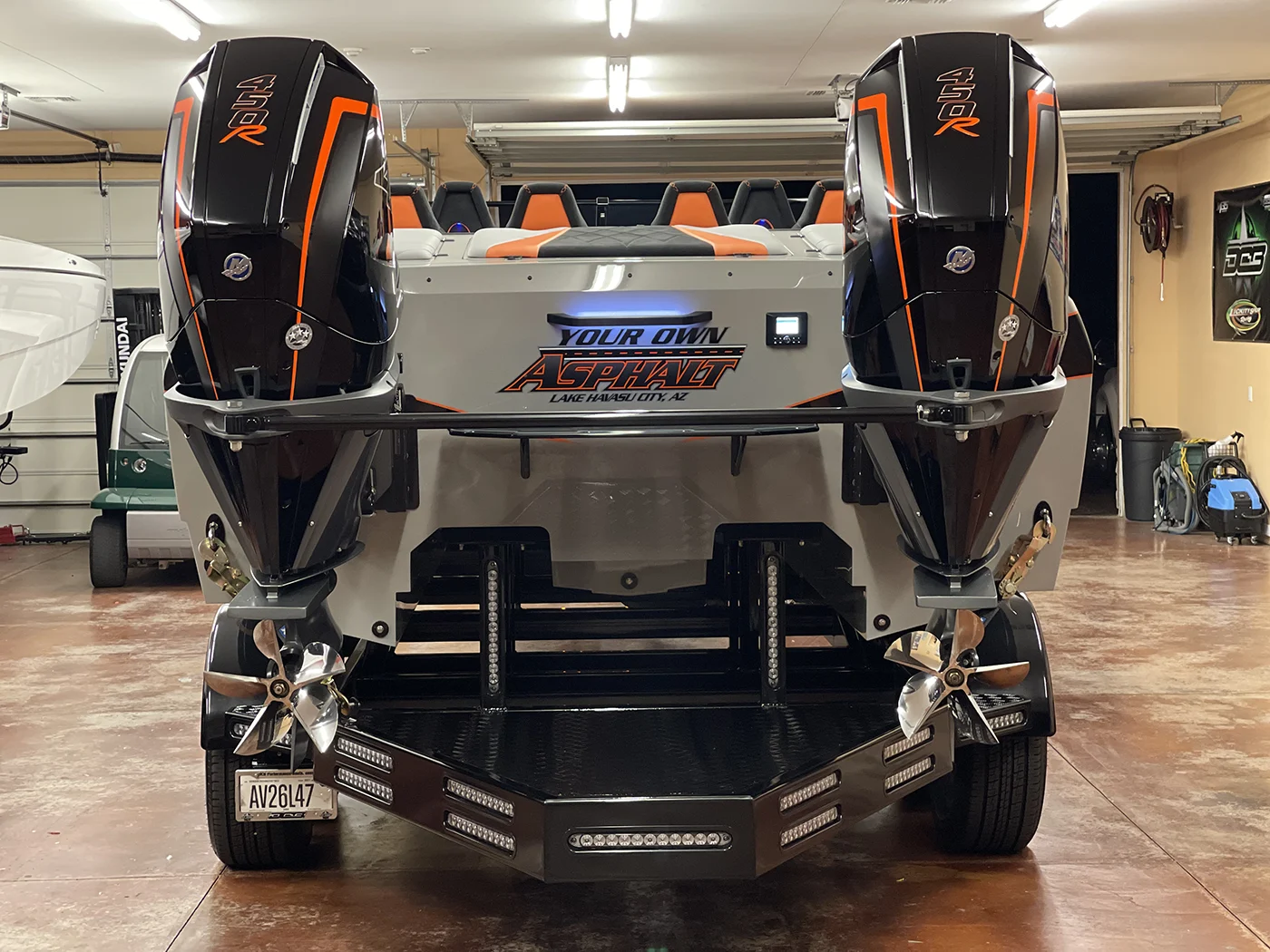

Premium Trailer
Our trailers feature an 8″ steel frame, torsion axles, disc brakes, 16″ aluminum wheels with spare, dual winches, tie-downs, a spare tire mount, and a courtesy ladder for easy loading. Numerous upgrades for both flat and tilt trailers allow you to fully customize to your needs.

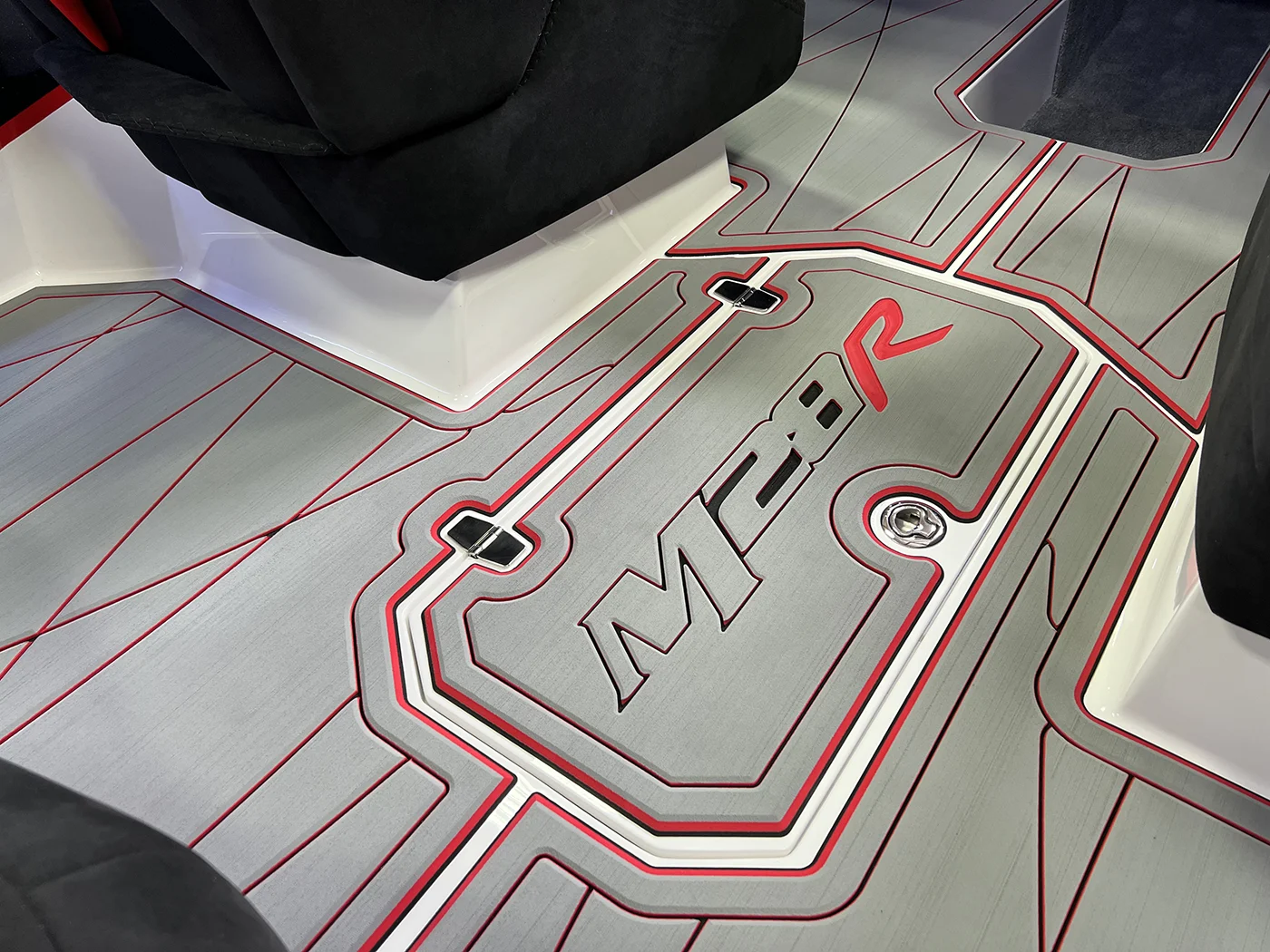

Deck

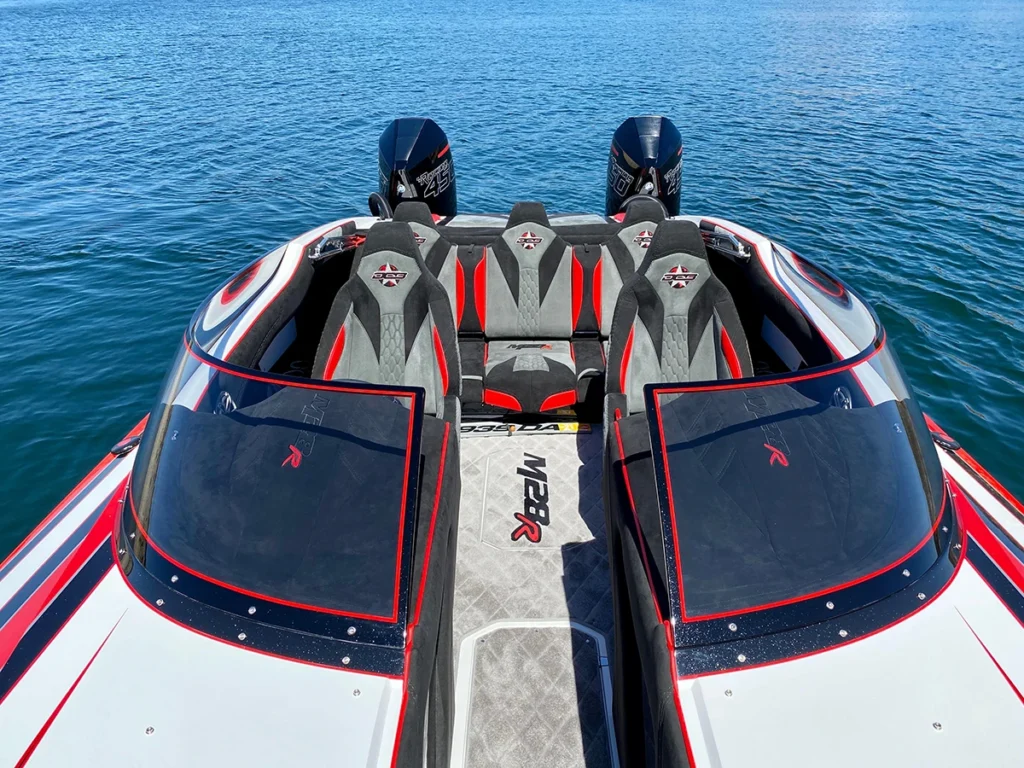

The M28R delivers versatility with three deck configurations to match your boating style. Choose the sleek Traditional Full Deck, the Walkthrough Open Bow for easy movement and added seating, or the Full-Windshield Open Bow for wind protection with open-air comfort. The open bow options create a more family-friendly layout with forward seating and easier boarding—perfect for kids and guests. With seating for six and DCB’s full range of custom upholstery, gelcoat, and electronics, the M28R combines big-boat comfort with agile performance.
Specifications
| Length | 28’2″ |
| Beam Width | 9’0″ |
| Hull Style | Center Pod Tunnel |
| Cockpit Seating | 6 |
| Cockpit Width | 78″ |
| Fuel Capacity | 2 x 55-gallon |
| Avg. Weight | 5,300-5,500 lbs |
- Vacuum infused resin (VIR) process, balsa composite lamination schedule
- Full wrap around windshield 5/8″ thick acrylic w/billet center brace
- Blue-printed running surface • Recessed fender storage w/ integrated gutters and drainage
- 3 aftdeck hatches with friction hinges and gas strut assist
- 1 large storage compartment in floor of one-piece cockpit inner liner (self-draining)
- DCB premium quality rigging installation, and workmanship • Rigged to NMMA & USCG standards
- DCB standard vinyl graphic pkg for boat and trailer, 21 in total
- Polished stainless rub rail
- High gloss white gel coat with black windshield register • Custom bow and stern half cap
- Wes Jones Design • Gel coat • SeaDek • Interior • Carpet • UP TO 20 RENDERINGS
- Additional design work will be an additional charge
- 2 x 55 gallon IMCO TIG welded aluminum EPA compliant fuel tanks (approx 110 total gallons)
- 2 Garmin 943 9″ side screens multi function for navigation and engine data
- Mercury zero effort digital controls
- Mercury SmartCraft connect, compatible with all Garmins • GPS 24XD antenna
- Isotta steering wheel • IMCO billet tilt helm
- 3 Odyssey 1500 marine deep cycle batteries, 1 for each engine plus the house power
- Pronautic smart marine battery charger, charges all batteries from 110V shore power
- Billet LED navigation lights (red/green) • Nav/anchor light pole
- Digital RGBW courtesy mood & accent lighting (under dash, coaming panels, cup holders, speakers, storage, steps)
- 6 fenders • 6 DCB fender sleeves • 6 dock lines
- Poker run bucket style seating 6 seater
- Fiberglass seatback with one-color gel coat
- 6 low-profile billet grab handles
- Single-piece padded 100% Alcantara dash pad (reduces windshield glare)
- Custom plush 1-color snap-in carpet with DCB or M28R logo
- Fully carpeted cuddy w/ 40oz. charcoal gray marine grade carpet
- DCB M-series emrboidery package
- 1 12-volt receptacle • 2 USB ports • 2 glove boxes
- Exclusive DCB billet parts • 100% hand polished SS fasteners
- 2 Proprietary billet aluminum 7075 adjustable height engine set back brackets w/ ARP fasteners
- 3 battery boxes • 7 grab handles • swim step • 3 bilge pumps
- 6 SS half-inch pre-sewn pin cleats • 6 SS pull-up cleats • 9 LED cup holders
- 1 SS bow eye w/ reinforced backing plate • 2 SS stern eyes w/reinforced backing plate
- 2 DCB prop shaft covers
- Phase 1 Stereo unit:
- Fusion marine bluetooth/ Wifi head unit MSRA770 • 4 JL Audio 6.5″ coaxial speakers
- 8″ Steel box frame, tandem torsion axles and dual electro-hydraulic disc brakes
- 16″ aluminum wheels & tires w/ spare • 2 tie down ratchet straps • NO drive guard
- Steel fenders, standard LED light pkg • Oversize flag/strobe light pkg
- 2 manual winch’s, 1 forward 1 down • Spare tire mount
- 1 courtesy ladder w/ single handrail
- Each new boat purchase includes 1 Lifeline jacket at N/C (795)
- USCG approved mounted horn • Kill switch lanyard w/ wrist strap
- 1 chrome fire extinguisher with billet bracket • 1 Fireboy extinguisher
- DCB is a proud supporter of www.PerformanceBoatSchool.com
- Cowling upgrade – custom matched decal kit (pair)
- Cowling upgrade – all Fusion White cowling w/ white lower unit (pair)
- Cowling upgrade – carbon-fiber insert panels
- Cowling upgrade – DCB custom carbon fiber engine scoops
- Upgrade: custom color engine cowling and mid section paint
- Upgrade: custom color engine cowling
- Wilson CNC machine profiled lower units (including labor and freight both ways)
- Mercury PLATINUM 3-Year extended Warranty 6 years total 300R
- Mercury PLATINUM 3-Year extended Warranty 6 years total 400R
- Mercury PLATINUM 3-Year extended Warranty 6 years total 500R
- Steering wheel upgrade -100% Alcantara wrapped Isotta wheel
- Upgrade to Mercury CNC over-hub cleaver propeller w/ cases
- Additional set of Mercury Max 5 propellers
- Add’l set of Mercury CNC over-hub cleaver propellers w/ cases
- Gel coat design stage #1 one-color pearl w/clearcoat & deck stripes
- Gel coat design stage #2 two-color with graphic
- Gel coat design stage #3 three-color (full custom)
- Gel coat design stage #4 high difficulty
- Custom full cap (1 color)
- Custom full cap with color crossing bond line (charge per line)
- Powder coated rub rail (1 color)
- Custom painted rub rail to match gel graphics
- Carbon fiber stiffening – per linear foot
- Carbon Kevlar – per linear foot
- Foam coring – per linear foot
- In gel DCB deck branding, name, model or logo (up to 3 colors or carbon)
- In gel DCB 2x side branding, name, model or logo (up to 3 colors or carbon)
- In gel DCB top of tunnel branding, name, model or logo (up to 3 colors or carbon) visible when boat is on tilt, specify standard or vanity tilt
- Vinyl USCG name and hailing port
- 6 Billet aluminum cleat upgrade black anodized with lasered DCB
- Blackout pkg includes: hinges, latches, handles, helm base, hardware, shower nozzle, shower pick up (combo of paint, powdercoat and cerakote)
- Mercury 2 shifter knobs 2 throttle knobs , black or powdercoat color match
- Aqua step mounted to billet swim step (extra large step)
- Billet sand shower – front inside of sponson
- Carbon fiber tie-bar cover
- Carbon fiber dash
- Carbon fiber transom
- 2 Side gunnel inside cockpit
- 2 Seat carbon fiber insert – front seats only
- Exposed carbon graphics – priced by size and location
- 6-person intercom system w/ VHF boat-to-boat (“DCB Channel” )
- Added premium battery and billet box (each)
- Garmin 943 9″ to Garmin 8612 (12″) MFD touch screen, outside screen
- Garmin 943 9″ MFD touch screen, center screen
- C-Zone intelligent technology upgrade
- Furuno DT800 through hull depth & water temp transducer
- 2 Garmin TD50 touch screen digital speedometer, in back of headrest
- Upgrade to 3 sodium/lithium battery (reduces total weight by 90#)
(PHASE 1 included – Fusion head unit, 1 amplifier and 4 JL Audio 6.5″ speakers)
- Phase 1 carbon fiber speaker grill upgrade kit 4 grills
- PHASE 2 includes:
- Fusion AM/FM/bluetooth head unit MSRA770
- 1 JL Audio 6-channel amplifier (for 6 midrange speakers)
- 1 JL Audio 1-channel amplifier (for 2 subwoofers)
- 4 JL Audio 7.7″ coaxial speaker
- 2 JL Audio 6.5″ coaxial speaker
- 2 JL Audio 10″ M6 subwoofers
- 1 Fusion hard wired remote
- Phase 2 carbon fiber speaker grill upgrade kit
- 4th Odyssey battery with billet box
- 4th sodium/lithium lightweight battery (30lb weight reduction)
- PHASE 3 includes:
- Fusion AM/FM/bluetooth head unit MSRA770
- 1 JL Audio 8-channel amplifier (for 8 midrange speakers)
- 1 JL Audio 1-channel amplifier (for 2 subwoofers)
- 6 JL Audio 7.7″ coaxial speaker
- 2 JL Audio 6.5″ coaxial speaker
- 2 JL Audio 12″ M7 subwoofers
- 1 Fusion hard wired remote
- Phase 3 carbon fiber speaker grill upgrade kit
- Upgrade to all sodium/lithium lightweight battery (90lb weight reduction )
- PHASE 4 includes:
- Fusion AM/FM/bluetooth head unit MSRA770
- 2 JL Audio 8-channel amplifier (for 8 midrange speakers)
- 2 JL Audio 1-channel amplifier (for 4 subwoofers)
- 6 JL Audio 7.7″ coaxial speaker
- 2 JL Audio 6.5″ coaxial speaker
- 4 JL Audio 12″ M7 subwoofers
- 1 Fusion hard wired remote (Apollo MS-SRX400)
- Phase 4 carbon fiber speaker grill upgrade kit
- Upgrade to all sodium/lithium lightweight battery (90lb weight reduction )
- Additional hard wired remote (each)
- Fusion bluetooth puck remote
(Base int: poker run style bucket seats, x8 grab handles, premium vinyl, french stitching)
- Front helm seats ventilation system 2 ea 2 variable speed fan 150/195 cfm w/ 2 vents
- Upgraded diamond stitching on seats and side panels
- Custom mosiac 3D CNC stitched patterns: Herringbone, Chevron, Double diamond, Hexagon cubes, Step ladder, Half off set, Tetrahedron
- Cool Touch (100%) material upgrade
- Alcantara (25%) and Cool Touch (75%) material upgrade
- Alcantara (50%) and Cool Touch (50%) material upgrade
- Alcantara (75%) and Cool Touch (25%) material upgrade
- Alcantara (100%) material upgrade
- 3 Piece aft storage hatches – SeaDek upgrade
- 3 Piece aft storage hatches – upholstered
- Automotive style seat back
- Flip up cushion (driver and passenger side)
- Upgrade to lite weight composite seat frames (~250lbs weight savings)
- Full upholstered lower dash Pad
- Partial upholstered lower dash pad
- Center billet rear view mirror (not available on a walk through open bow)
- Open bow conversion – cuddy
- Open bow conversion – full walk through
- 3 color SeaDek cockpit kit
- 3 color SeaDek front open bow kit (for walk through open bow only)
- Side pod custom graphics
- 3′ x 4′ carpet dock mat with DCB or M28R logo
- 3′ x 10′ carpet deck mat with DCB or M28R logo
- Propeller cover (16″ soft cover – pair)
- Propeller case (17″ x 17″ hard case – pair)
- Shore spike (size: large)
- Box Anchor (size: large)
- Heavy duty centered stern eye for towing w/ reinforced backing plate
- Additional custom color match LIFELINE VICTORY sport vest (each)
- USCG Kit- 4 PDFII life vests in T-bag, horn, fire ext & throw cushion
- EPIRB locator beacon
- Full boat storage cover
- Cockpit cover (with snaps)
- Low profile Bimini (two-color) 55mph rating
(Base includes tandem -axle with 16″ rims)
- Adrenaline -DCB Upgrade pkg to base ADRENALINE Trailer – Includes: 18″ rims, premium paint,oversized double handle front courtesy ladder with LED lighting and SeaDek,15″ LED running & brake lights, DCB drive guard painted fenders, etc.
- Double axle
- Triple axle
- MYCO
- Myco dual axle aluminum unpainted trailer 12″ welded C channel
- Myco tri axle aluminum unpainted trailer 12″ welded C channel
- Upgrades
- 18″ wheel and tire upgrade
- 20″ wheel and tire upgrade
- Upgrade to clear coat
- Upgrade from unpainted to black gloss paint
- Triangular end drive guard
- 12×106 steel fenders
- Custom fender steps with 15″ LED and SS housings, located in front and back of wheel fender
- Double handle courtesy ladder w/ SeaDek
- LED running light package
- LED runway loading light package
- LED under carriage lighting package (under frame)
- Electric jack (5,000lb) w/battery
- Hydraulic jack
- Electric winch w/ battery
- Chip guard (clear 3M film applied to front of main frame)
- Battery charger
*Final pricing may vary based on custom features, optional equipment, materials, vendor price changes, and other factors. Additional charges may apply. Please contact DCB for a personalized quote.

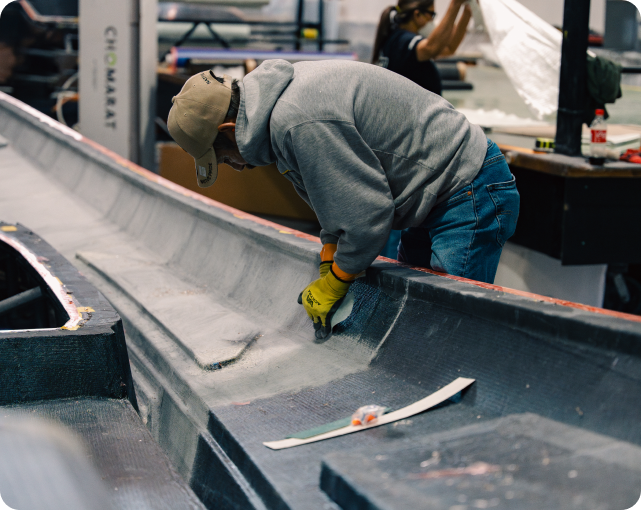

DCB Signature Lamination Technologies
DCB PerformaLamMTM

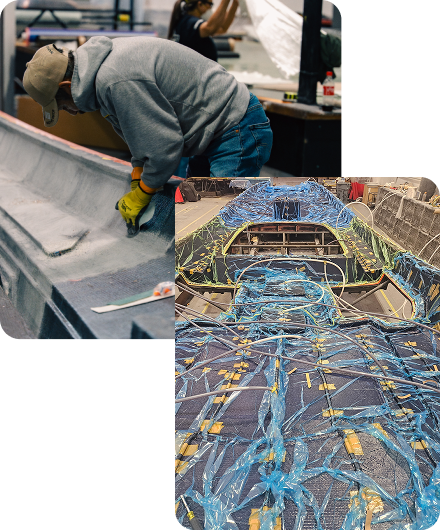

PerformaLam features our exclusive Vacuum Infused Resin (VIR) technology combined with a high-performance blend of bi-axial E-glass, Kevlar, high-density balsa, and other proprietary materials. This process ensures consistent resin saturation and complete air removal, resulting in a strong, rigid, and precisely engineered hull.
Slightly heavier than AeroLam, PerformaLam delivers exceptional structural integrity, impact resistance, and overall value. It is a purpose-built solution designed for dependable, high-speed performance with confidence and control.
Every PerformaLam hull is a testament to DCB’s commitment to advanced engineering and meticulous craftsmanship, purposefully built for those who demand performance without compromise.
CUSTOM
Precision
At DCB, every boat is a masterclass in engineering excellence. Our proprietary Vacuum Infused Resin (VIR) process ensures perfect material saturation for unmatched strength, rigidity, and weight savings—far beyond conventional vacuum bagging. Backed by composites engineers and crafted by the industry’s finest, each DCB hull combines advanced materials into a structure that redefines performance. This is construction at its highest level—where innovation meets obsession.
VIR Technology Advantage
Composite Expertise
Built with Obsession
Unrivaled Engineering
Built By Hand

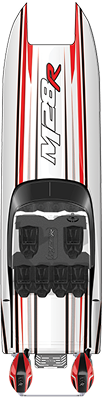

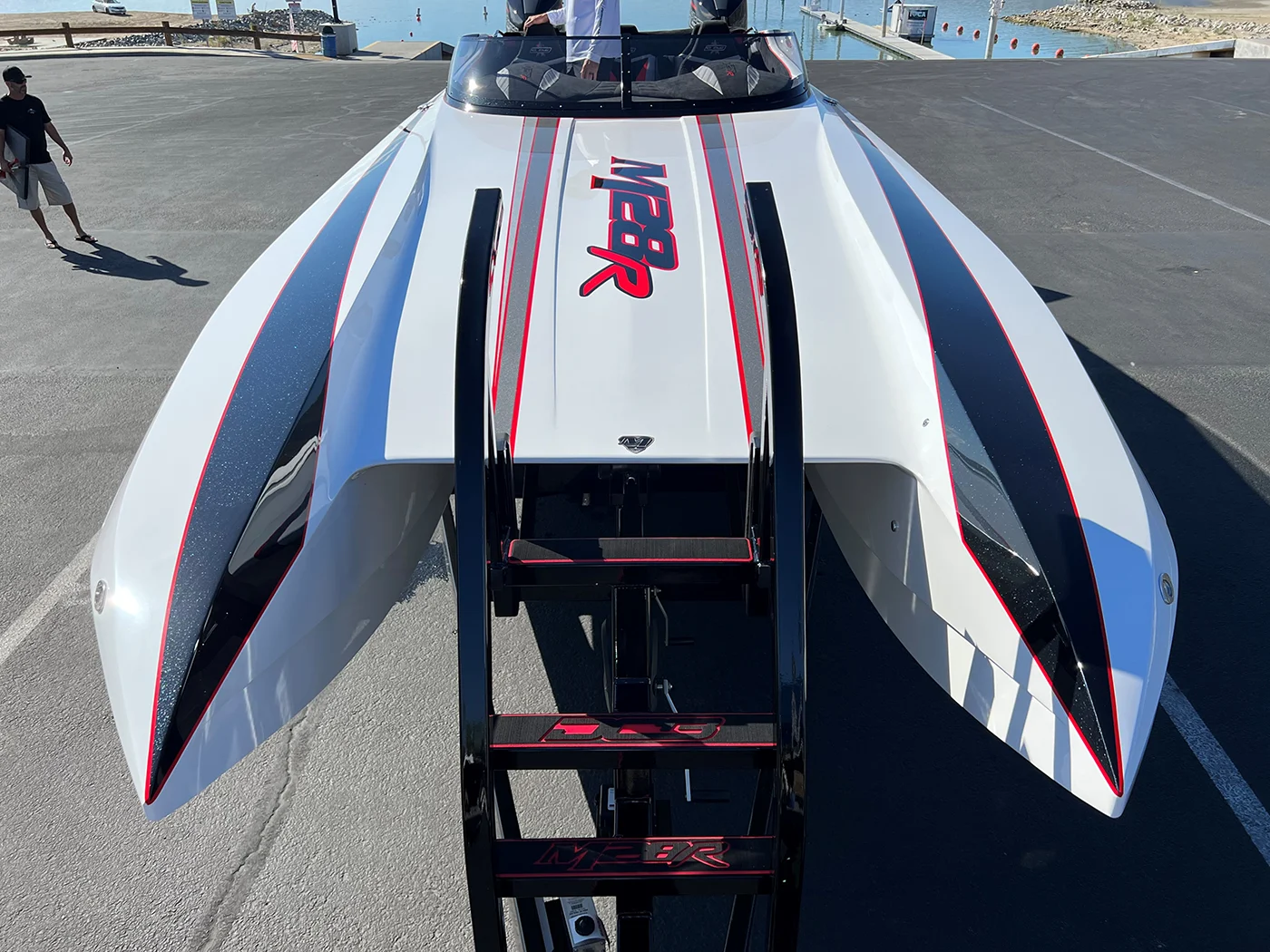

The M28R offers flexibility to suit a wide range of boating styles, with three distinctive deck configurations tailored for both performance and leisure. Choose the Traditional Full Deck for a sleek, streamlined profile, opt for the Walkthrough Open Bow to maximize ease of movement and bow seating, or select the Full Windshield Mid-Cabin Open Bow for the perfect blend of wind protection and open-air access. Both open bow options introduce a more family-friendly layout, allowing passengers—especially kids and guests—to enjoy forward seating, easier boarding, expanded comfort, and a wind-in-the-hair experience. With seating for six in the cockpit and DCB’s full suite of custom upholstery, paint, and electronics options, the M28R offers big-boat comfort and personalization in a highly agile platform.
@DCBRACING
