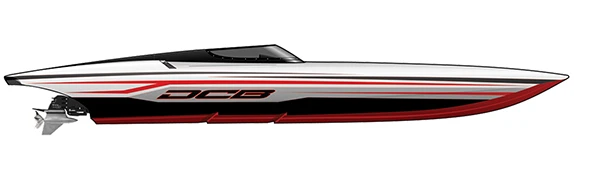

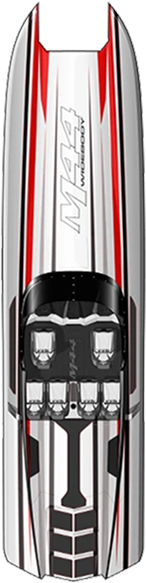

M44
Unmatched By Design
Commanding. Refined.

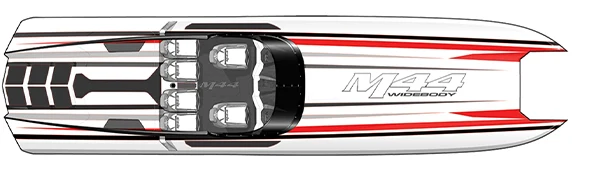

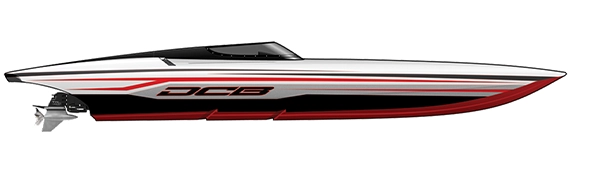

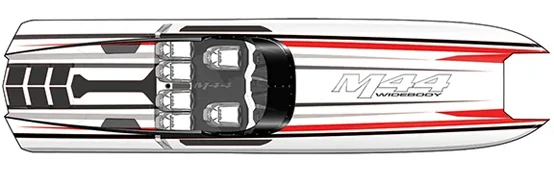

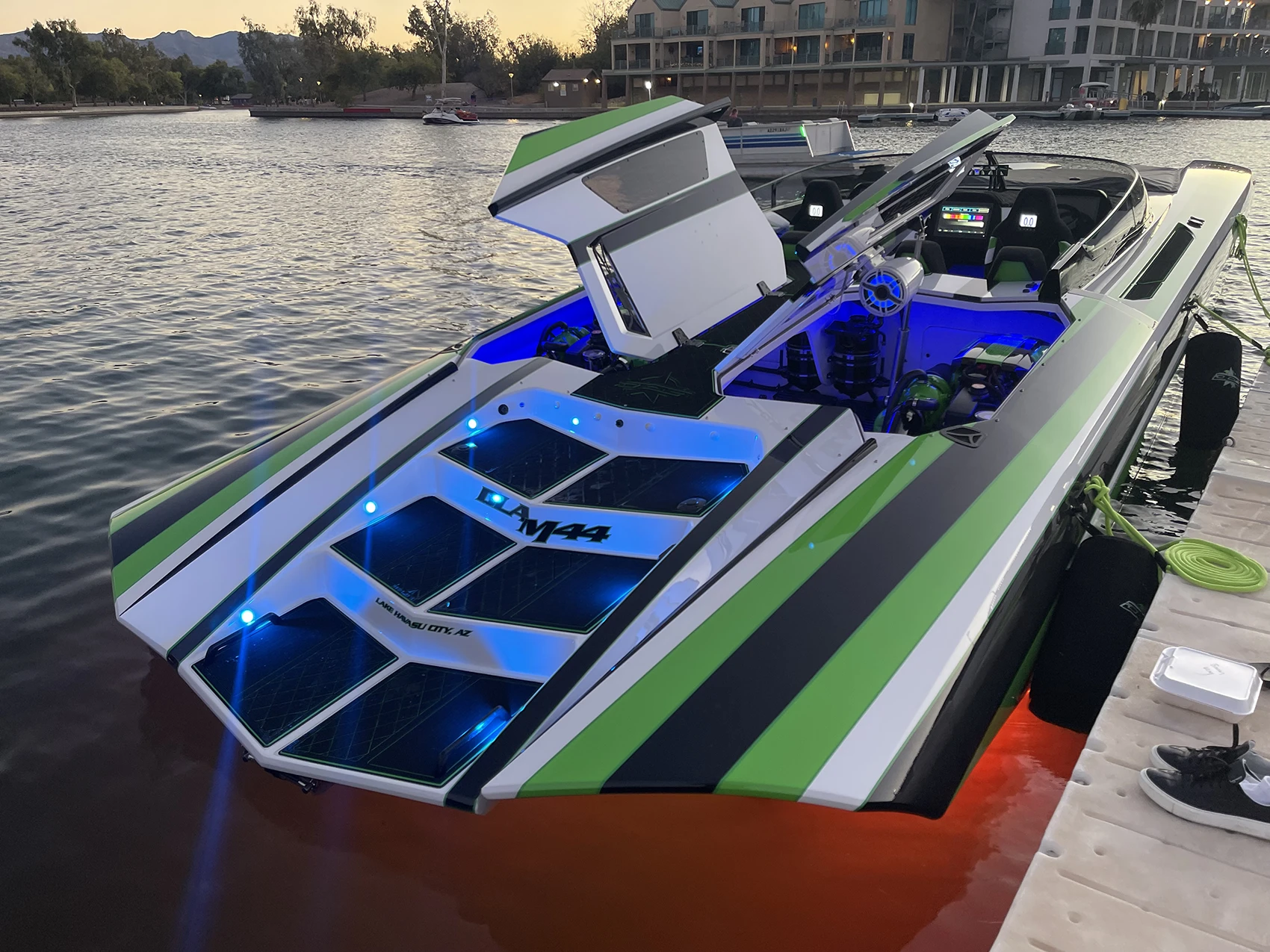

The DCB M44 Widebody takes everything iconic about DCB catamarans and turns it up—more bold, more refined, and more commanding than ever. Every detail is carefully crafted for maximum visual impact and exceptional on-water performance. It’s a statement piece with the soul of a race boat and the comfort of a luxury machine.

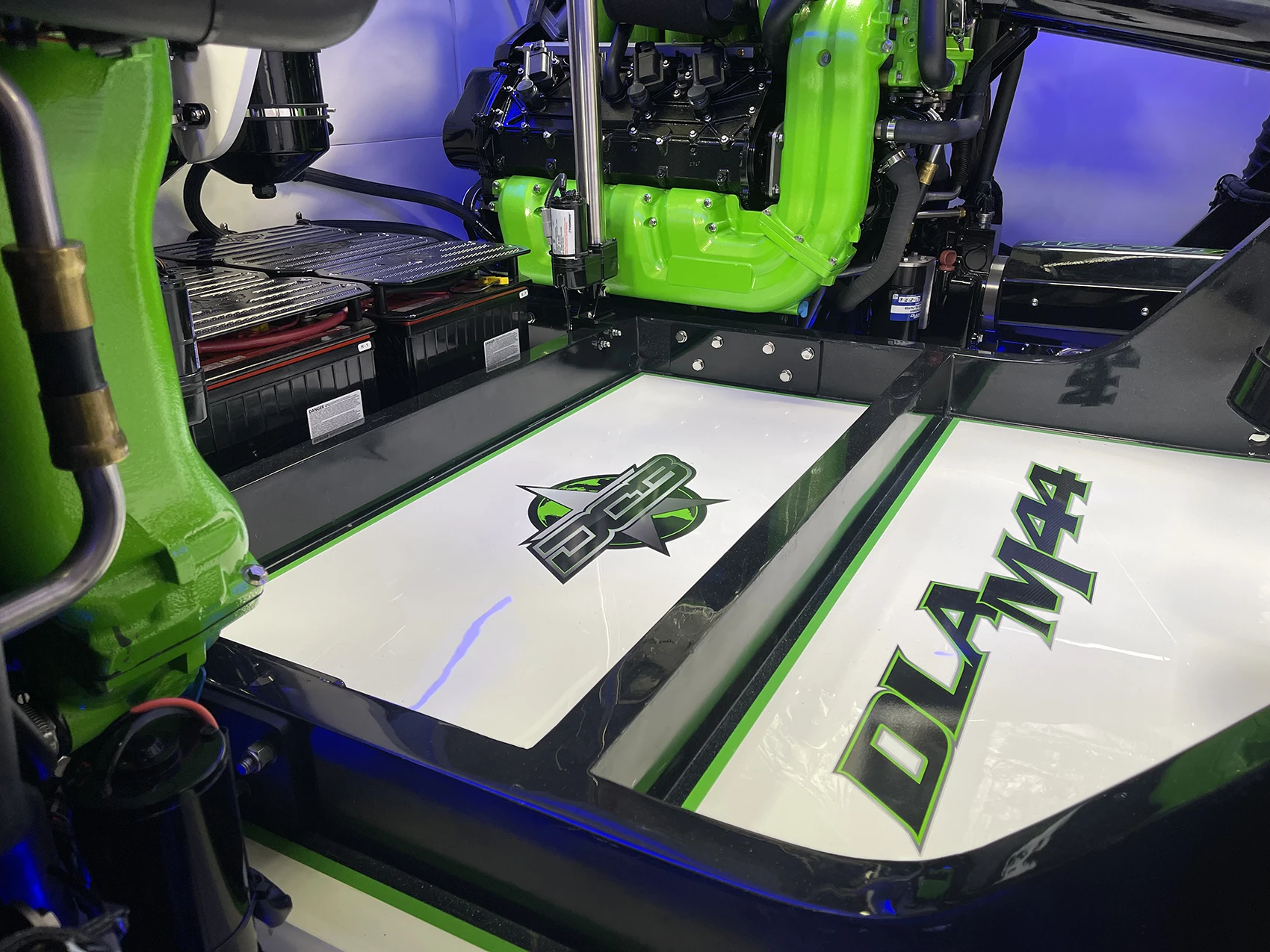

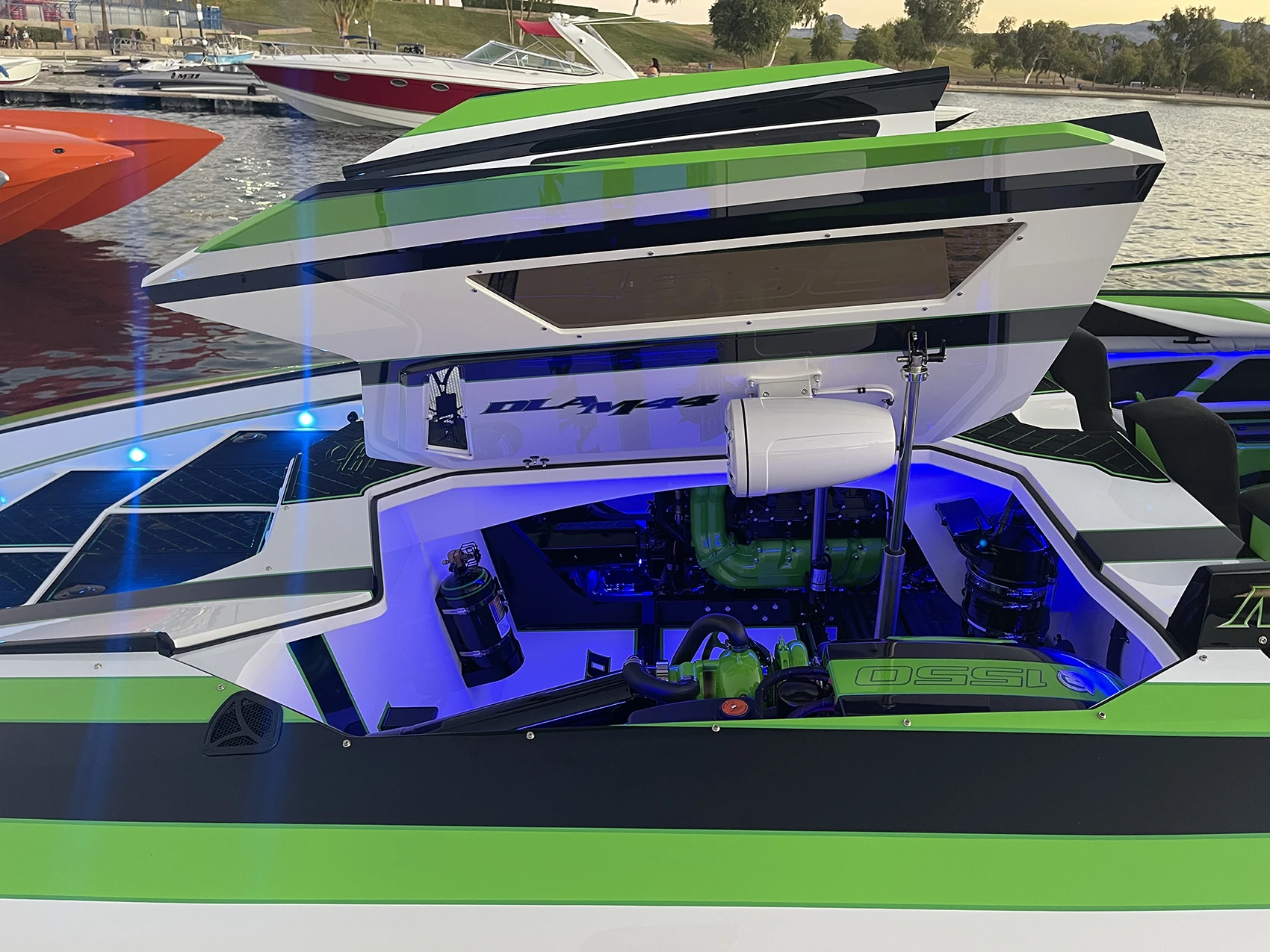

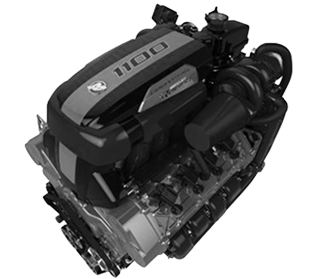

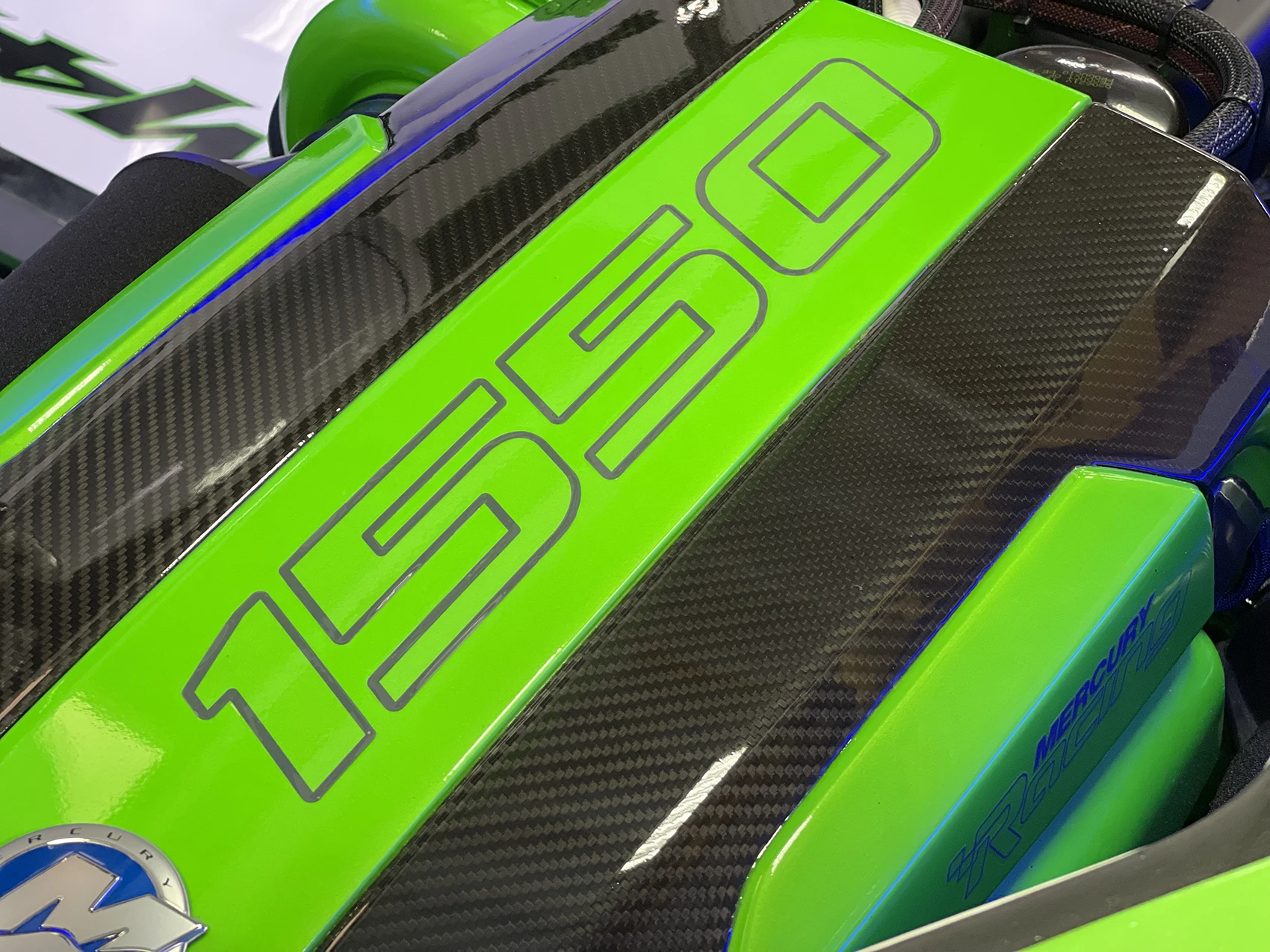

Raw Power

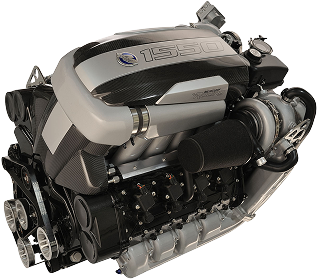

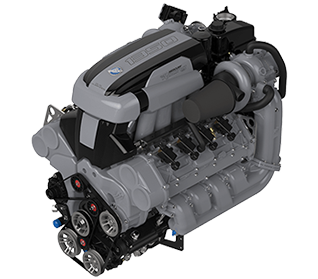

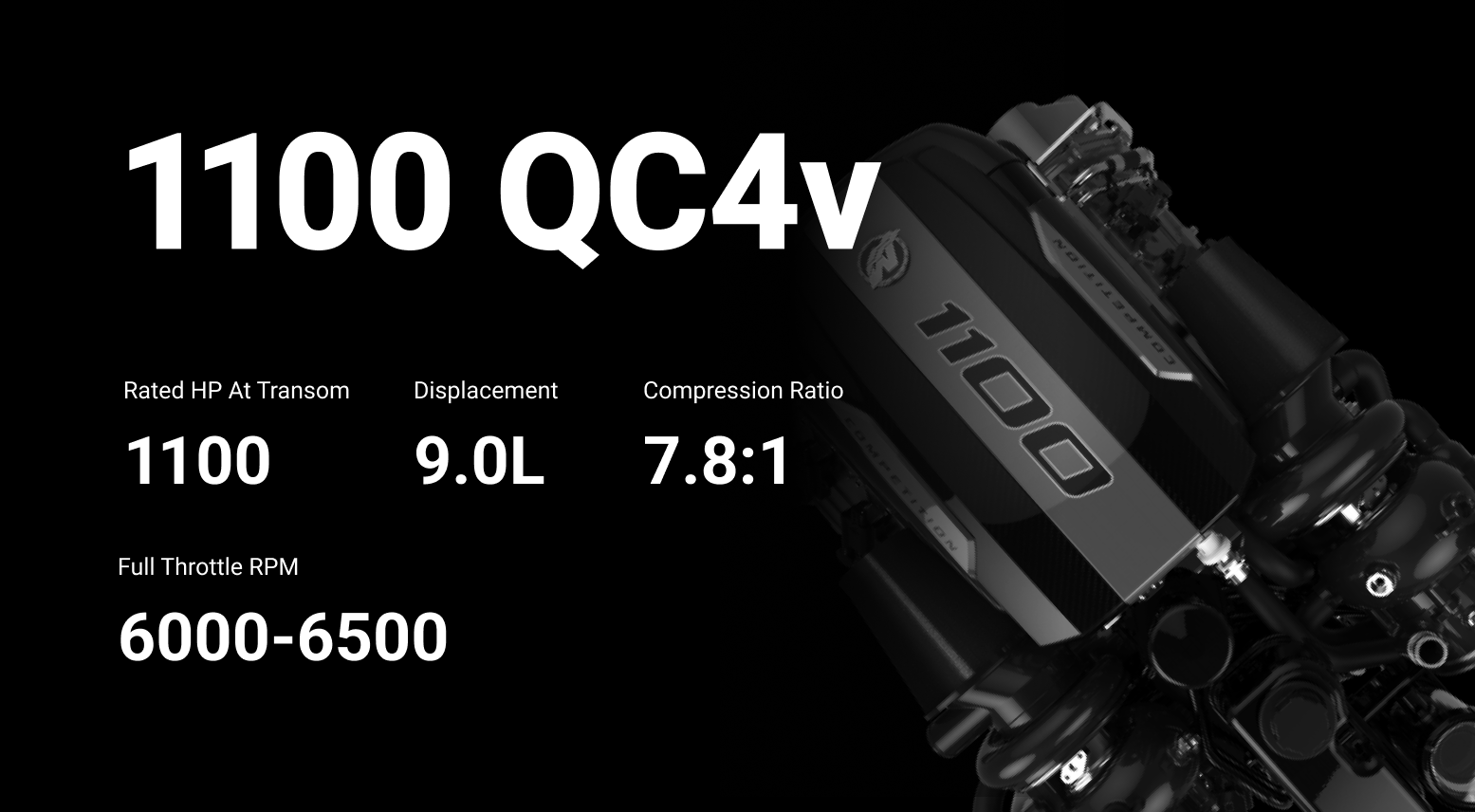

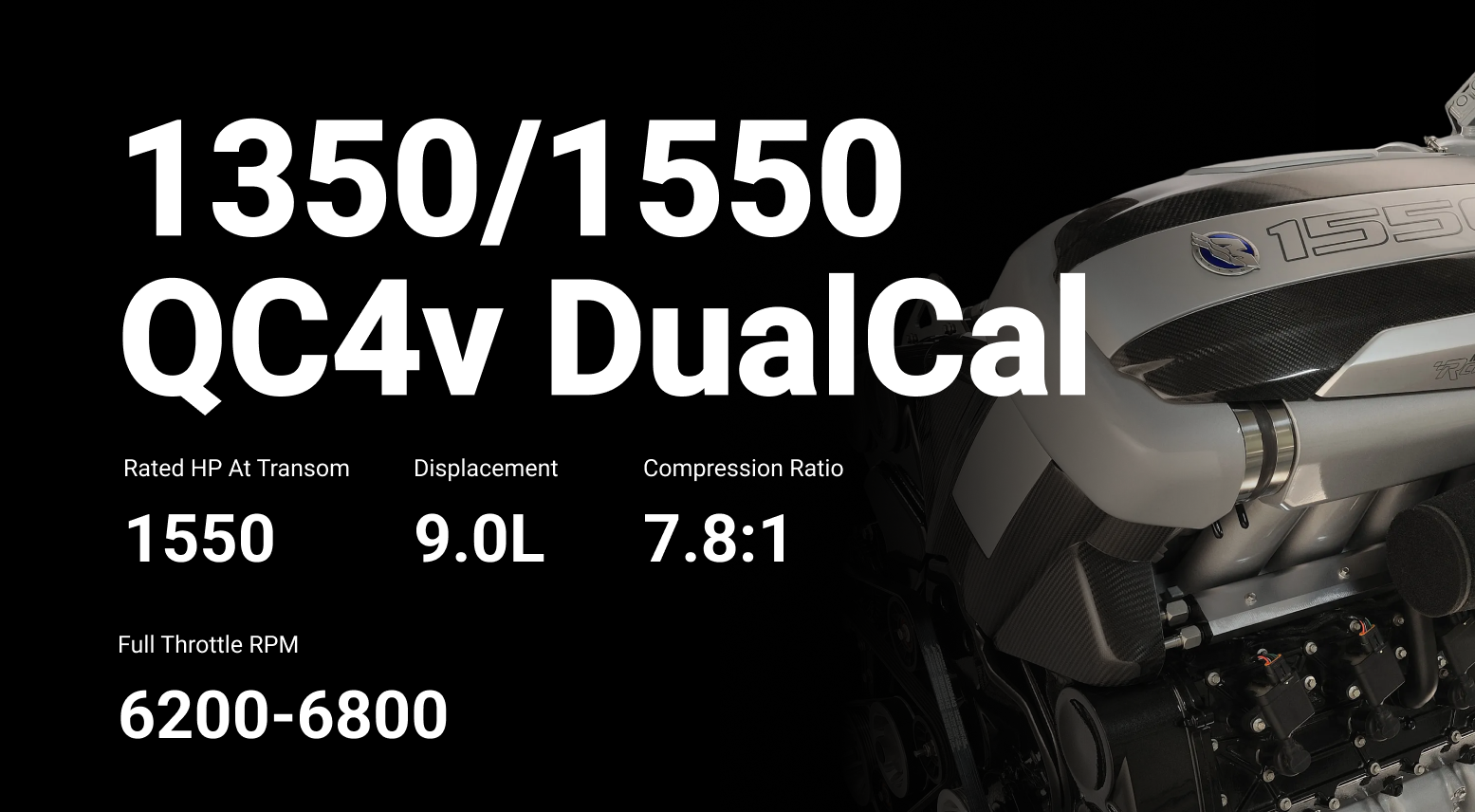

Powered by twin Mercury Racing QC4v twin-turbo stern drive engines, available in 1100, dual calibration 1100/1350, dual calibration 1350/1550 configurations, the M44 delivers raw, commanding performance with unshakable confidence. Its expansive widebody footprint allows for a smooth, composed ride, even at triple-digit speeds, while DCB’s signature vacuum-infused construction and meticulous rigging ensure strength, reliability, and longevity at the highest level.
ELEVATED
Expertly

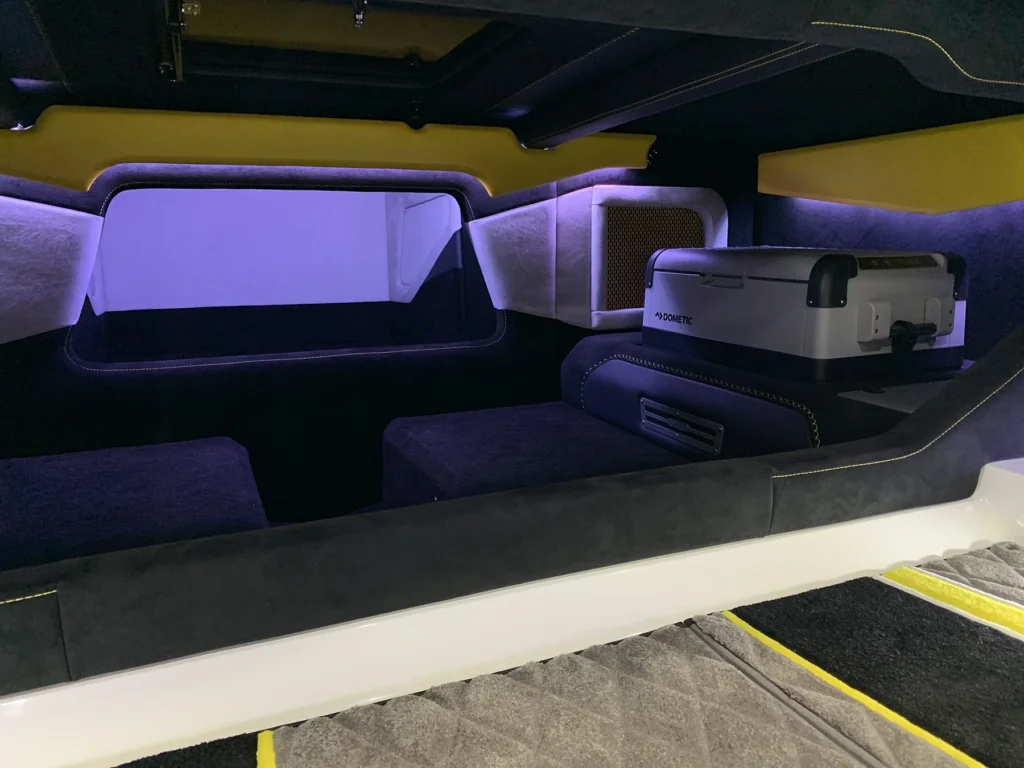

The M44 brings more than size—it introduces new levels of functionality and luxury. Integrated three step bustle seamlessly descend from the transom to the waterline, blending form and function while enhancing dockside accessibility and visual appeal. Every detail is sculpted with intent, pushing the boundaries of what a exotic super catamaran can be.

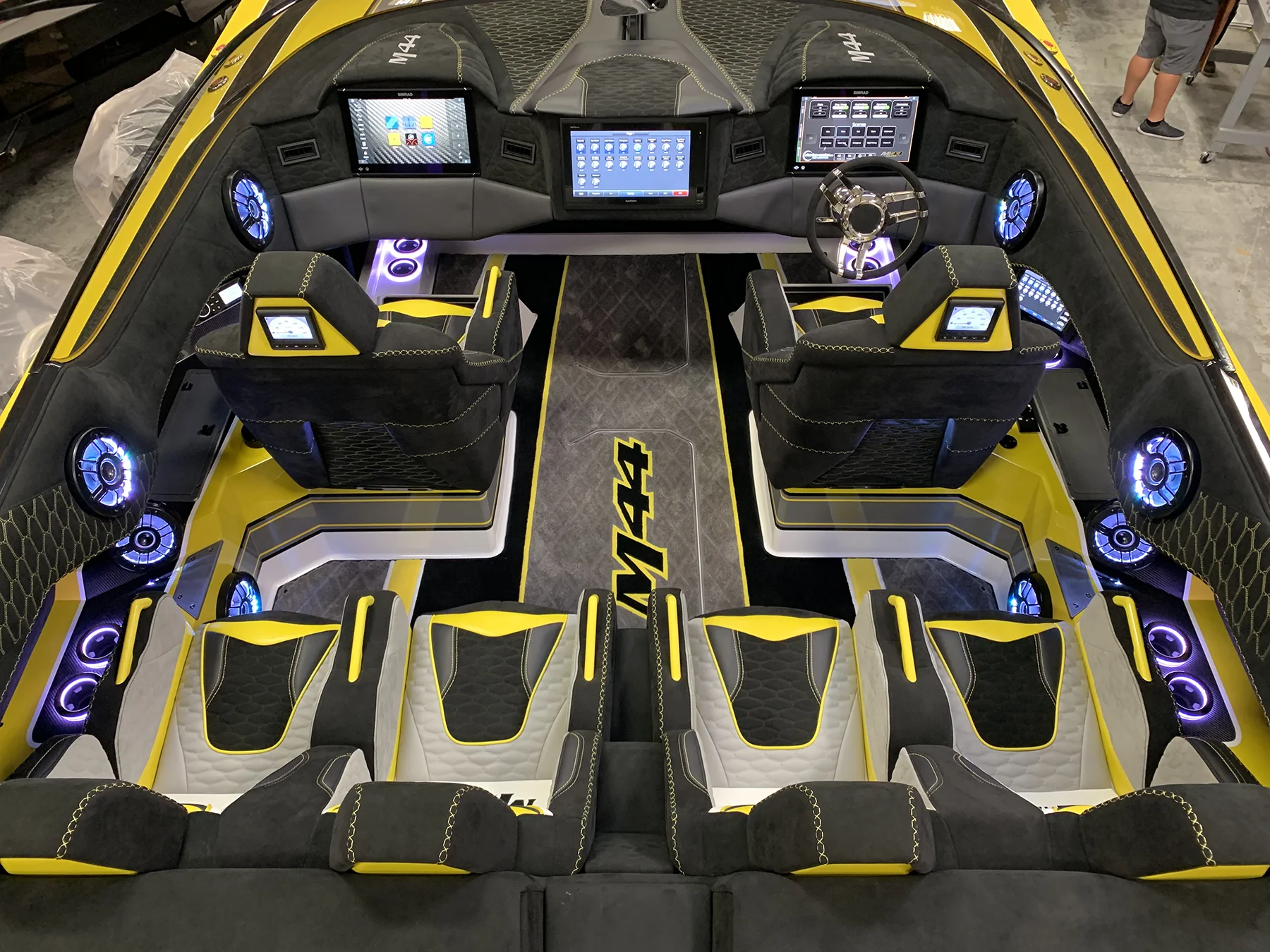

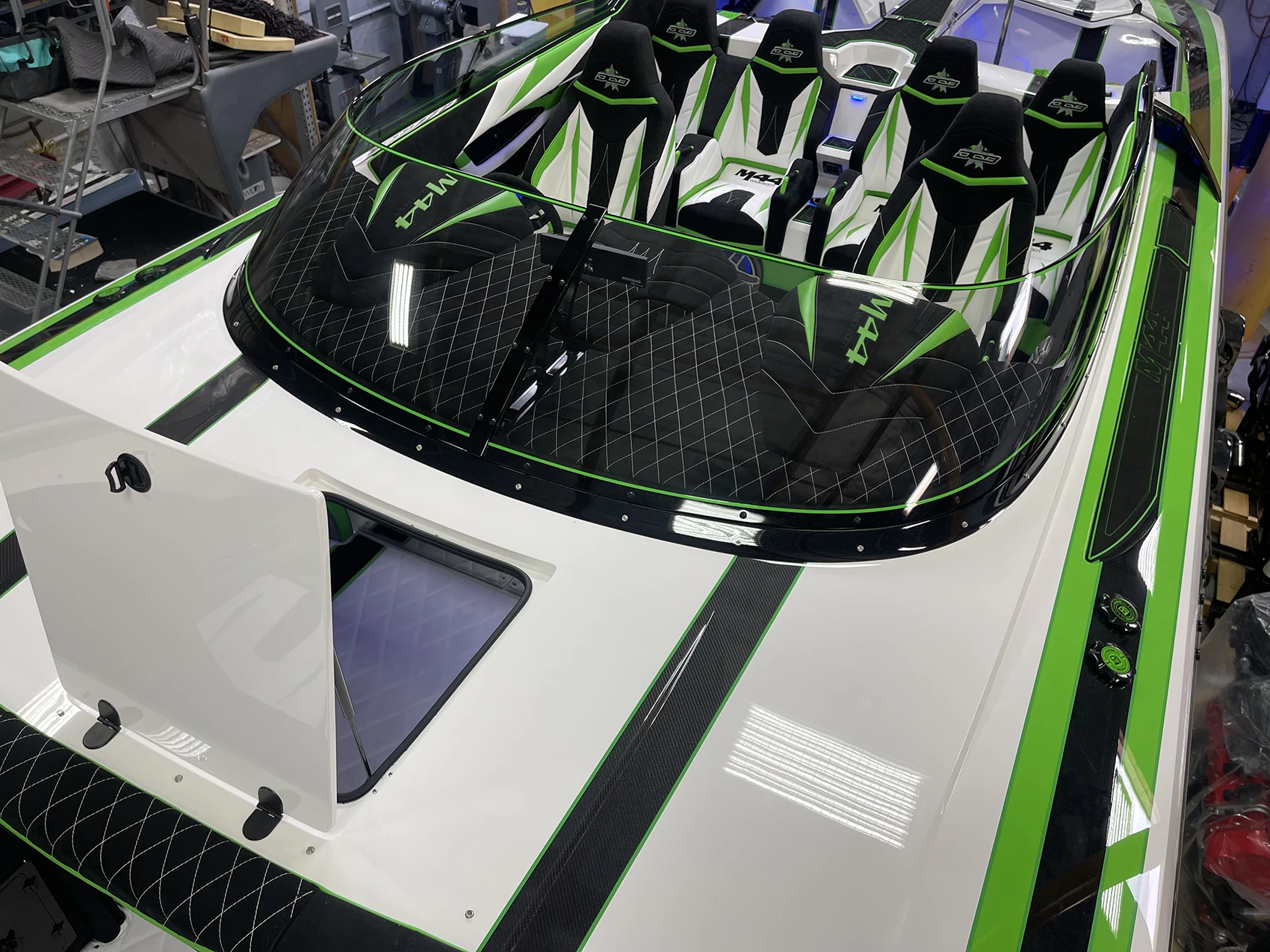

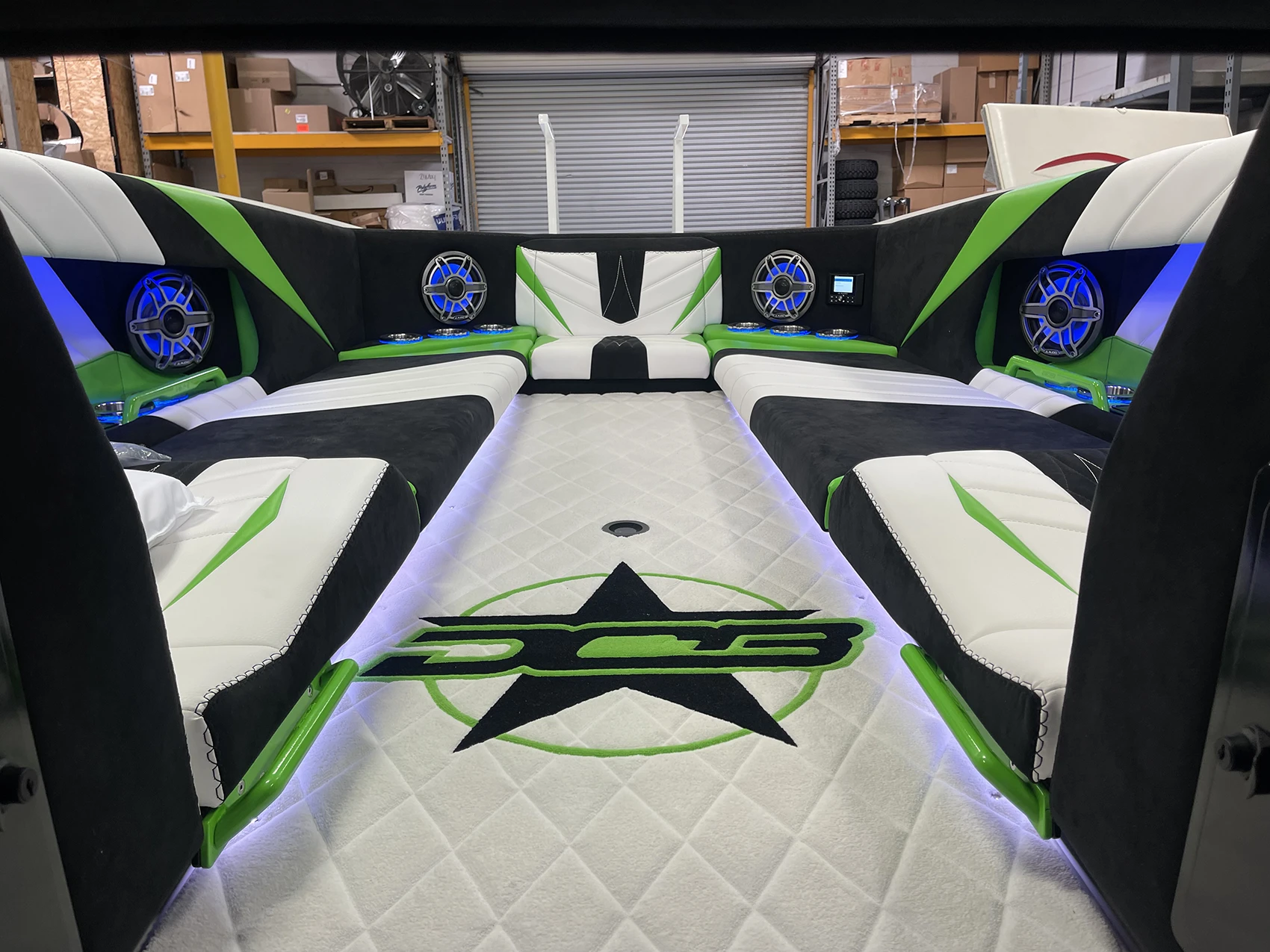

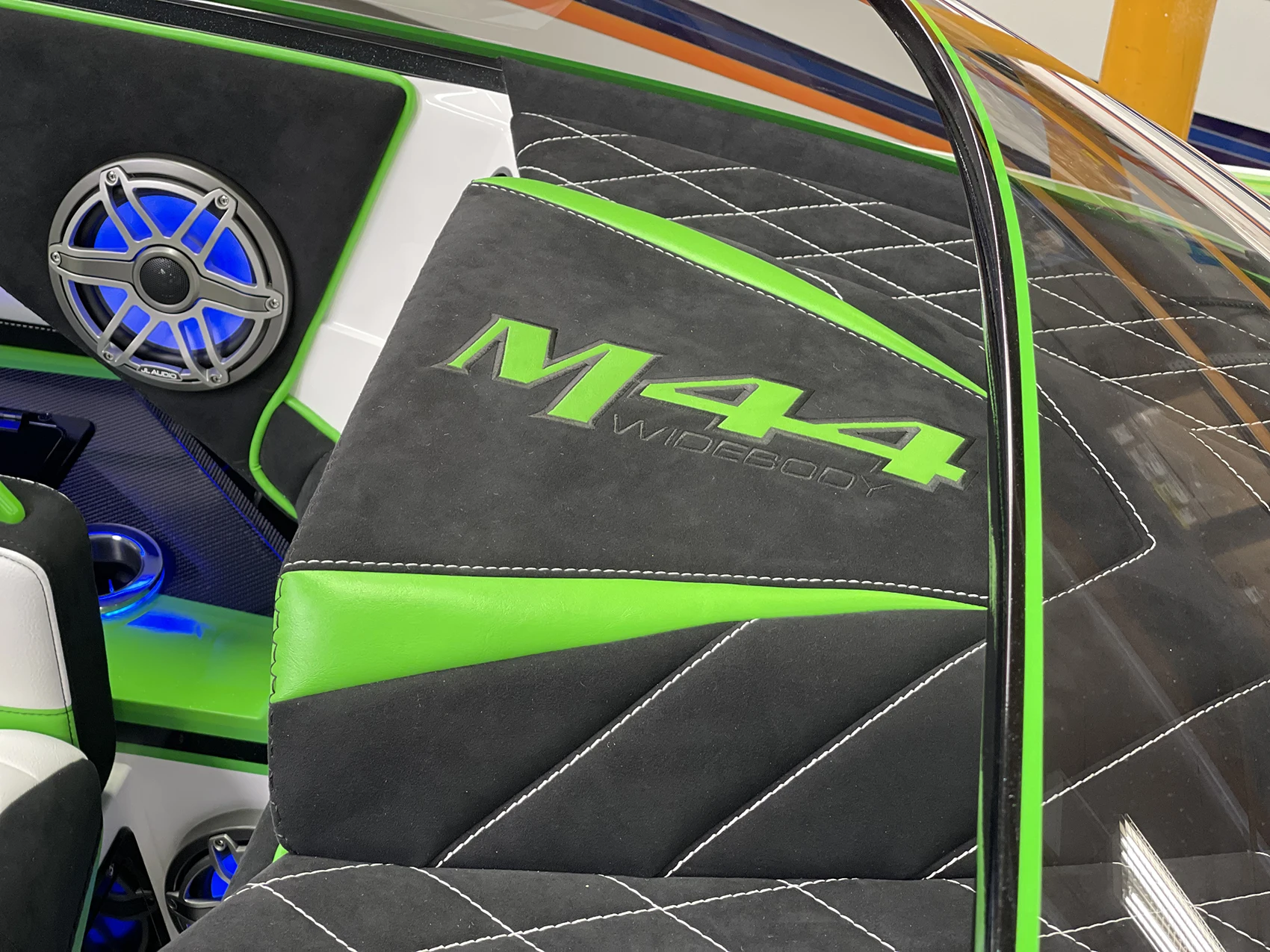

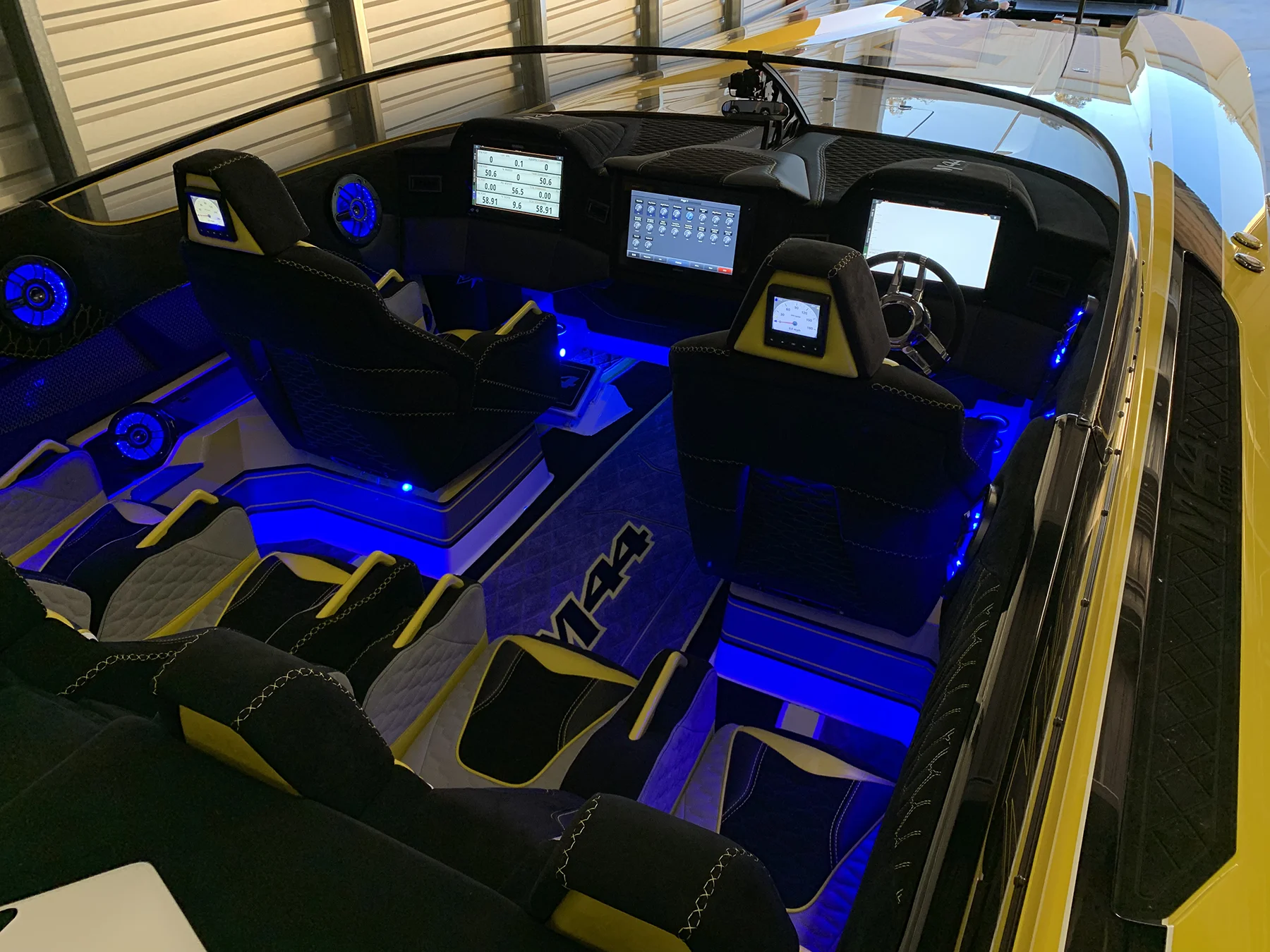

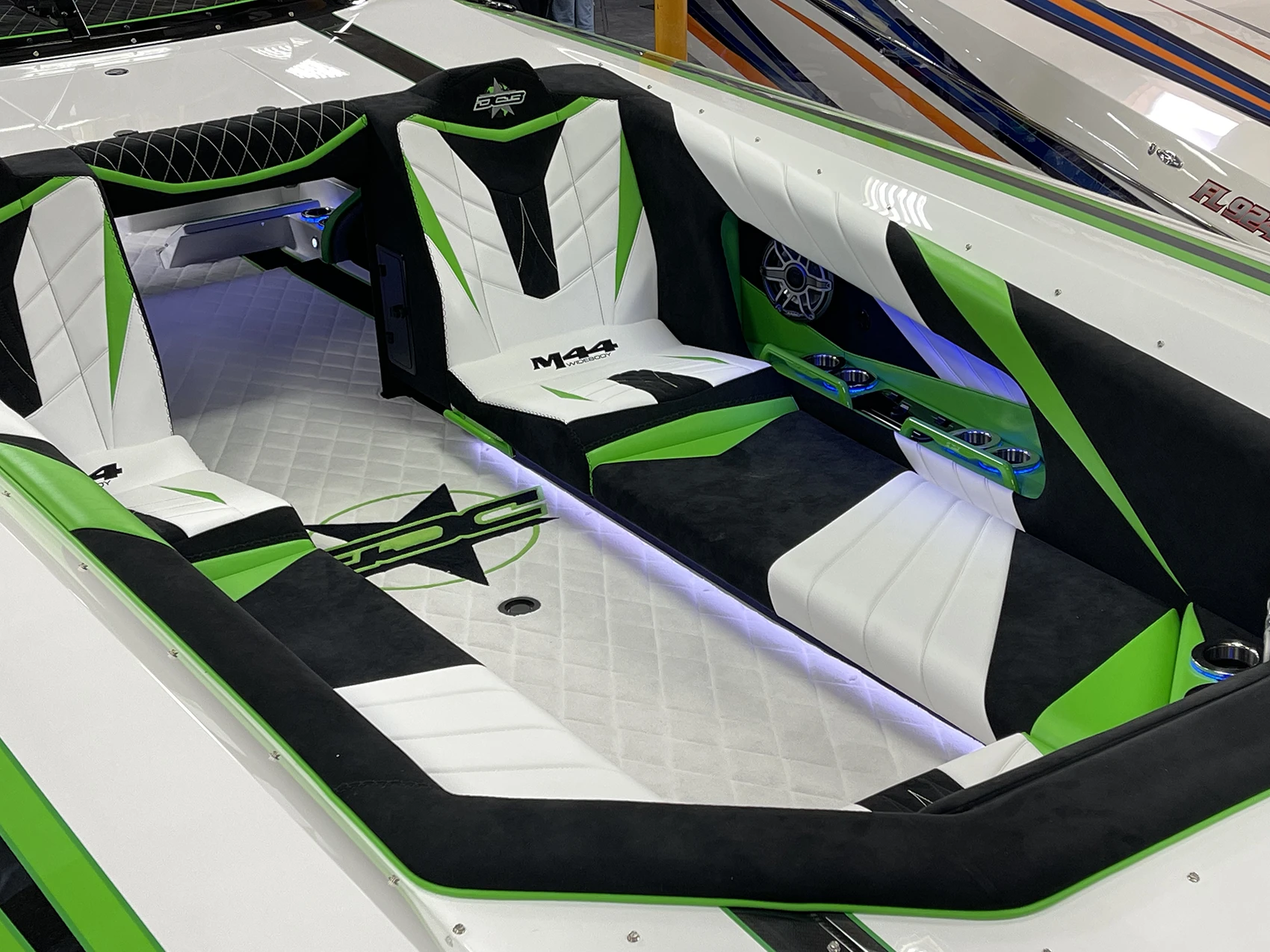

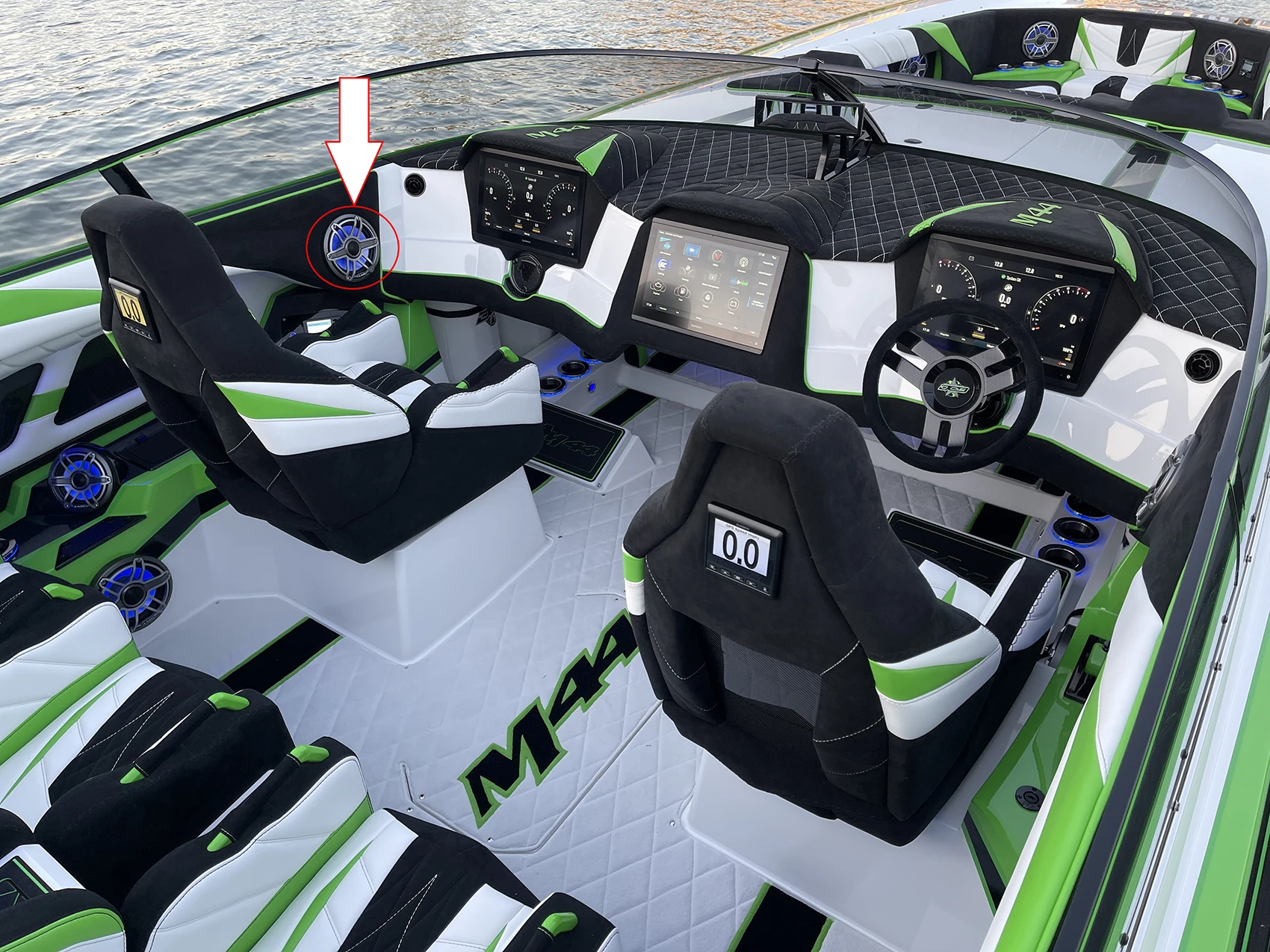

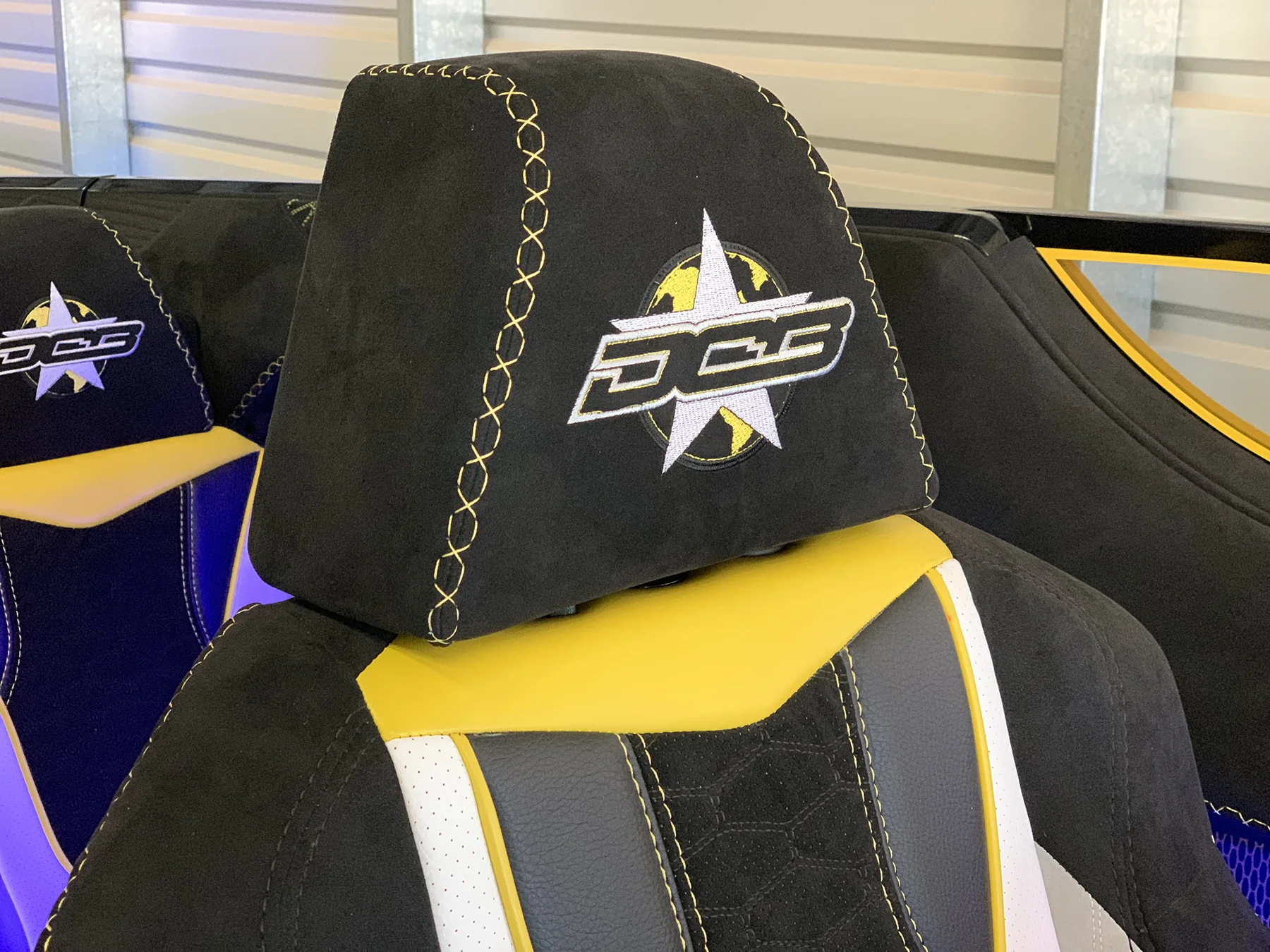

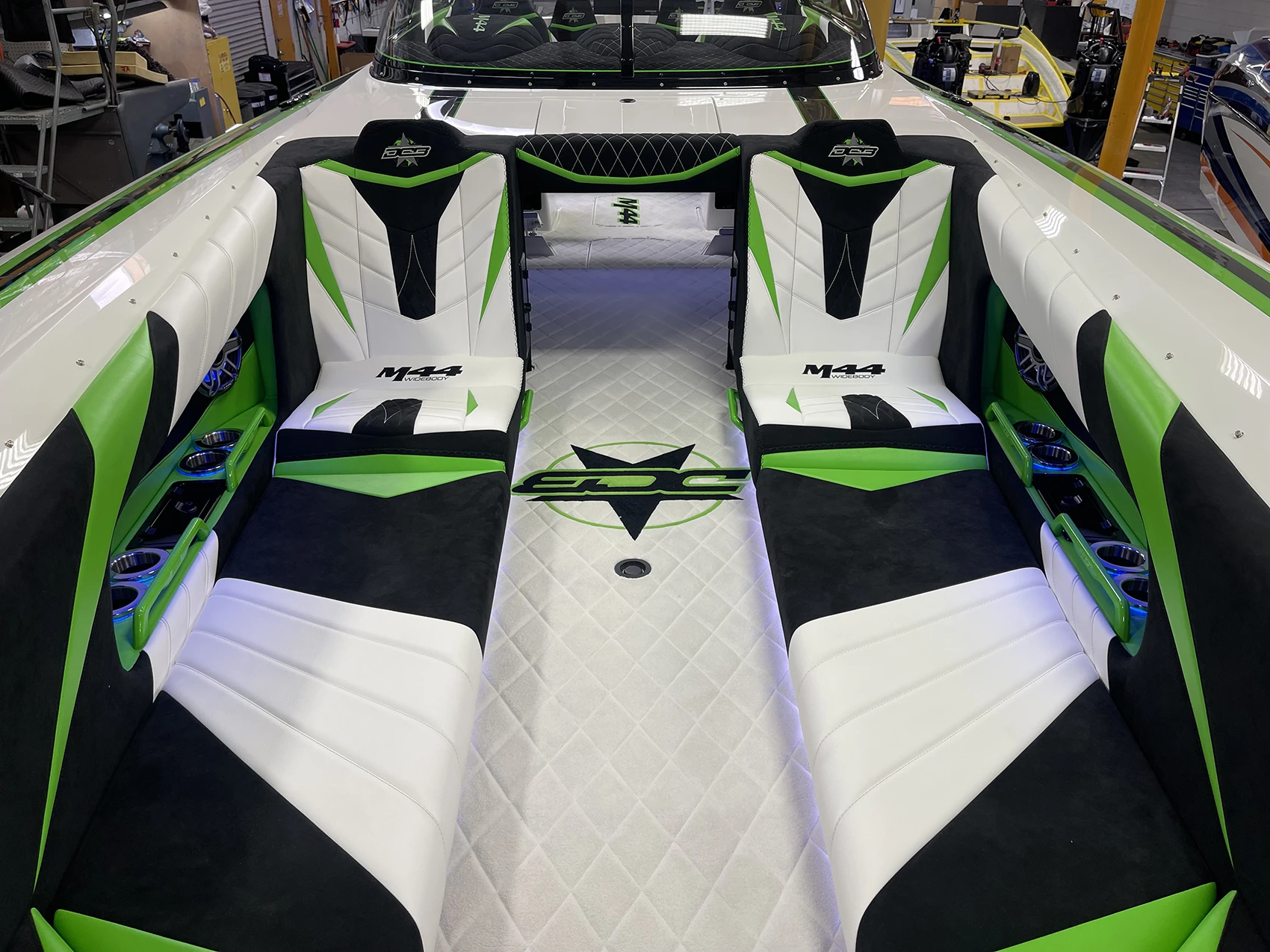

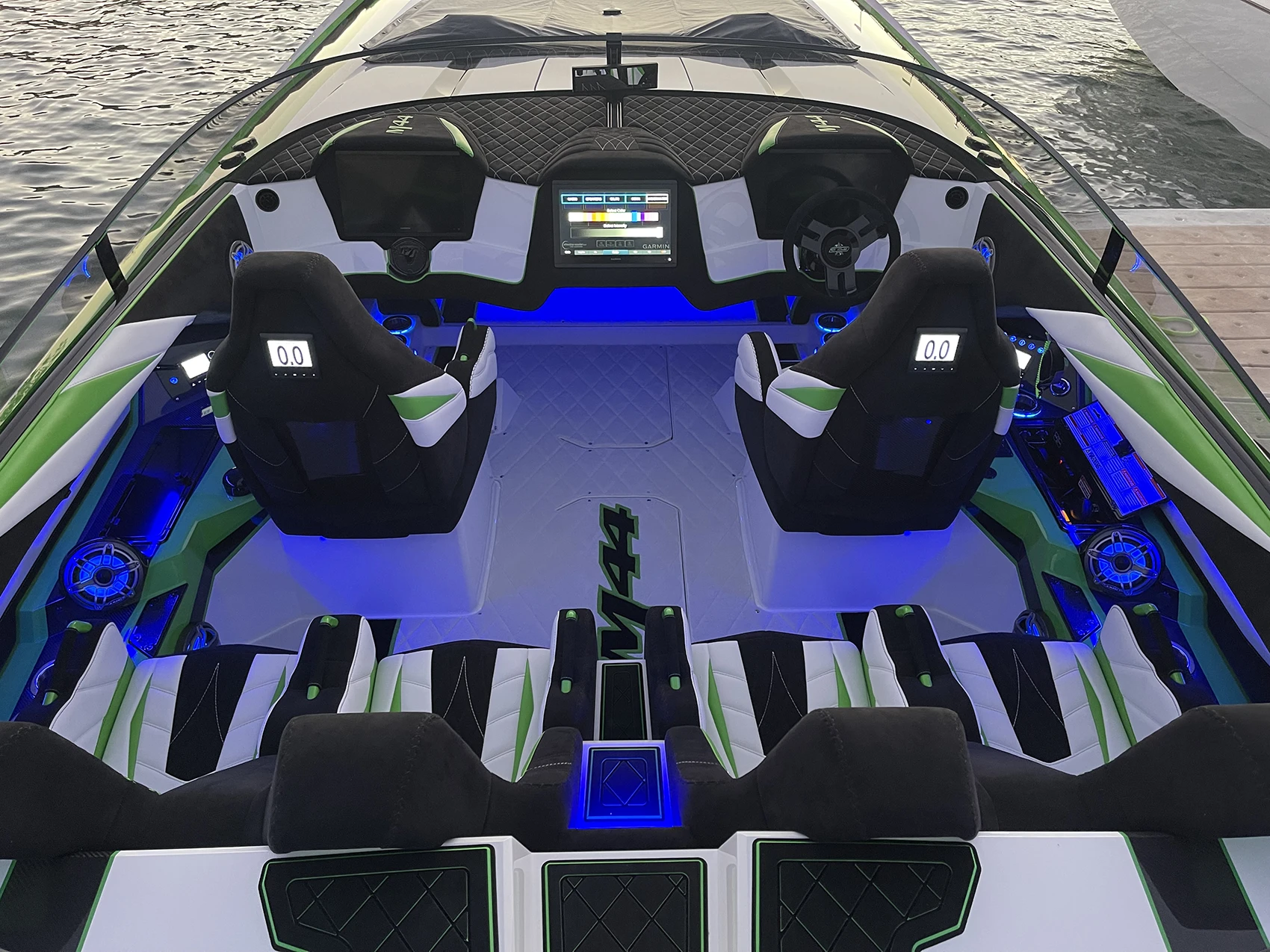

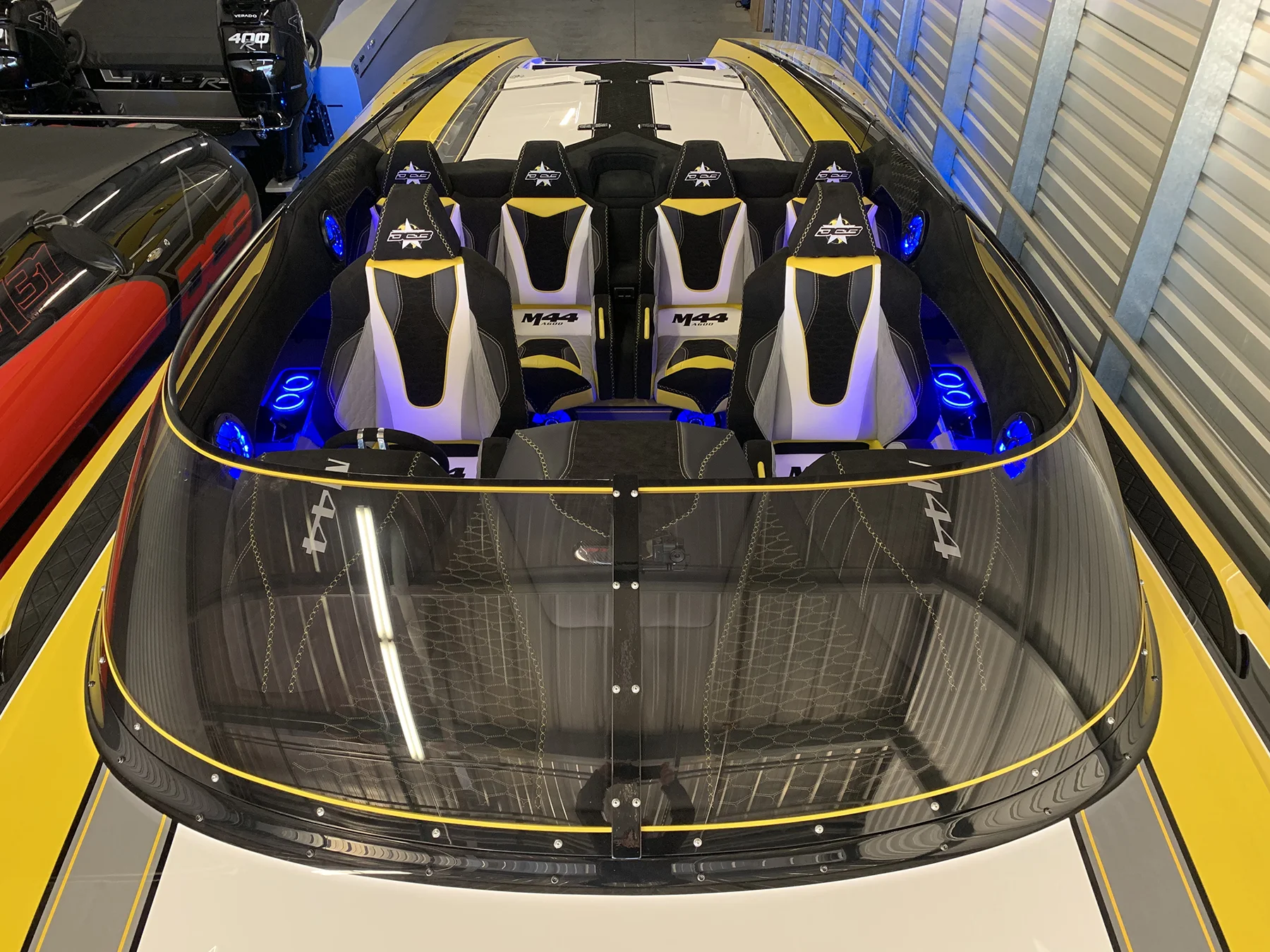

Handcrafted Interior

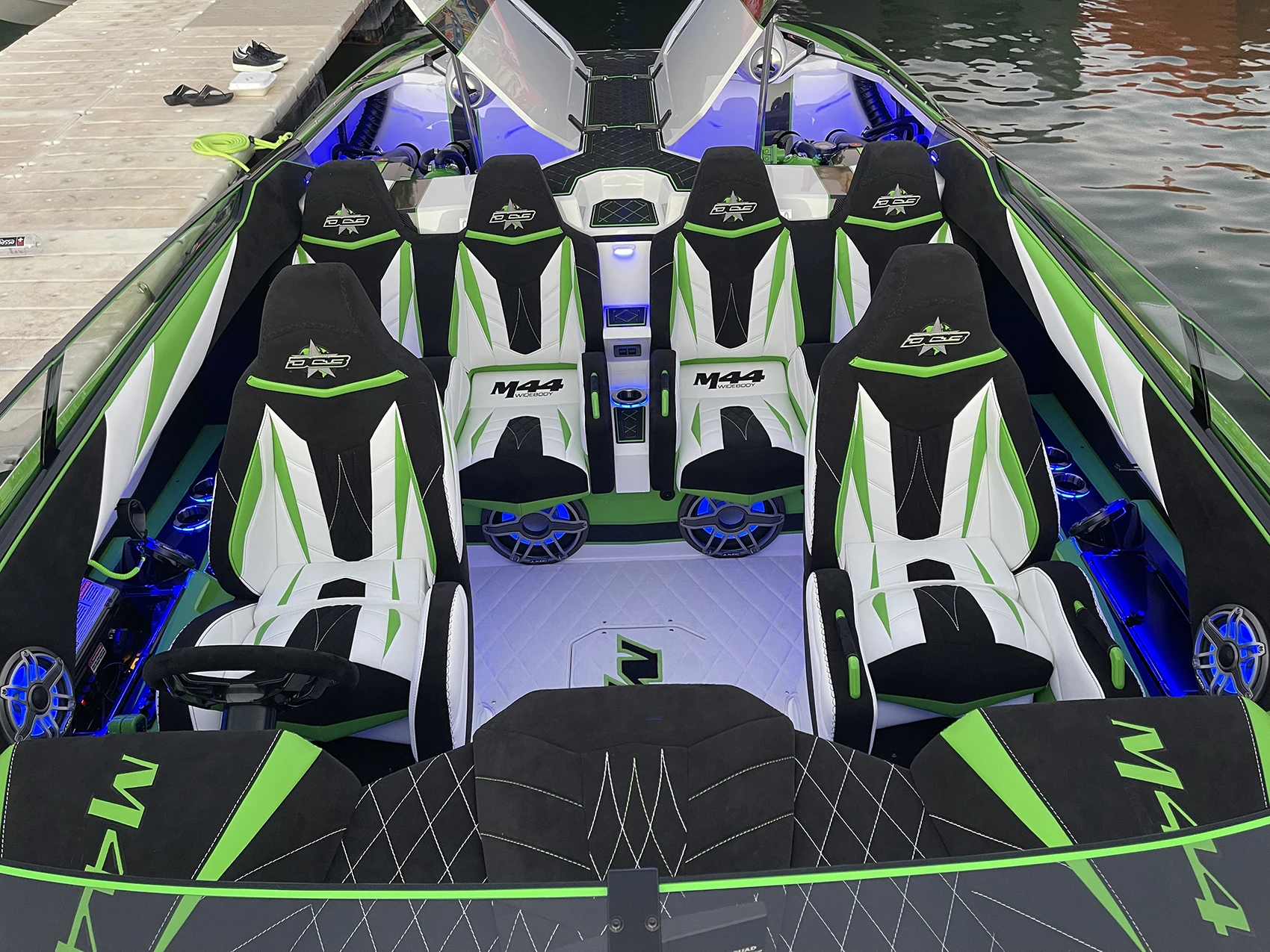

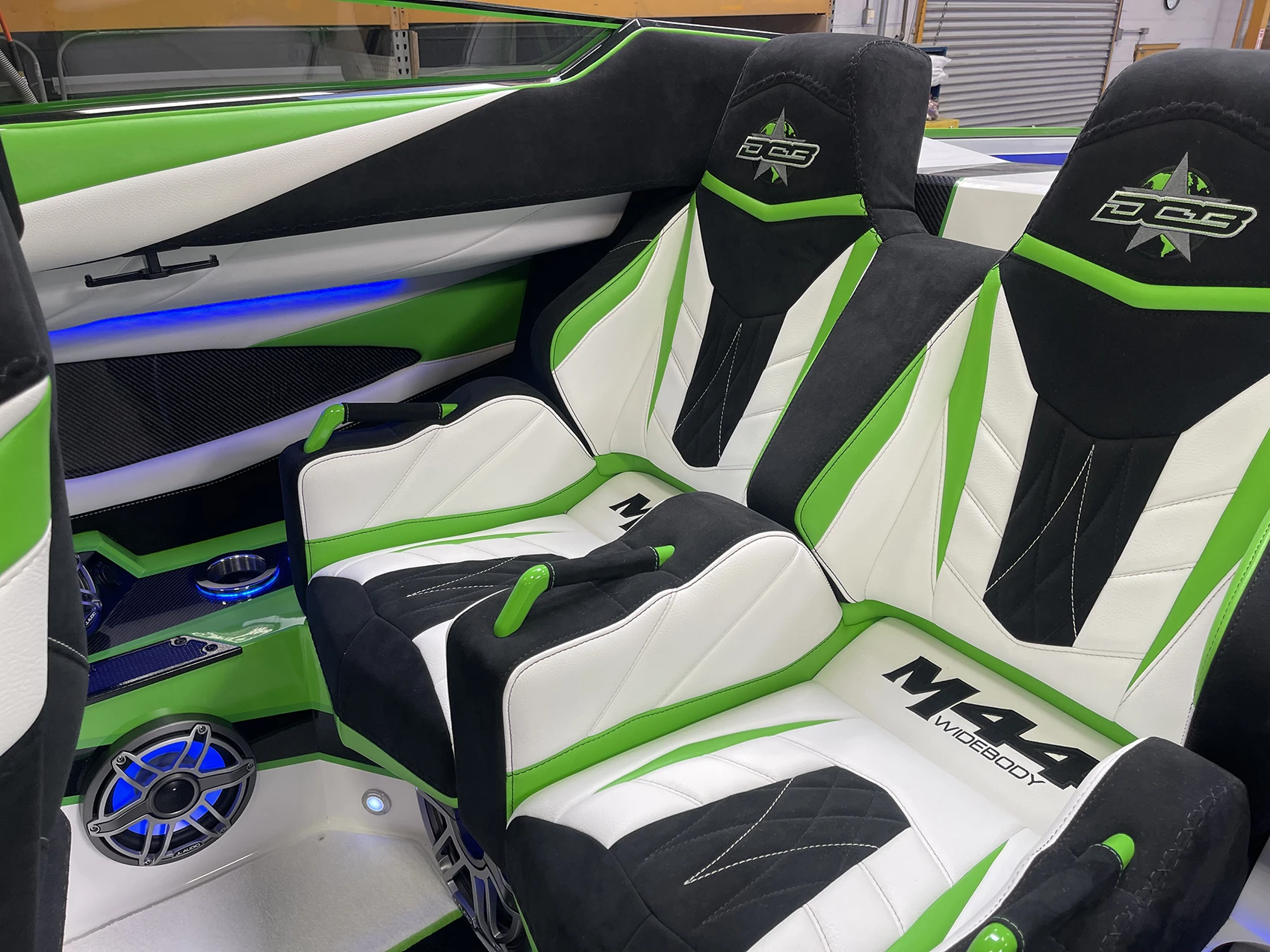

M44 six-seater blends luxury and performance. Power-adjustable bolsters, billet footrests, and an Alcantara dash with French stitching, and custom plush snap-in carpet–every detail designed for comfort and style.

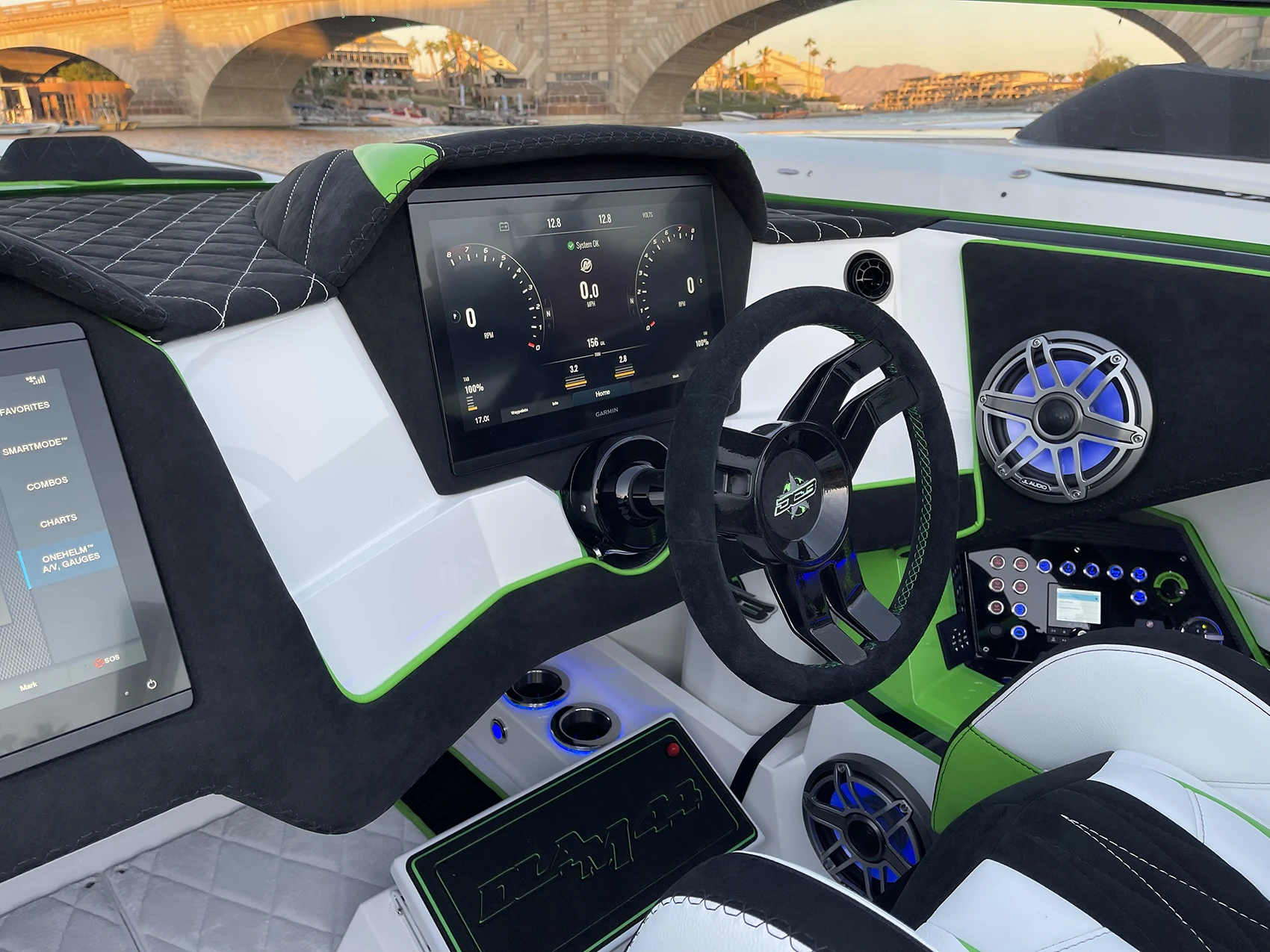

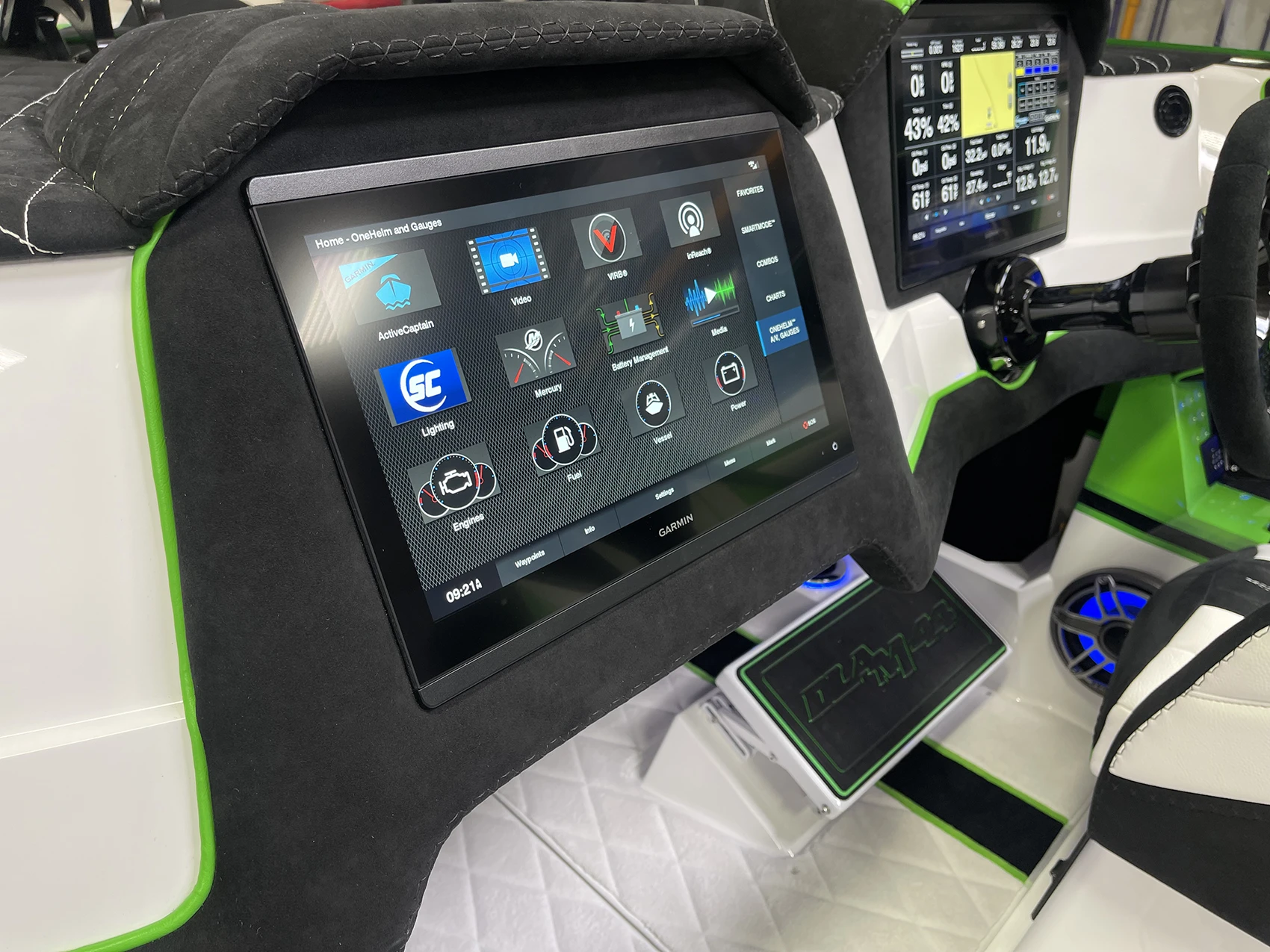

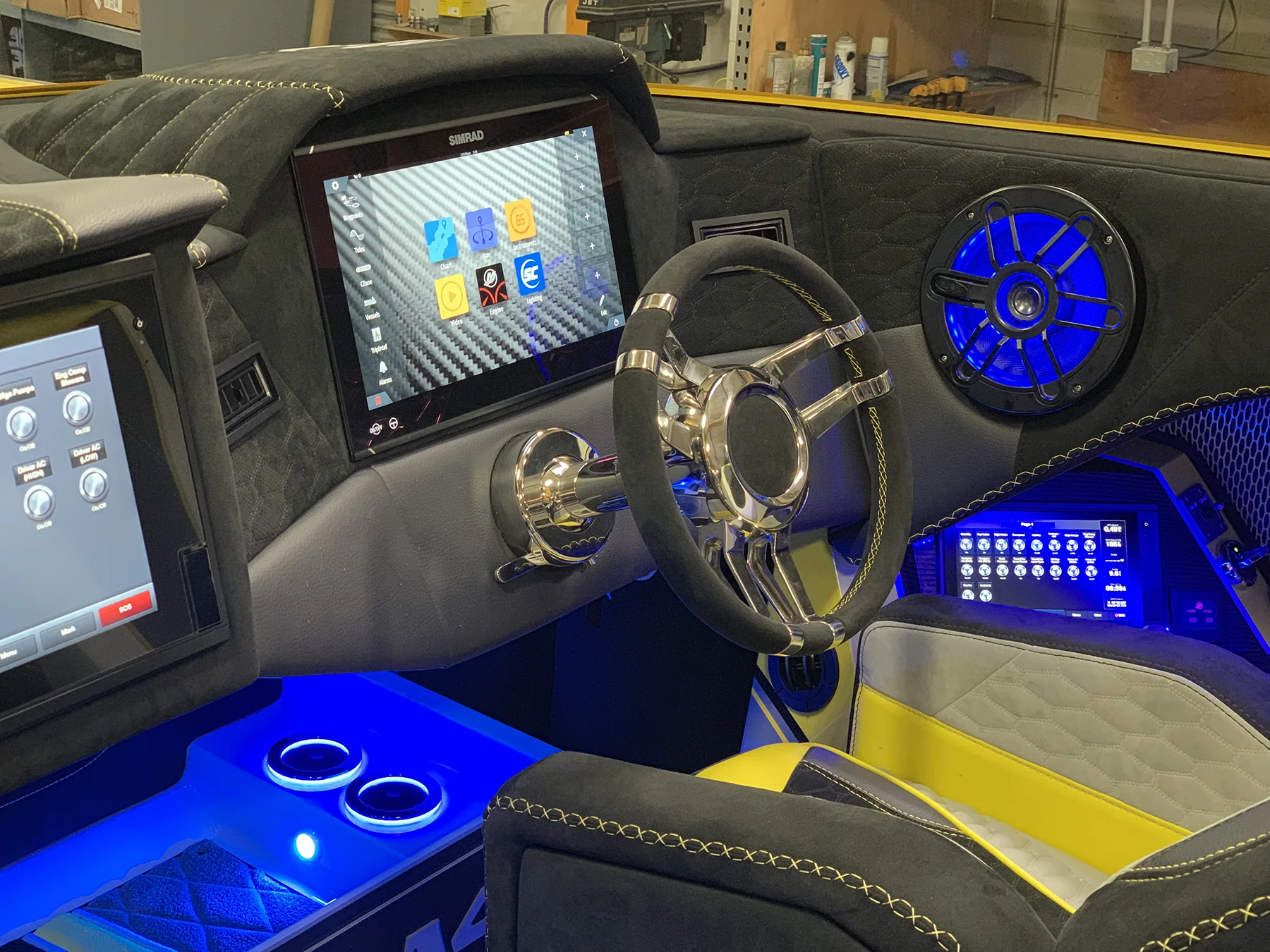

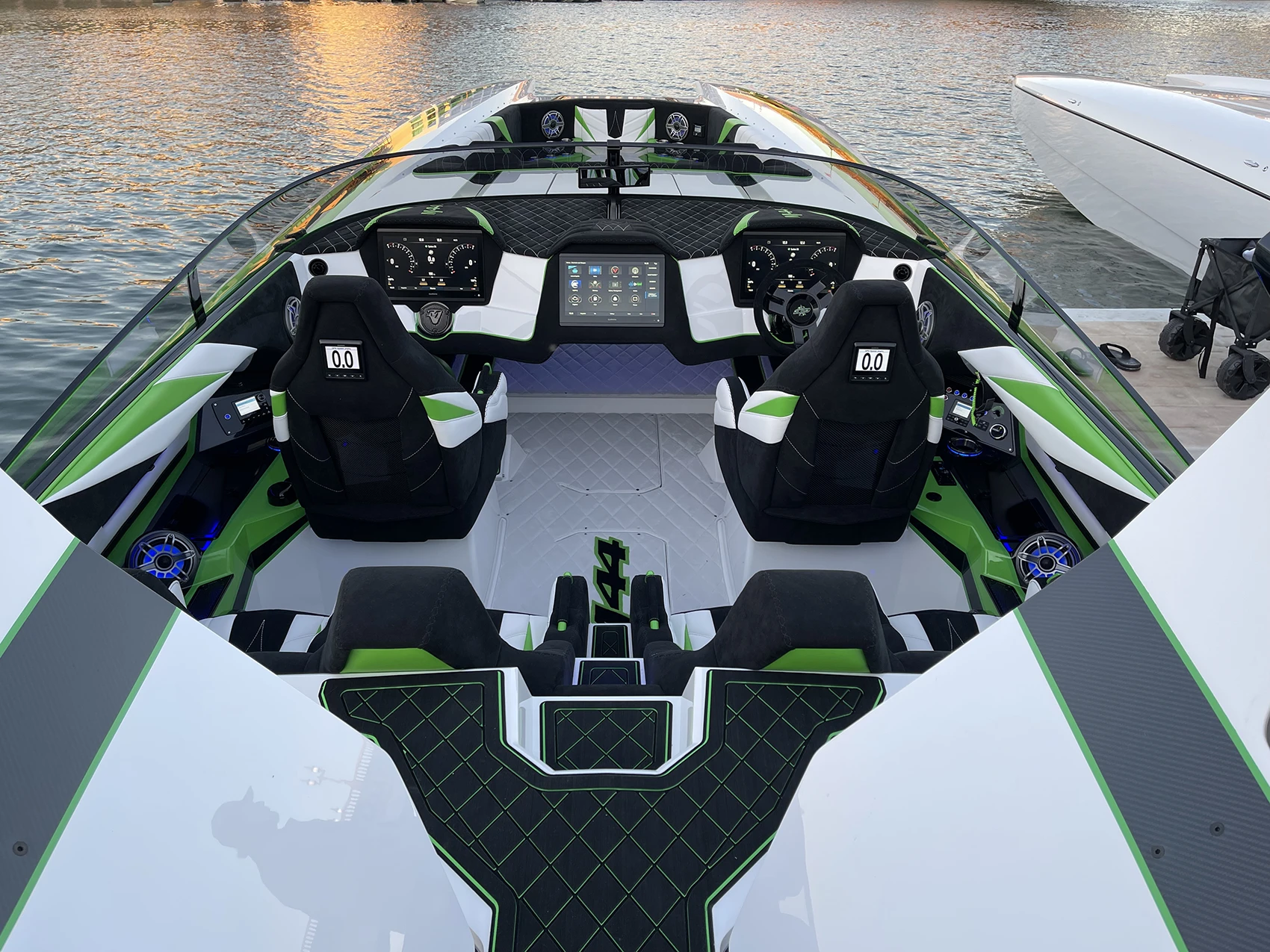

Infotainment
One 7″ Garmin 743 center display, all delivering advanced navigation and engine data. Integrated with Mercury SmartCraft Connect, everything works seamlessly for a refined, intuitive boating experience.
Stereo System
Our Phase 1 stereo system features a Fusion Marine Bluetooth/Wi-Fi head unit and four JL Audio 7.7″ speakers and two JL Audio 6.5” delivering rich, clear sound to match the boat’s handcrafted luxury and performance.
Custom Graphics
We collaborate with Wes Jones Design to deliver custom graphics. Every vessel features a premium gel coat finish with a striking black windshield register, complemented by high-gloss detailing.

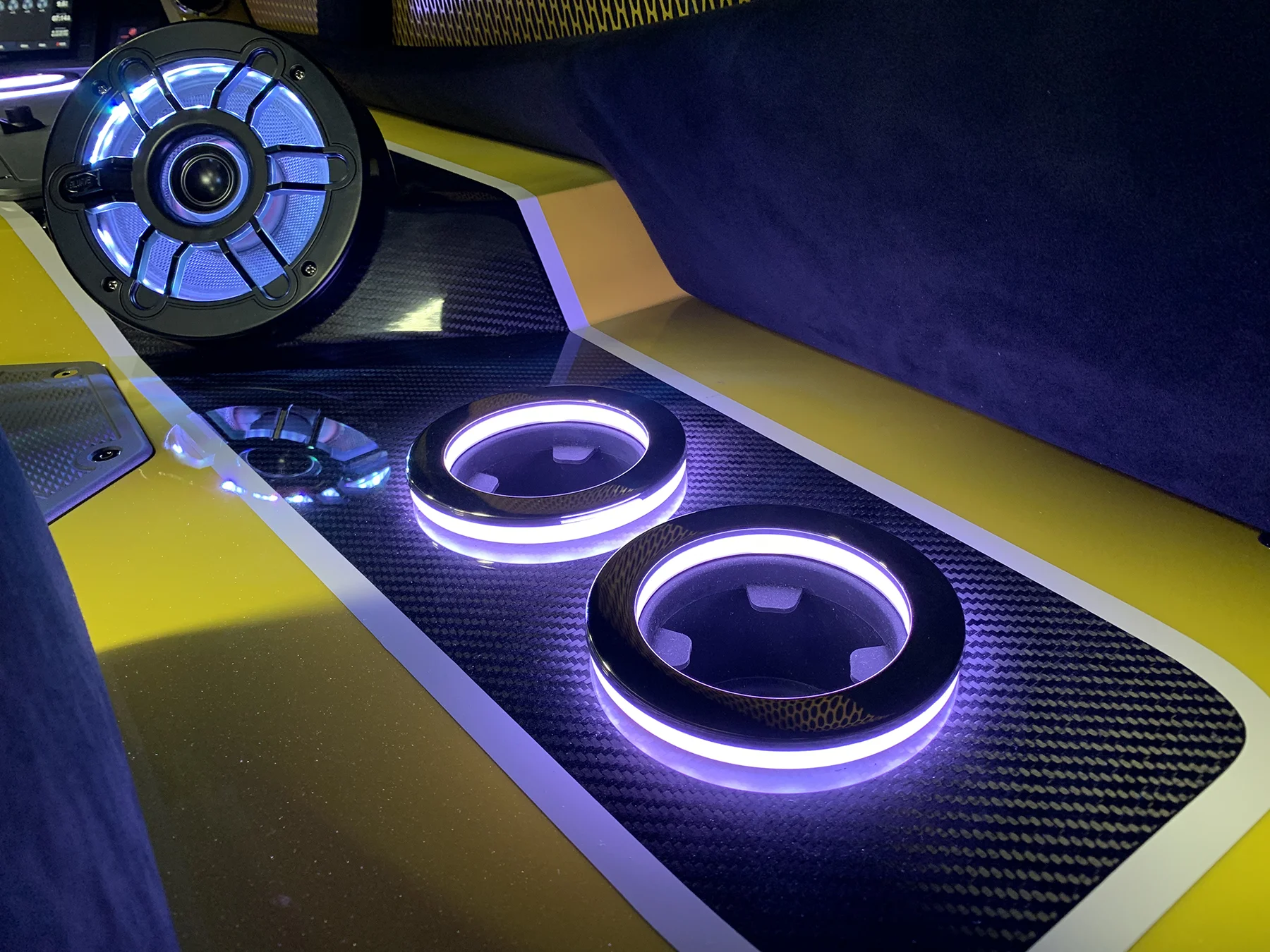

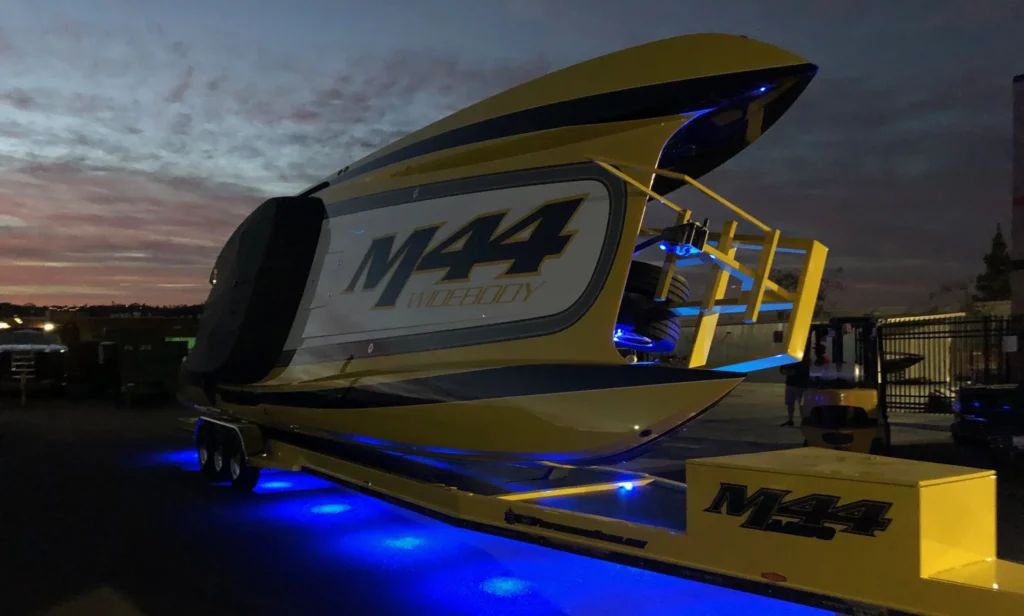

Lighting It Up
Equipped with precision billet LED navigation lights, paired with a sleek nav/anchor light pole for optimal visibility. Full digital RGBW accent lighting under the dash, in cup holders, speakers, and steps, creating an immersive atmosphere both day and night.
Built For Durability
Featuring exclusive DCB billet parts, three 1500 GPH bilge pumps, reinforced SS hardware, and a 5/8βinch thick acrylic windshield—every detail is engineered for strength and reliability.

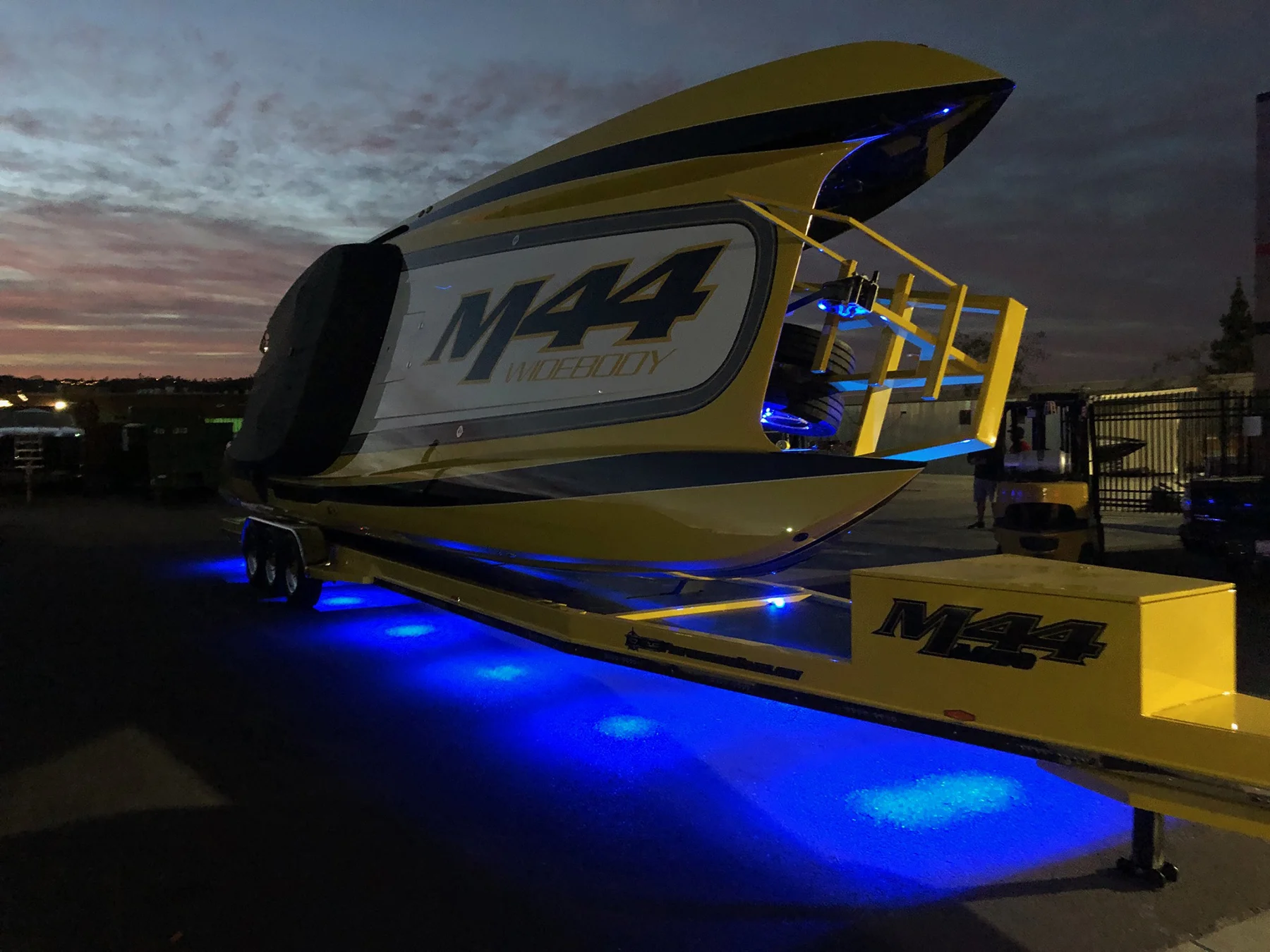

Premium Trailer
Our trailers feature a 10″ steel frame, torsion axles, disc brakes, 16″ aluminum wheels with spare, dual winches, tie-downs, a spare tire mount, and a courtesy ladder for easy loading. Numerous upgrades for both flat and tilt trailers allow you to fully customize to your needs.
Specifications
| Length | 43’10” |
| Beam Width | 10’10” |
| Hull Style | Center Pod Tunnel |
| Cockpit Seating | 6 or 8 |
| Cockpit Width | 89″ |
| Fuel Capacity | 2 x 125-gallon |
| Avg. Weight | 10,000-10,500 lbs |
- Designed in CAD • Class-A surfacing • Plug & mold development built from CNC tooling
- Vacuum infused resin (VIR) process, foam composite lamination schedule
- Full wrap around windshield 5/8″ thick acrylic w/ billet center brace
- Carbon-fiber stiffening – included in M44 pricing
- Carbon-Kevlar – included in M44 pricing
- Foam core – included in M44 pricing
- Gel coated deck hatches with electric hatch actuators
- One piece inner-liner cockpit • Molded swimstep (3-step bustle) w/ billet grab handles
- Blue-printed running surface
- DCB premium quality rigging, installation and workmanship • Rigged to NMMA & USCG standards

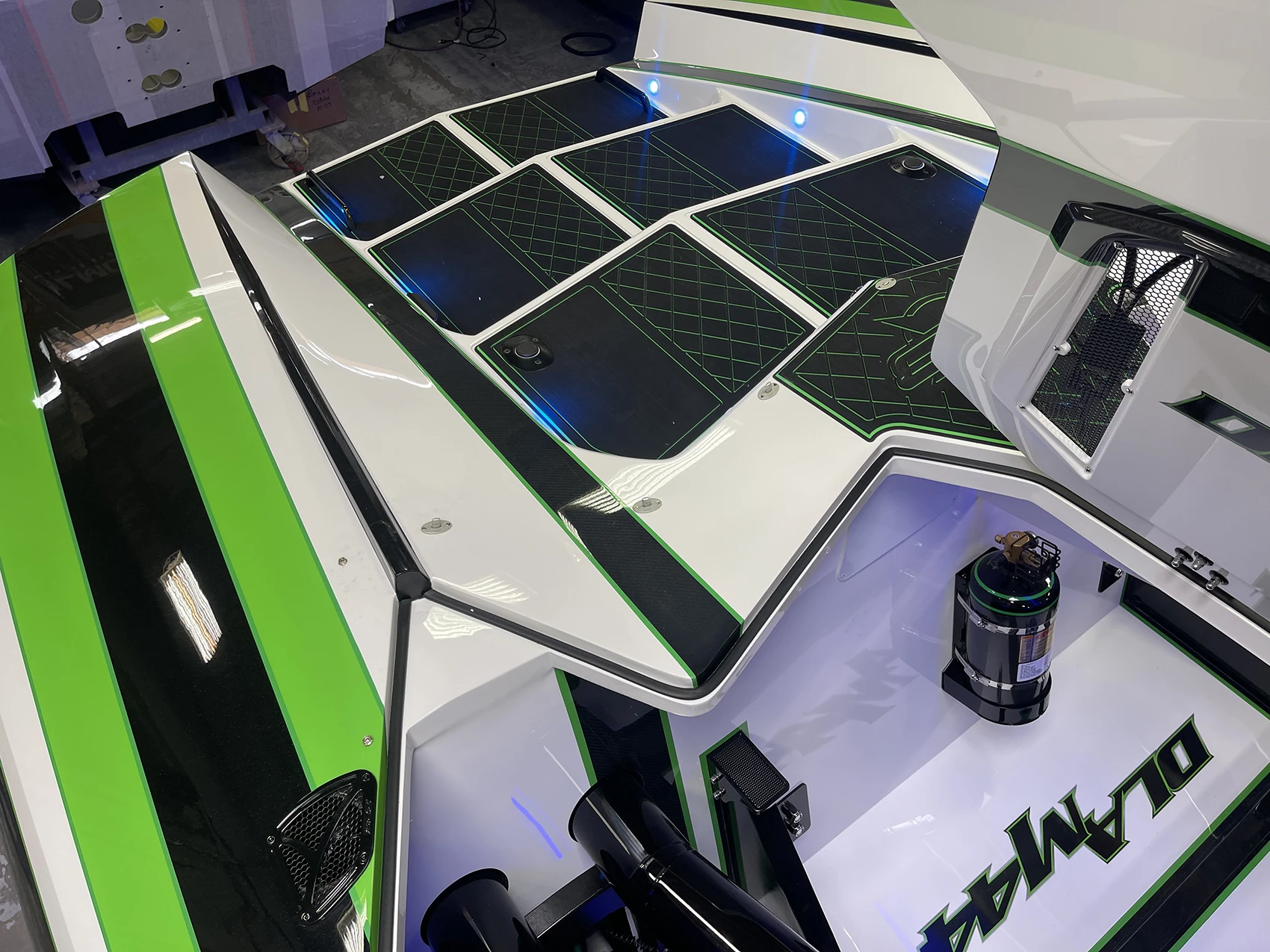

- SeaDek boarding kit and storage flooring kit in black or grey • Polished stainless rubrail
- DCB standard vinyl graphic pkg for boat and trailer, 21 in total
- 3 – 1500 GPH bilge pumps with automatic floats
- 2 – 4″ inch bilge blowers
- High gloss white gel coat with black windshield register • Custom bow and stern half cap
- Wes Jones Design • Gel coat • SeaDek • Interior • Carpet • UP TO 20 RENDERINGS
- Additional design work will be an additional charge
- 2 x 125 gallon IMCO TIG welded aluminum EPA compliant fuel tanks ~ 250 total gallons
- 1 Garmin 743 7″ helm screens multi function for navigation and engine data

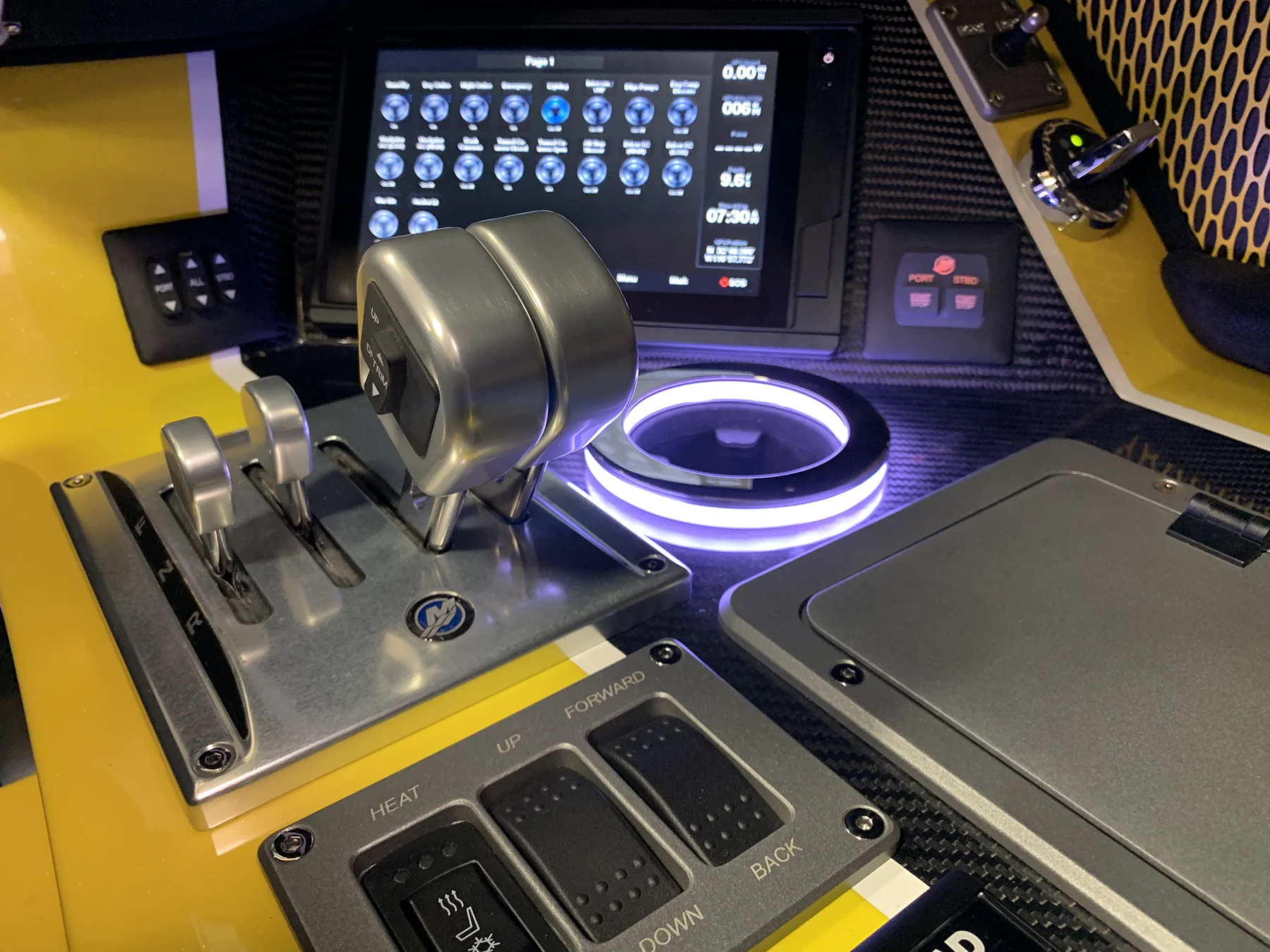

- Mercury zero effort digital controls
- Mercury SmartCraft connect, compatible with all Garmin • GPS 24XD antenna
- Isotta steering wheel • IMCO billet tilt helm

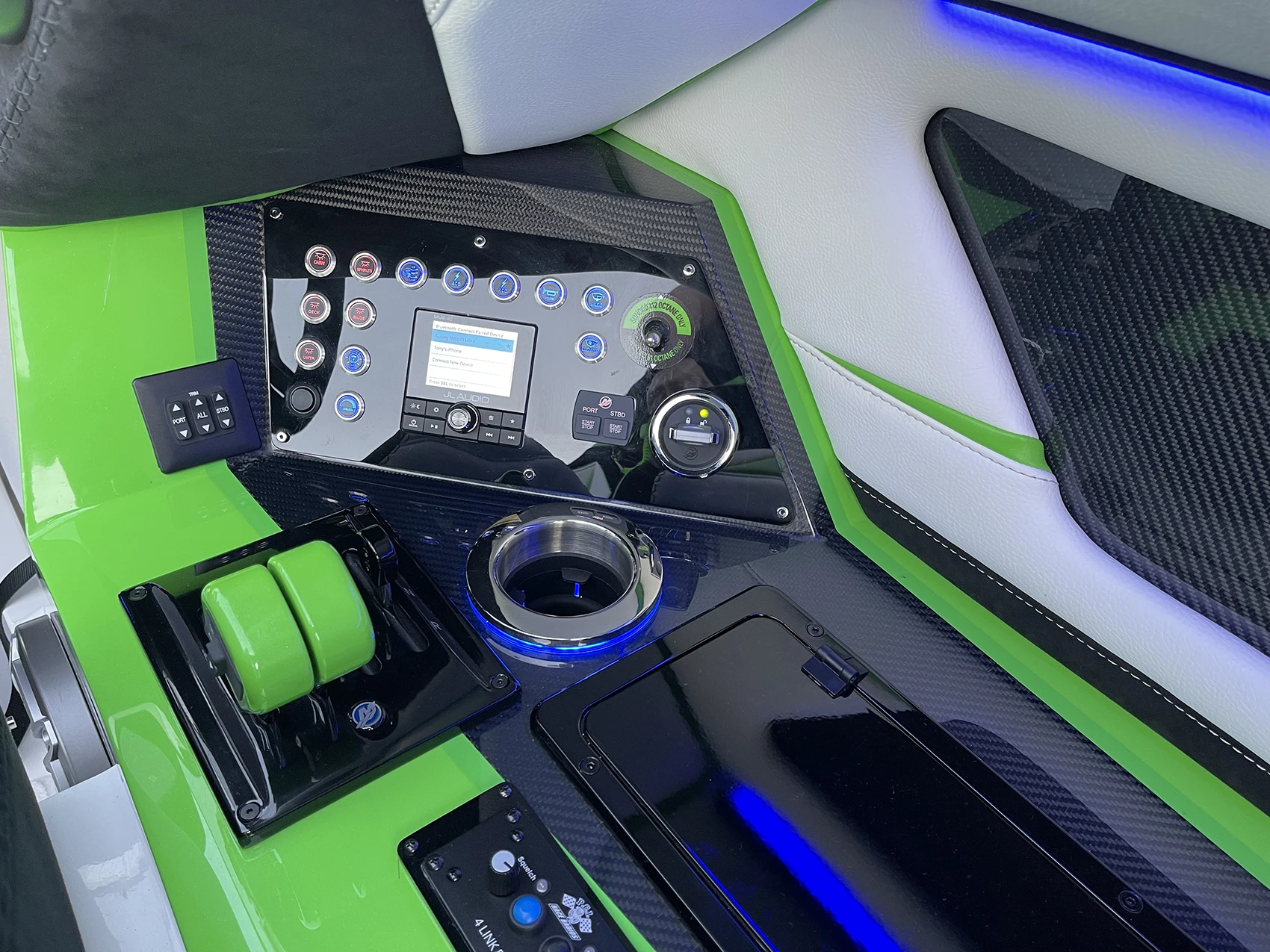

- C-zone switching and digital battery management
- 3 Odyssey 1500 Marine deep cycle batteries, 1 for each engine plus the house
- Pronautic smart marine battery charger
- Billet LED navigation lights (red/green)• Nav/anchor light pole
- Digital RGBW courtesy mood & accent lighting (under dash, combing panels, cup holders, speakers, storage, steps)
- 6 fenders • 6 DCB fender sleeves • 6 dock lines
- Poker run bucket style seating 6 seater
- Fiberglass seatback with one-color gelcoat
- 2 Power adjustable seats with flip up bolster
- Single-piece padded 100% Alcantara dash pad (reduces windshield glare)
- Premium vinyl, French stitching
- Billet adjustable footrests
- Custom plush 1-color snap-in carpet with DCB or M44 logo
- DCB M-series embroidery package
- 1 12-volt receptacle • 2 USB ports • 2 glove boxes
- Exclusive DCB billet parts • 100% hand polished SS fasteners
- 8 SS half-inch pre-sewn pin cleats • 8 SS pull-up cleats • 8 LED cup holders
- 2 DCB prop shaft covers • Garelick 3-step w/ integrated warning sensor
- 1 SS bow eye w/reinforced backing plate • 2 SS stern eyes w/reinforced backing plate
- 3 battery boxes • 2 grab handles
- Phase 1 Stereo unit:
- Fusion marine bluetooth/ Wifi 770 head unit • 4 JL Audio 7.7″ speakers • 2 JL Audio 6.5″ speakers
- 10″ Steel box frame, triple torsion axles and dual electro-hydraulic disc brakes
- 16″ aluminum wheels & tires w/ spare • 2 tie down ratchet straps • NO drive guard
- Steel fenders, standard LED light pkg • Oversize flag/strobe light pkg
- 2 manual winch’s, 1 forward 1 down • Spare tire mount
- 1 hand rail courtesy ladder
- Each new boat purchase includes 1 Lifeline jacket at N/C ($795)
- USCG approved mounted horn • Kill switch lanyard w/ wrist strap
- 2 chrome fire extinguisher with billet bracket • 1 Fireboy extinguisher
- DCB is a proud supporter of www.PerformanceBoatSchool.com
- 2 additional 30 gal fuel tanks for 112 octane – (still 250 gallons total)
- Mercury Racing custom color engines

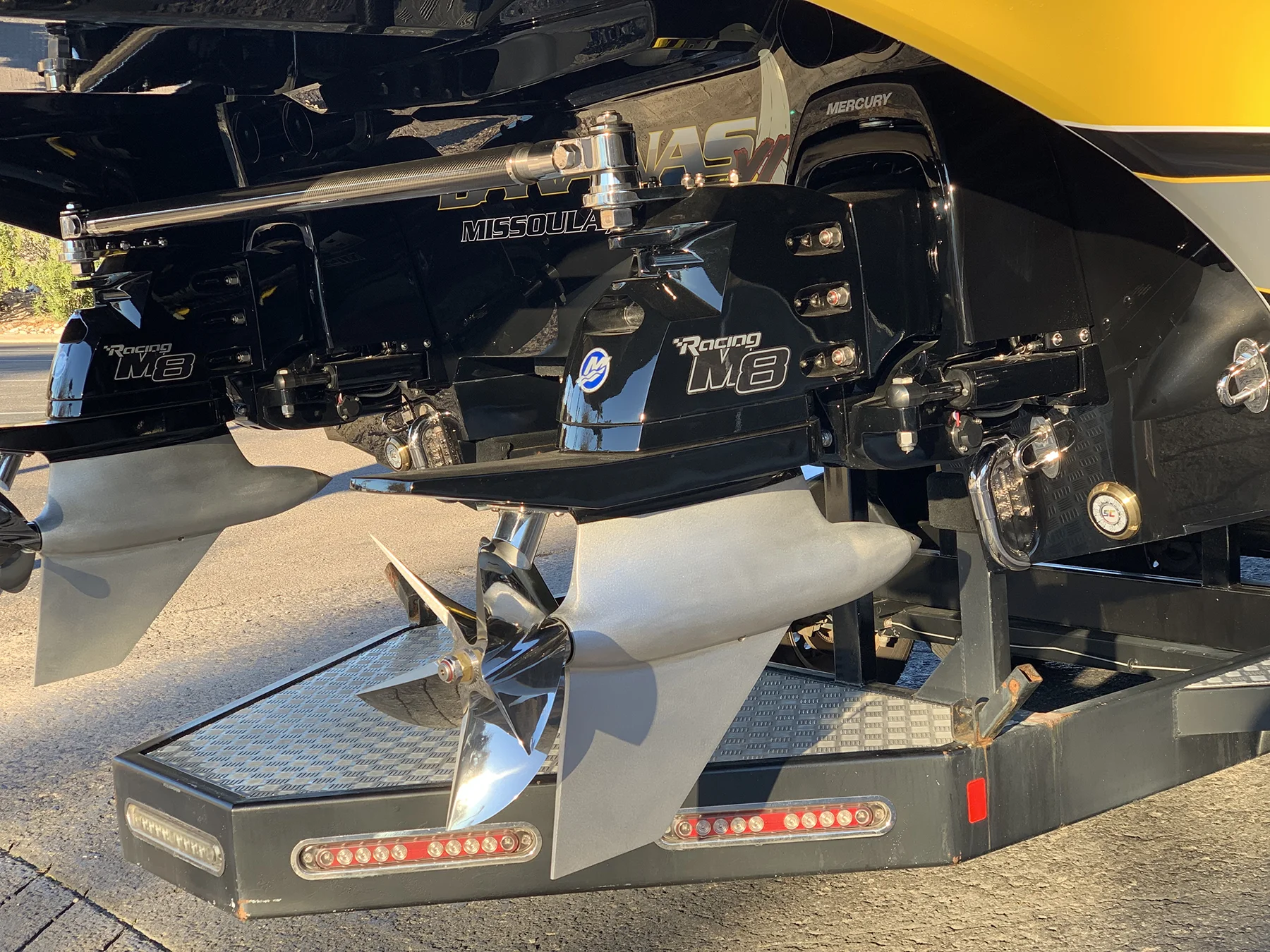

- Wilson CNC machine profiled lower units (including labor and freight both ways)
- Steering wheel upgrade – 100% Alcantara wrapped Isotta wheel
- Mercury CNC over-hub cleaver propeller
- Dual Helm Configuration
- Mercury Racing drive and transom assembly custom color
- Teague drive aerator kit M6
- Teague drive aerator kit M8
- Gel coat design stage #1 one-color non WHITE w/ clearcoat w/stripe
- Gel coat design stage #2 two-color with graphic
- Gel coat design stage #3 three-color (full custom)
- Gel coat design stage #4 high difficulty
- Custom full cap (1 color)
- Custom full cap with color crossing bond line (charge per line)
- Powder coated rub rail (1 color)
- Custom painted rubrail to match Gel graphics
- In gel DCB deck branding, name, model or logo (up to 3 colors or carbon)
- In gel DCB 2x side branding, name, model or logo (up to 3 colors or carbon)
- In gel DCB top of tunnel branding, name, model or logo (up to 3 colors or carbon) visible when boat is on tilt, specify standard or vanity tilt
- Vinyl USCG name and hailing Port
- 8 billet aluminum cleat upgrade black anodized with lasered DCB
- Blackout pkg includes: hinges, latches, handles, helm base, hardware, shower nozzle, shower pick up (combo of paint, powdercoat and cerakote)
- Mercury 2 shifter knobs 2 throttle knobs, black or powdercoat color match
- Billet sand shower front sponson – fresh water use only
- Pull out shower – fresh water use only
- Waterfall rear bustle step – fresh water use only
- Carbon fiber tie-bar cover (tube/sleeve)
- Carbon fiber dash
- Carbon fiber transom
- 2 Side gunnel inside cockpit
- 2 Seat carbon fiber insert (2 front seatbacks)
- Exposed carbon graphics – priced by size and location
- 6-person intercom system w/ VHF Boat-to-Boat (“DCB Channel” )
- Upgrade Garmin 743 to Garmin 943 (2 – 743 include in base price)
- Upgrade Garmin 743 to Garmin 8412 12″ (2 – 743 include in base price)
- Upgrade Garmin 8417 (17″)to Garmin 9222 22″ 4k model center dash
- Rear-view camera mounted on transom (middle) step
- Furuno DT800 through hull depth & water temp transducer
- Upgrade to 3 sodium lightweight battery (reduces weight by 90#)
- 2 Garmin TD50 touch screen digital speedometer, in back of headrest
- Audio-video streaming interface for Wifi 4K (hot spot required)
- Flir night vision camera, displayed on center screen
- 2 LED RGBW under water LED lighting
- 1 LED RGBW tunnel light
- LED – backlit illumination on front seatbacks x2
(PHASE 1 included – Fusion Marine head unit, 4 7.7″ speakers 2 6.5 speakers)
- Phase 1 carbon fiber speaker grill upgrade kit 6 grills
- PHASE 2 includes:
- Fusion marine bluetooth/Wifi head unit
- 1 JL Audio 8-channel amplifier for x8 midrange speakers
- 1 JL Audio 1-channel amplifier for x2 subwoofers
- 4 JL Audio 6.5″ coaxial speaker
- 4 JL Audio 7.7″ coaxial speaker
- 2 JL Audio 10″ M6 subwoofers
- 1 Fusion hard wired stereo control at dash
- Phase 2 carbon fiber speaker grill upgrade kit
- 4th Odyssey battery for all stereo phases with billet Box
- 4th sodium lightweight battery (reduce by 30#)
- Rear speaker Pkg: 2 JL Audio M6-880 pods mounted on underside of engine hatches with additional JL Audio amplifier, powder-coated billet grill
- PHASE 3 includes:
- Fusion marine bluetooth/Wifi head unit
- 1 JL Audio 8-channel amplifier for x8 midrange speakers
- 1 JL Audio 1-channel amplifier for x2 subwoofers
- 4 JL Audio 6.5″ coaxial speaker
- 4 JL Audio 7.7″ coaxial speaker
- 2 JL Audio 12″ M7 free-air subwoofers
- 1 Fusion hard wired stereo control + 1 Additional Battery with Billet Box
- Phase 3 carbon fiber speaker grill upgrade kit
- Upgrade to all sodium light weight battery (reduce by 30#)
- Rear speaker Pkg: 2 JL Audio M6-880 pods mounted on underside of engine hatches with additional JL Audio amplifier, powder-coated billet grill
- PHASE 4 includes:
- Fusion marine bluetooth/Wifi head unit
- 2 JL Audio 8-channel amplifier for x8 midrange speakers
- 1 JL Audio 1-channel amplifier for x4 subwoofers
- 4 JL Audio 12″ M7 free air subwoofers
- 4 JL Audio 7.7″ coaxial speakers
- 4 JL Audio 6.5″ coaxial speakers
- 1 Fusion hard wired stereo control + 1 Additional Battery with Billet Box
- Phase 4 carbon fiber speaker grill upgrade kit 12 grills
- Upgrade to all sodium light weight battery (reduce by 30#)
- Rear speaker Pkg for phase 4 stereo: 4 JL Audio 650 enclosed speakers mounted in rear steps.
- Additional hard wired remote (each)
- Fusion bluetooth puck remote
(Base int: poker run style bucket seats, x8 grab handles, premium vinyl, french stitching)
- Front helm seats ventilation system 2 ea 2 variable speed fan 150/195 cfm w/ 2 vents
- Rear bench seat ventilation system 2 ea 2 variable speed fan 150/195 cfm w/ 2 vents
- Cooled seats
- Cockpit air conditioning
- Upgraded diamond stitching on seats and side panels
- Custom mosiac 3D CNC stitched patterns: Herringbone, Chevron, Double diamond, Hexagon cubes, Step ladder, Half off set, Tetrahedron
- Cool Touch (100%) Material Upgrade
- Alcantara (25%) & Cool Touch premium vinyl (75%) material upgrade
- Alcantara (50%) & Cool Touch premium vinyl (50%) material upgrade
- Alcantara (75%) & Cool Touch premium vinyl (25%) material upgrade
- Alcantara (100%) material upgrade
- Fully lined fore storage compartment w/ trunk material heather gray
- Headliner carpet in 2nd Mid-cabin section (medium grey carpet)

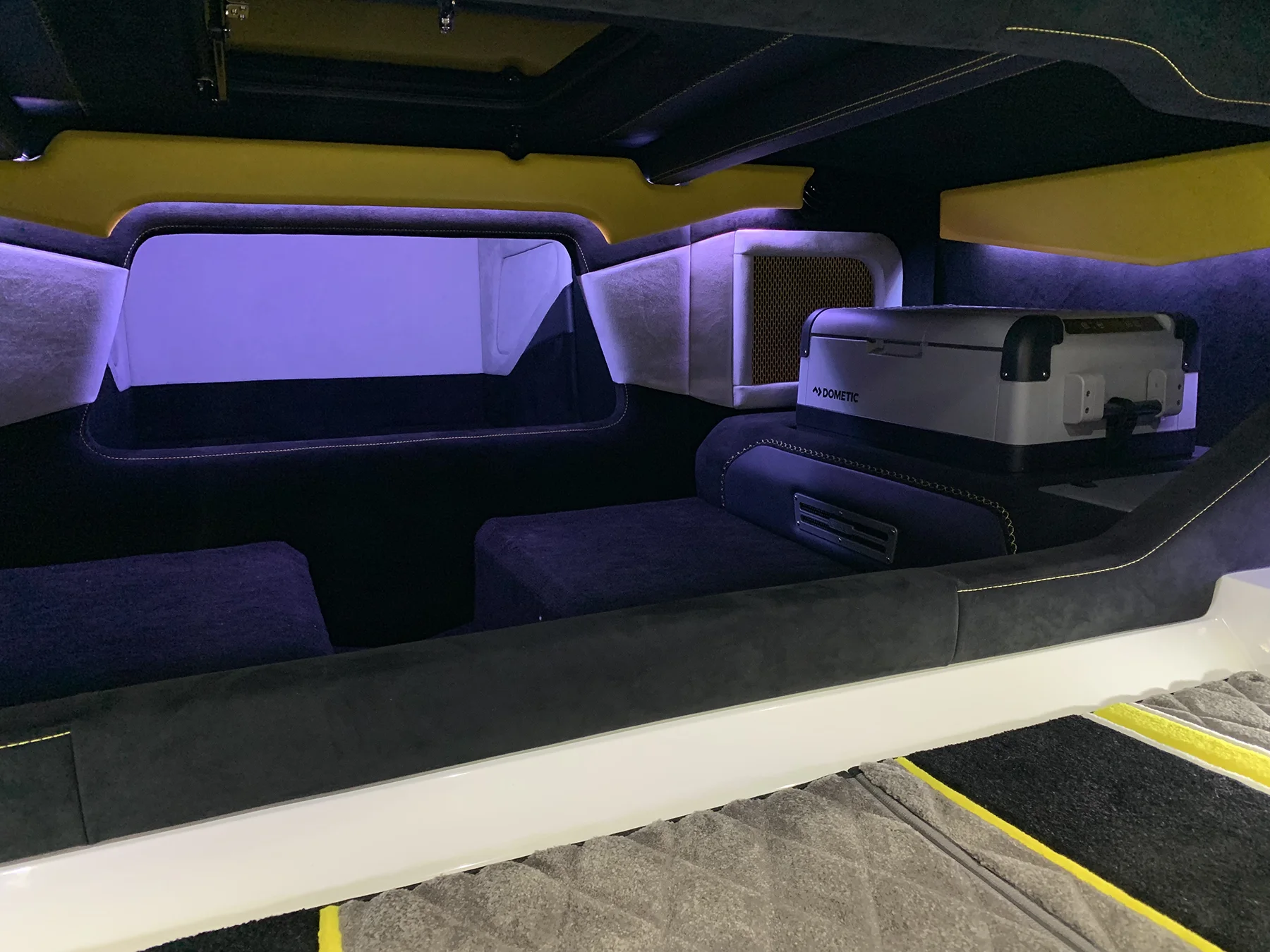

- Furnished under cuddy to match cockpit interior
- Upgraded carpet kit with shaved diamond inserts (3-color)
- SeaDek cockpit kit (3-color) 9mm thickness
- Upgrade to both carpet kit over SeaDek cockpit kit
- 4 pole (carbon-fiber) with oversized canopy feature
- Billet rear-view mirror mounted to window strut
- 2 Umbrella mounts in rear steps w/ Cerakote
- Umbrella mount between front seats
- Each umbrella: includes integrated storage tube
- Poker run 3′ x 4′ carpet dock mat with DCB or M44 logo
- Poker run 3′ x 10′ carpet deck mat with DCB or M44 logo
- Propeller cover (16″ soft cover – pair)
- Propeller case (17″ x 17″ hard case – pair)
- Fortress marine anchor | Size: FX-23 fastened & custom mounted
- Shore spike (size: large)
- Box anchor (size: large)
- Integrated box anchor storage
- Heavy duty centered stern eye for towing w/ reinforced backing plate
- Additional custom color match LIFELINE VICTORY sport vest (each)
- USCG Kit – 4 PDFII life vests in throw bag, horn, fire ext, throw cushion
- EPIRB locator beacon
- Marine Concepts cockpit cover (with snaps) black or gray
- Marine Concepts soft dust cover black or gray
- Marine Concepts travel cover w/ integrated installation straps black or gray
- Low profile Bimini 2 color w/ mesh center section
(Base includes tandem-axle with 16″ rims)
- Adrenaline – DCB Upgrade pkg to base ADRENALINE Trailer – Includes: 18″ rims, premium paint, oversized double handle front courtesy ladder with LED lighting and SeaDek,15″ LED running & brake lights, DCB drive guard painted fenders, etc.
- Triple axle
- MYCO
- Myco tri axle aluminum unpainted trailer 12″ welded C channel
- Upgrades
- 18″ wheel and tire upgrade
- 20″ wheel and tire upgrade
- Upgrade to clear coat aluminum
- Upgrade from unpainted to black bloss paint
- Triangular end drive guard
- 12×106 steel fenders
- Custom fender steps with 15″ LED and SS housings
- Double handle courtesy ladder w/ SeaDek
- LED running light package
- LED runway loading light package
- LED under carriage lighting package (under frame)
- Electric jack (5,000lb)w/ battery
- Hydraulic jack
- Electric winch w/ battery
- Chip guard (clear 3M film applied to front of main frame)
- TILT upgrade (galvanized steel-painted includes-5 extra bow/stern eyes with ratchet straps
- Battery charger
- Gooseneck package
*Final pricing may vary based on custom features, optional equipment, materials, vendor price changes, and other factors. Additional charges may apply. Please contact DCB for a personalized quote.
DCB Signature Lamination Technologies
DCB PerformaLamTM
PerformaLam features our exclusive Vacuum Infused Resin (VIR) technology combined with a high-performance blend of bi-axial E-glass, Kevlar, high-density balsa, and other proprietary materials. This process ensures consistent resin saturation and complete air removal, resulting in a strong, rigid, and precisely engineered hull.
Slightly heavier than AeroLam, PerformaLam delivers exceptional structural integrity, impact resistance, and overall value. It is a purpose-built solution designed for dependable, high-speed performance with confidence and control.
Every PerformaLam hull is a testament to DCB’s commitment to advanced engineering and meticulous craftsmanship, purposefully built for those who demand performance without compromise.
CUSTOM
Precision
At DCB, every boat is a masterclass in engineering excellence. Our proprietary Vacuum Infused Resin (VIR) process ensures perfect material saturation for unmatched strength, rigidity, and weight savings—far beyond conventional vacuum bagging. Backed by composites engineers and crafted by the industry’s finest, each DCB hull combines advanced materials into a structure that redefines performance. This is construction at its highest level—where innovation meets obsession.
VIR Technology Advantage
Composite Expertise
Built with Obsession
Unrivaled Engineering
Built By Hand
Every aspect of the M44—from its sculpted lines to its uncompromising build quality—reflects DCB’s relentless pursuit of excellence. Hand-assembled by a team of experts, each boat is the result of careful design, precision execution, and an unwavering standard for fit and finish. From hull layup to hardware installation, every step is performed with the kind of attention that only comes from decades of experience.
More than just a performance machine, the M44 represents the art of modern boatbuilding. Materials are chosen not just for strength and weight, but for how they contribute to balance, longevity, and visual impact. The result is a catamaran that delivers both high-performance capability and a level of refinement that’s immediately felt—whether at speed or at rest.
@DCBRACING
